Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Super Record -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Rim
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca Aero carbon OMR, monocoque construction,tapered 1-1/8" - 1,5", BB 386mm, powermeter compatible, internal cable routing, EC/DC compatible.
Suspension Fork
Orca Aero OMR carbon fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts
Drivetrain
Rear Derailleur
Campagnolo Super Record
Front Derailleur
Campagnolo Super Record
Shift Levers
Campagnolo Super Record
Cassette
Campagnolo Super Record 11-29 12-Speed
Crank
Campagnolo Super Record 34x50t
Bottom Bracket
386EVO, 86mm, press-fit
Chain
Campagnolo Super Record-12
Pedals
N/A
Wheels
Rims
FULCRUM Racing Quattro Carbon
Tires
Vittoria Rubino Pro 700x25 120TPI G+
Brakes
Brakes
Campagnolo Direct mount
Cockpit
Stem
FSA Metron 5D Compact Hanlebar intregated
Handlebar
Vision Metron 5D Compact
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Prologo Dimension T4.0 size143 mm
Seatpost
Orbea Aero OMR
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.36 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm |
| Front Center | 573 mm | 577 mm | 581 mm | 582 mm | 593 mm | 602 mm | 616 mm |
| Rake | 48 mm | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 65 mm | 62 mm | 57 mm | 59 mm | 57 mm | 57 mm | 57 mm |
| Stack | 500 mm | 509 mm | 527 mm | 547 mm | 566 mm | 584 mm | 610 mm |
| Reach | 369 mm | 374 mm | 379 mm | 384 mm | 390 mm | 397 mm | 403 mm |
| Top Tube Length | 508 mm | 520 mm | 533 mm | 546 mm | 558 mm | 574 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 450 mm | 465 mm | 490 mm | 515 mm | 535 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.2 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 100 mm | 108 mm | 124 mm | 144 mm | 163 mm | 181 mm | 208 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 969 mm | 973 mm | 977 mm | 979 mm | 990 mm | 999 mm | 1013 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 739 mm | 751 mm | 772 mm | 796 mm | 815 mm | 833 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
Model Overview

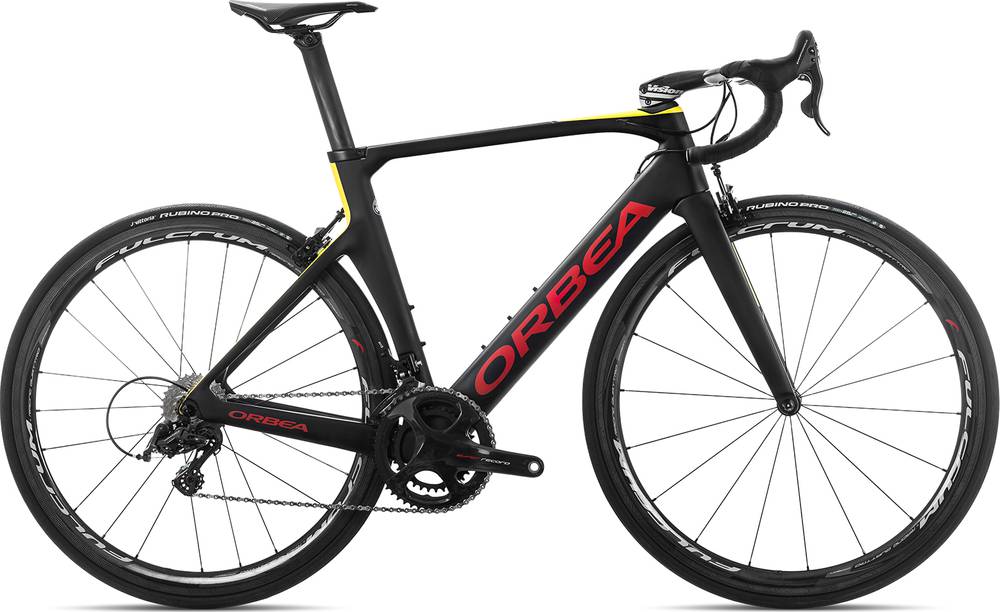

ORCA AERO M12SRTEAM is an Orbea Orca model. There are 214 bikes that carry this model name. Take a sneak peek at all Orbea Orca bikes models from 2019, by clicking here.
Model range prices
Orbea ORCA M40 2019 is the most affordable bike of this model and has a price of 1899$. On the other hand, Orbea ORCA M11iLTD-D 2019, is the most expensive and costs 9499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7499$. Doing a quick comparison, we notice that ORCA AERO M12SRTEAM price is 78.08% higher than the average cost of an Aero bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
ORCA AERO M12SRTEAM components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on ORCA AERO M12SRTEAM are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea ORCA AERO M12SRTEAM is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Orbea ORCA AERO M12SRTEAM bike has 7 sizes, in the range of 155 cm – 207 cm (5.09 ft – 6.79 ft). In conclusion, it won’t take much to find one that’s right for you.
