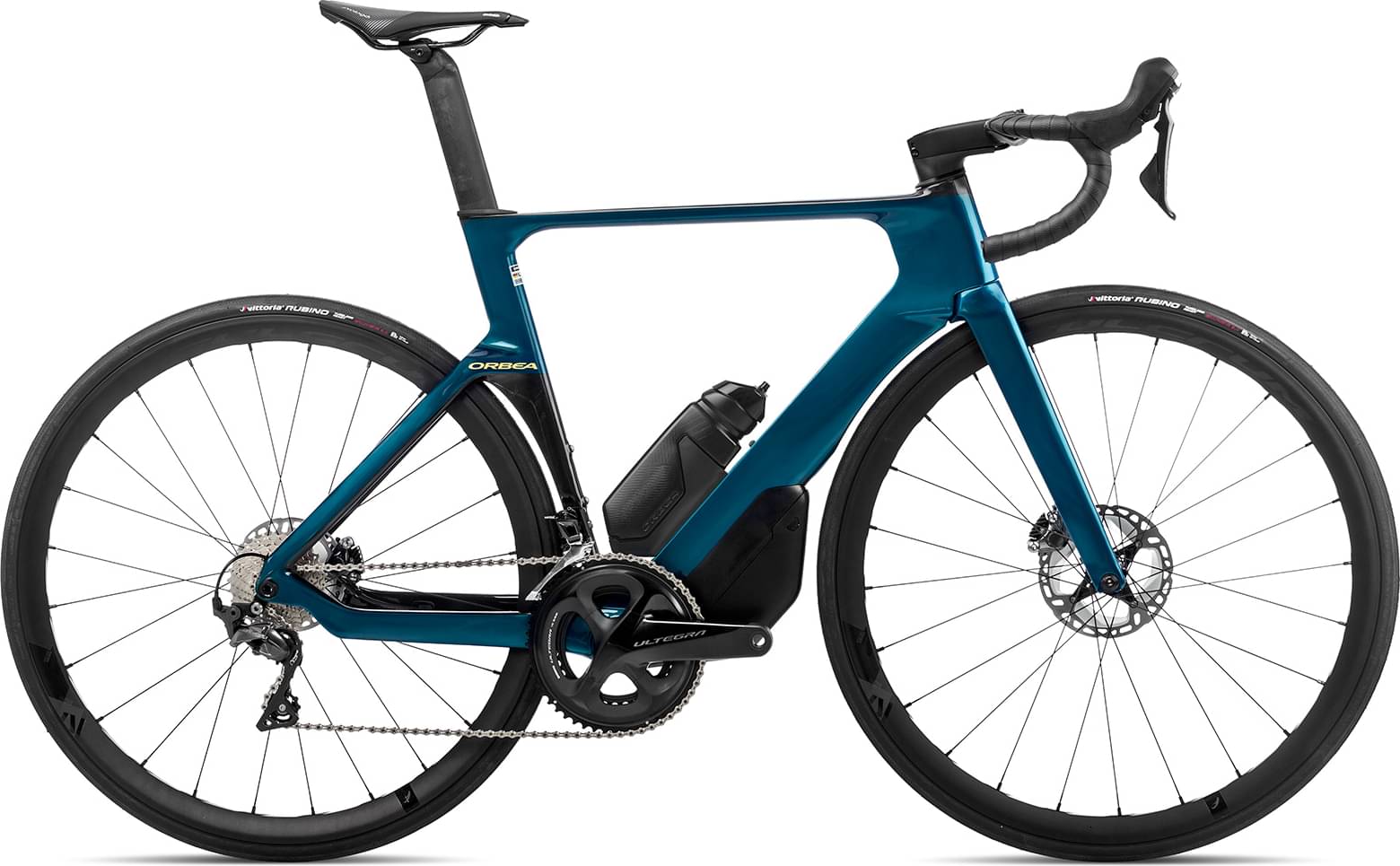

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.
Suspension Fork
Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 SS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano ST-8020
Cassette
Shimano Ultegra R8000 11-30t 11-Speed
Crank
Shimano Ultegra R8000 36x52t
Bottom Bracket
386EVO, 86mm, press-fit
Chain
KMC X11-EL
Wheels
Rims
FULCRUM Racing 400 DB
Tires
Vittoria Rubino IV G2.0 TLR 700x25c
Brakes
Brakes
Shimano R8070 Hydraulic Disc
Cockpit
Stem
OC RP10 Road Performance ICR, -8º, IFC02 Computer mount interface
Handlebar
OC RA10 Road Aero Carbon, Reach 80, Drop 125, Flare 5, w/Di2 hole
Headset
FSA 1-1/2" Integrated Aluminium Cup
Seat
Saddle
Prologo Dimension T4.0 size143 mm
Seatpost
Orbea Orca Aero OMX, SB0/25, w/Micro tilt adjustment
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.35 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 260 mm | 260 mm | 260 mm | 262 mm | 262 mm | 262 mm | 262 mm |
| Front Center | 570 mm | 575 mm | 579 mm | 580 mm | 590 mm | 600 mm | 614 mm |
| Rake | 48 mm | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 64.9 mm | 61.8 mm | 57.5 mm | 59 mm | 57.8 mm | 56.5 mm | 56.5 mm |
| Stack | 487 mm | 496 mm | 514 mm | 533 mm | 553 mm | 571 mm | 597 mm |
| Reach | 361 mm | 367 mm | 371 mm | 376 mm | 382 mm | 389 mm | 395 mm |
| Top Tube Length | 498.6 mm | 511.8 mm | 523.9 mm | 536.5 mm | 548.5 mm | 564.1 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 459 mm | 474 mm | 499 mm | 524 mm | 544 mm | 564 mm | 589 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.2 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 93.1 mm | 100.8 mm | 117.2 mm | 134.9 mm | 155.2 mm | 173.2 mm | 200.4 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm |
| Wheelbase | 957 mm | 962 mm | 965 mm | 967 mm | 977 mm | 987 mm | 1001 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 708 mm | 719 mm | 741 mm | 766 mm | 785 mm | 802 mm | 826 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
About this model
ORCA AERO M20LTD is part of the Orbea Orca model. 214 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Orbea ORCA M40 2022 is the most affordable bike of this model and has a price of 2441$. On the other hand, Orbea ORCA M10iLTD PWR 2022, is the most expensive and costs 11148$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Orbea released this model in 2022, its price was 4458$. If we compare this with the average Aero bike cost we notice that the price is 5.87% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
ORCA AERO M20LTD components
Fork material
ORCA AERO M20LTD has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Orbea ORCA AERO M20LTD 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ORCA AERO M20LTD comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Orbea ORCA AERO M20LTD bike has 7 sizes, in the range of 155 cm – 207 cm (5.09 ft – 6.79 ft). In short, you can easily find one that suits you.
