Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca carbon OMR Disc, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing, EC/DC compatible
Suspension Fork
Orbea Orca OMR ICR fork 2021, full carbon, 1-1/8" - 1.5" tappered head tube compatible, Thru axle 12x100m, thread M12x2P1, Speed release compatible droput.
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150
Front Derailleur
Shimano Ultegra Di2 R8150
Shift Levers
Shimano ST-8170
Cassette
Shimano Ultegra R8100 11-30t 12-Speed
Crank
Shimano Ultegra R8100 34x50t
Bottom Bracket
386EVO, 86mm, press-fit
Chain
Shimano M8100
Wheels
Rims
FULCRUM Racing 600 DB
Tires
Vittoria Rubino IV G2.0 Foldable 700x28c
Brakes
Brakes
Shimano R8170 Hydraulic Disc
Cockpit
Stem
OC RP10 Road Performance ICR, -8º, IFC02 Computer mount interface
Handlebar
OC RP20 Road Performance SL, Reach 80, Drop 125, w/Di2 hole
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Prologo Scratch-M5 Pas T2.0 size 140mm
Seatpost
OC XP10 Performance Carbon SB20, 27,2mm, w/Micro tilt adjustment
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.48 mm | 1.5 mm | 1.55 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 575 mm | 579 mm | 583 mm | 583 mm | 593 mm | 604 mm | 618 mm |
| Rake | 48 mm | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 64 mm | 61 mm | 56 mm | 58 mm | 58 mm | 55 mm | 55 mm |
| Stack | 519 mm | 528 mm | 546 mm | 565 mm | 585 mm | 603 mm | 629 mm |
| Reach | 373 mm | 378 mm | 383 mm | 388 mm | 394 mm | 401 mm | 407 mm |
| Top Tube Length | 516 mm | 529 mm | 541 mm | 554 mm | 566 mm | 582 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.2 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 105 mm | 113 mm | 130 mm | 148 mm | 168 mm | 186 mm | 213 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 978 mm | 982 mm | 986 mm | 987 mm | 997 mm | 1008 mm | 1022 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 741 mm | 753 mm | 772 mm | 793 mm | 813 mm | 831 mm | 857 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
Model Overview

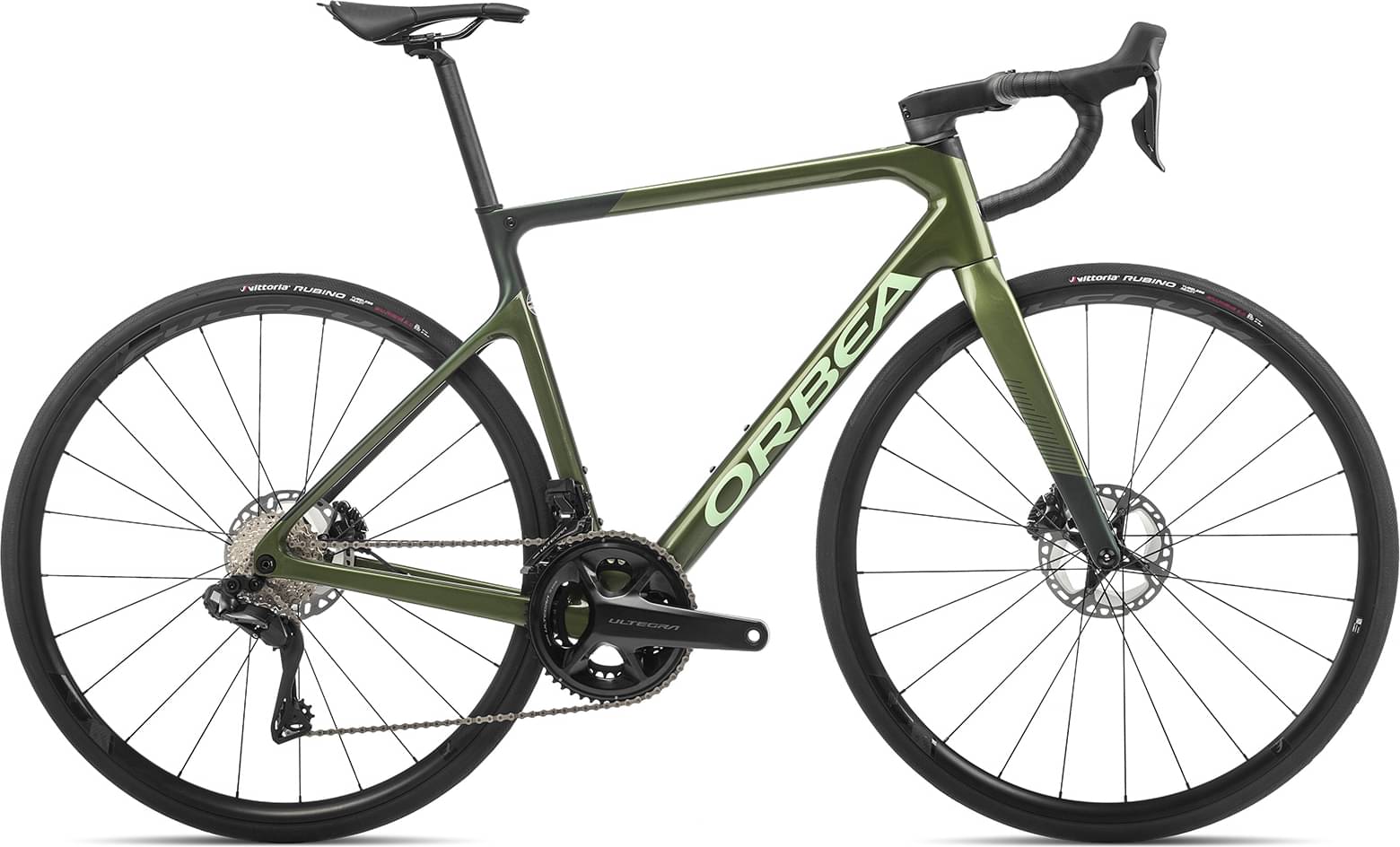

ORCA M20iTEAM completes the Orbea Orca model. Orbea released 214 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Orbea ORCA M40 2022 is the most economical model, with a starting price of 2441$. Orbea ORCA M10iLTD PWR 2022 on the other hand costs 11148$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Orbea released this model in 2022, its price was 5202$. Comparing this to the average Race bike price, we see that the price is 55.28% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the ORCA M20iTEAM model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The ORCA M20iTEAM has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
ORCA M20iTEAM comes in 7 sizes, that range from 155 cm – 207 cm (5.09 ft – 6.79 ft). In short, it won’t be difficult to find the right one for you.
