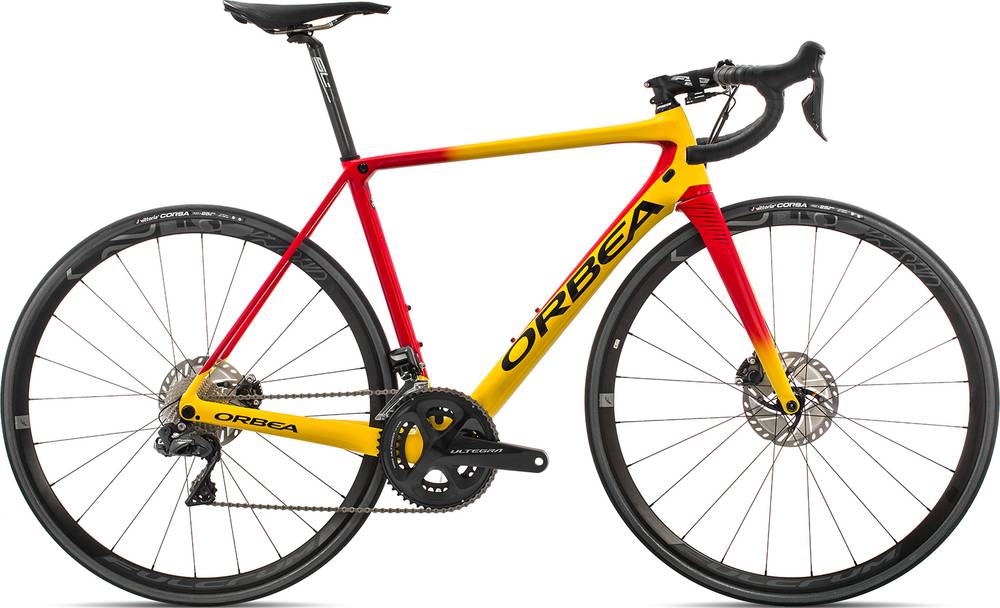

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca carbon OMR Disc, monocoque construction, tapered 1-1/8" - 1,5", BB 386mm, powermeter compatible, Thru Axle 12mm x 142mm rear, internal cable routing, EC/DC compatible, 27,2mm seat tube.
Suspension Fork
Orbea Orca OMR Disc carbon fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts, Thru axle 12 x 100mm
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8050 SS
Front Derailleur
Shimano Ultegra Di2 R8050
Shift Levers
Shimano ST-8070
Cassette
Shimano Ultegra R8000 11-28t 11-Speed Shimano Ultegra R8000 11-25t 11-Speed Shimano Ultegra R8000 11-30t 11-Speed
Crank
Shimano Ultegra R8000 34x50t Shimano Ultegra R8000 39x53t Rotor Aldhu 36x52t Rotor 2INpower DM 34x50t Rotor 2INpower DM 36x52t
Bottom Bracket
386EVO, 86mm, press-fit
Chain
Shimano HG 701
Pedals
N/A
Wheels
Rims
FULCRUM Racing 500 DB Mavic Ksyrium Elite Black UST DB + Tires Fulcrum Racing Quattro Carbon DB
Tires
Vittoria Open Corsa Competition G+ 700x25c Hutchinson Fusion 5 All Season TLR 700x25 Hutchinson Fusion 5 All Season TLR 700x28
Brakes
Brakes
Shimano R8070 Hydraulic Disc
Cockpit
Stem
FSA Energy FSA OS-99 CSI
Handlebar
FSA Energy Compact FSA K-Force Compact Vision Metron 4D Compact
Headset
FSA 1-1/8" - 1-1/2" Integrated Carbon Cup Light Bearings
Seat
Saddle
Hard Black Scratch-2 Tirox size 143 mm Prologo Dimension T4,0 Black Selle Italia SLR Kit Carbonio Black
Seatpost
FSA SL-K SB20 27.2x350mm Di2 compatible FSA S-LK Offset SB0 27,2x350/400mm FSA K-Force Offset SB0 27,2x350/400mm FSA K-Force Offset SB25 27,2x350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.37 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 269.5 mm | 269.5 mm | 269.5 mm | 271.5 mm | 271.5 mm | 271.5 mm | 271.5 mm |
| Front Center | 569 mm | 572 mm | 577 mm | 577 mm | 587 mm | 598 mm | 623 mm |
| Rake | 48 mm | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 71 mm | 68 mm | 64 mm | 65 mm | 64 mm | 63 mm | 51 mm |
| Stack | 512 mm | 521 mm | 539 mm | 558 mm | 578 mm | 596 mm | 622 mm |
| Reach | 376 mm | 381 mm | 386 mm | 391 mm | 397 mm | 404 mm | 410 mm |
| Top Tube Length | 516 mm | 528 mm | 542 mm | 554.5 mm | 566 mm | 582 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.2 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 104 mm | 111 mm | 130 mm | 148 mm | 168 mm | 186 mm | 213 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 978 mm | 981 mm | 986 mm | 987 mm | 997 mm | 1008 mm | 1033 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 735 mm | 748 mm | 764 mm | 786 mm | 806 mm | 823 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
Model Overview
ORCA M20iTEAM-D is part of the Orbea Orca model. Orbea released 214 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Orbea ORCA M40 2018 is the most affordable bike of this model and has a price of 1899$. On the other hand, Orbea ORCA M10iLTD-D 2018, is the most expensive and costs 9399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 5499$. If we compare this with the average Race bike cost we notice that the price is 64.15% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on ORCA M20iTEAM-D are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The ORCA M20iTEAM-D has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Orbea ORCA M20iTEAM-D bike has 7 sizes, in the range of 155 cm – 207 cm (5.09 ft – 6.79 ft). In short, it won’t be difficult to find the right one for you.
