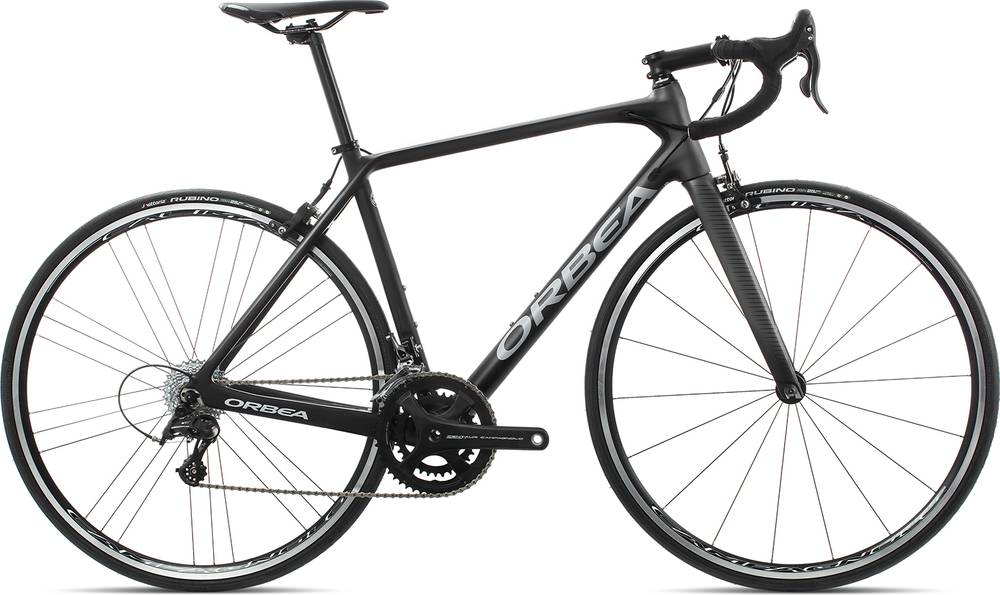

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Centaur -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca carbon OME, monocoque,tapered 1-1/8" - 1,5", PF 86mm, powermeter compatible, brake internal cable routing, EC/DC compatible, 130mm rear spacing, 27,2mm seat tube.
Suspension Fork
Orca OME carbon fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts
Drivetrain
Rear Derailleur
Campagnolo Centaur 11speed MC
Front Derailleur
Campagnolo Centaur
Shift Levers
Campagnolo Centaur
Cassette
Campagnolo Centaur 11-29 11-Speed
Crank
Campagnolo Centaur 34x50t
Bottom Bracket
BB86/BB92, press-fit
Chain
Fsa Team Issue
Pedals
N/A
Wheels
Rims
Campagnolo Calima
Tires
Vittoria Rubino Foldable 700x25 60TPI G+
Brakes
Brakes
Campagnolo Centaur
Cockpit
Stem
Orbea OC-II
Handlebar
FSA Omega Compact
Headset
FSA 1-1/8 - 1-1/2" Integrated Aluminium Cup ACB Bearings
Seat
Saddle
Selle Royal Seta RS
Seatpost
Orbea OC-II Carbon 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.55 mm |
| Bottom Bracket Height | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm | 269.5 mm |
| Front Center | 575 mm | 580 mm | 586 mm | 585 mm | 593 mm | 603 mm | 617 mm |
| Rake | 50 mm | 50 mm | 50 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 65 mm | 61 mm | 57 mm | 58 mm | 58 mm | 57 mm | 59 mm |
| Stack | 521 mm | 536 mm | 553 mm | 570 mm | 590 mm | 609 mm | 633 mm |
| Reach | 373 mm | 376 mm | 381 mm | 388 mm | 393 mm | 399 mm | 408 mm |
| Top Tube Length | 513 mm | 528 mm | 541 mm | 556 mm | 567 mm | 581 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 155 mm | 175 mm | 195 mm | 220 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 978 mm | 983 mm | 989 mm | 989 mm | 997 mm | 1007 mm | 1021 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 744 mm | 761 mm | 779 mm | 799 mm | 818 mm | 837 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
About this model
ORCA M32 is part of the Orbea Orca model. Orbea released 214 bikes variations of this model so far. You can easily view all of the Orbea Orca bikes models from 2019, here.
Model range prices
Orbea ORCA M40 2019 is the most affordable bike of this model and has a price of 1899$. On the other hand, Orbea ORCA M11iLTD-D 2019, is the most expensive and costs 9499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2299$. Comparing this to the average Race bike price, we see that the price is 45.72% smaller.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the ORCA M32 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea ORCA M32 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 155 cm – 207 cm (5.09 ft – 6.79 ft). In short, you can easily find one that suits you.
