Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
153cm - 164cm
SM
161cm - 176cm
MD
173cm - 186cm
LG
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ordu carbon OME, monocoque, 1-1/8" head tube, PF 86mm, powermeter compatible, internal cable routing, EC/DC compatible, 130mm rear spacing, vertical dropouts, UCI legal, external battery compatible.
Suspension Fork
Ordu OME carbon fork, aluminum steerer, 1-1/8" head tube
Drivetrain
Rear Derailleur
Shimano 105 R7000 SS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano Bar End SL-BSR1
Cassette
Shimano 105 R7000 11-28t 11-Speed
Crank
FSA Gossamer Compact MegaExo 36x52t
Bottom Bracket
BB86/BB92, press-fit
Chain
Fsa Team Issue
Pedals
N/A
Wheels
Rims
Vision Team 25 Clincher
Tires
Vittoria Rubino Foldable 700x23 60TPI G+
Brakes
Brakes
Orbea OC-II
Brake Levers
Vision Trimax Aero Alloy
Cockpit
Stem
Orbea OC-III
Handlebar
Vision Trimax Alloy
Headset
FSA 1-1/8" Integrated Carbon Cup
Seat
Saddle
Prologo Zero Tri T2,0
Seatpost
Ordu OME Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.33 mm | 1.31 mm | 1.31 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 575 mm | 608 mm | 616 mm | 650 |
| Rake | 53 mm | 54 mm | 44 mm | 46 mm |
| Trail | 63 mm | 59 mm | 57 mm | 55 mm |
| Stack | 496 mm | 524 mm | 552 mm | 581 mm |
| Reach | 366 mm | 393 mm | 420 mm | 444 mm |
| Top Tube Length | 471 mm | 504 mm | 540 mm | 578 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 77 ° |
| Seat Tube Length | 520 mm | 550 mm | 575 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 73 ° | 73 ° |
| Head Tube Length | 92 mm | 120 mm | 139 mm | 169 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 970 mm | 1003 mm | 1011 mm | 1045 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 750 mm | 778 mm | 803 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 161 cm | 173 cm | 184 cm |
| Rider Max Height | 164 cm | 176 cm | 186 cm | 195 cm |
About this model

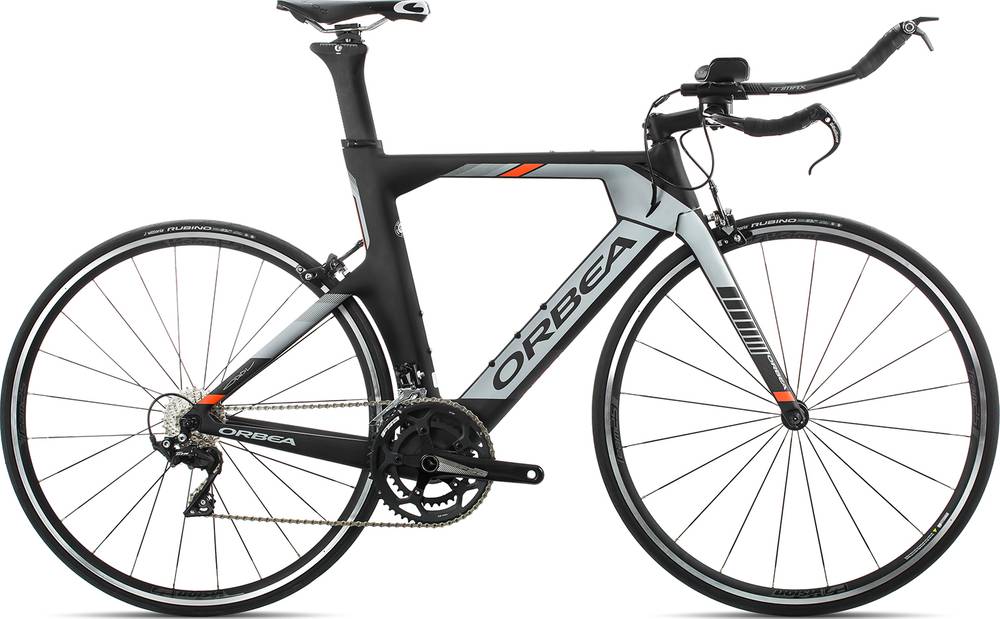

ORDU M30 is part of the Orbea Ordu model. Orbea released 35 bikes variations of this model so far. Take a sneak peek at all Orbea Ordu bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Orbea ORDU M30 2018 has a starting price of 2399$. Orbea ORDU M10iTEAM 2018 on the other hand is the most expensive at 8999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Triathlon bikes
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 2399$. Doing a quick comparison, we notice that ORDU M30 price is 74.11% smaller than the average cost of a Triathlon bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ORDU M30 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the ORDU M30 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 153 cm – 195 cm (5.02 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
