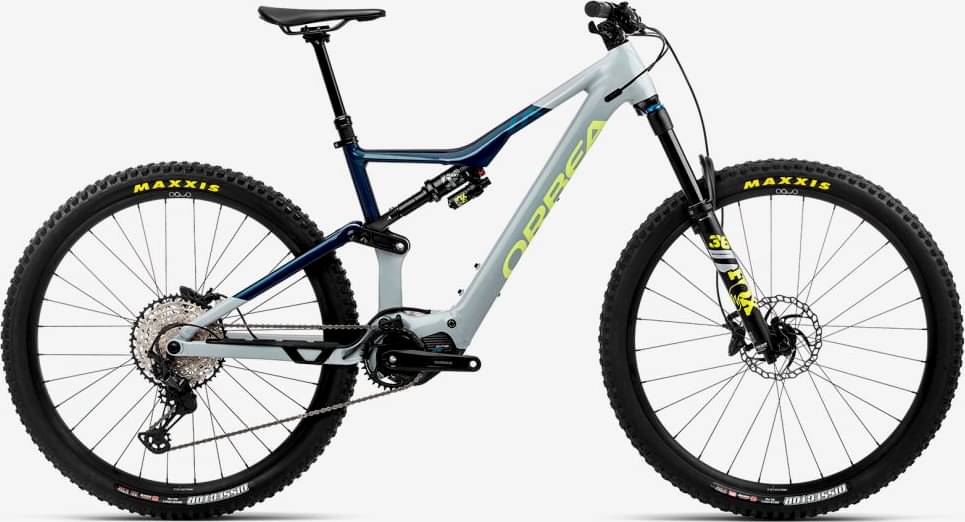

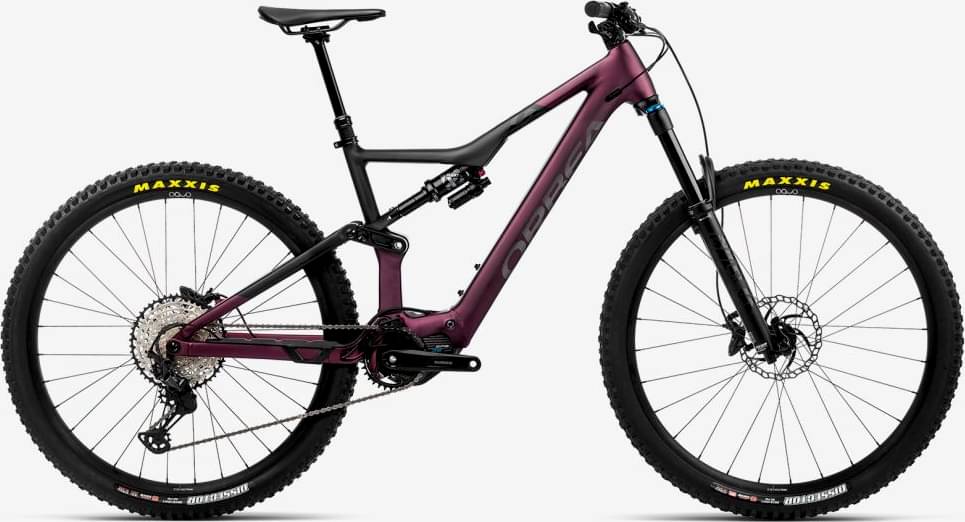

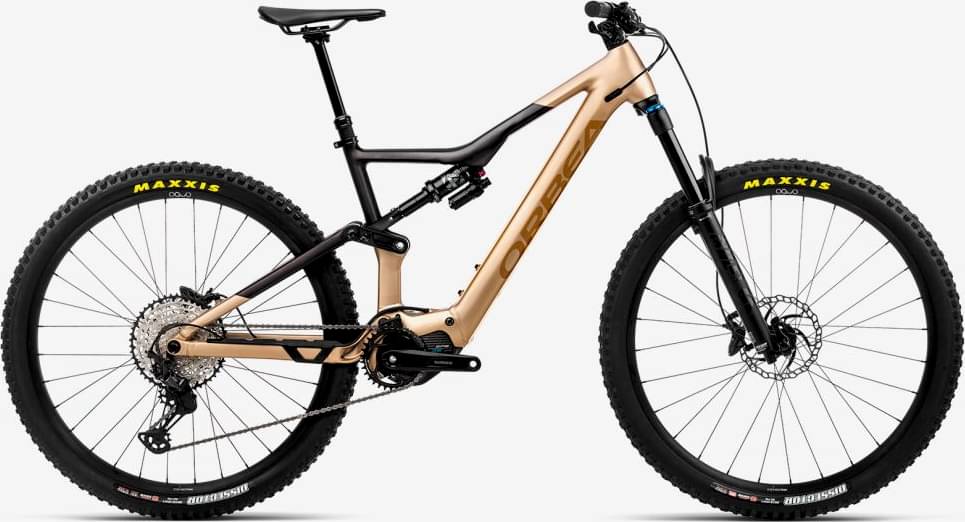

Orbea RISE H10 20mph 2023
2023 E-bike
Estimate price |
6,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset XT, e*thirteen -
Suspension Full -
Motor Shimano mid-drive -
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise Hydro 140mm travel 29" Boost 12x148
Suspension Fork
Fox 36 Float Performance 150 Grip 3-Position QR15x110
Rear Shock
Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano XT M8100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano M7100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
OQUO Mountain Control MC32TEAM
Tires
Maxxis Dissector 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano M6120 Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC10 Alu SL, 0º
Handlebar
OC Mountain Control MC21 Alu SL, Rise20, Width 800
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Taiga S-alloy rail
Seatpost
OC Mountain Control MC20, 31.6mm, Dropper
Motor & Battery
Motor
Shimano EP801-RS
Battery
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
About this model
RISE H10 20mph completes the Orbea E Rise model. 36 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Orbea RISE H30 20mph 2023 is the most economical model, with a starting price of 5299$. Orbea RISE M-LTD 2023 on the other hand costs 12163$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Orbea released this model in 2023, its price was 6599$. Doing a quick comparison, we notice that RISE H10 20mph price is 96.11% more expensive than the average cost of a Trail e-bike.
RISE H10 20mph components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The RISE H10 20mph has a rear shock with a travel of 140mm. The model Fox FLOAT X Performance 2-Position Evol is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the RISE H10 20mph model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea RISE H10 20mph has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
RISE H10 20mph comes in 4 sizes, that range from 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Orbea RISE H10 20mph comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
