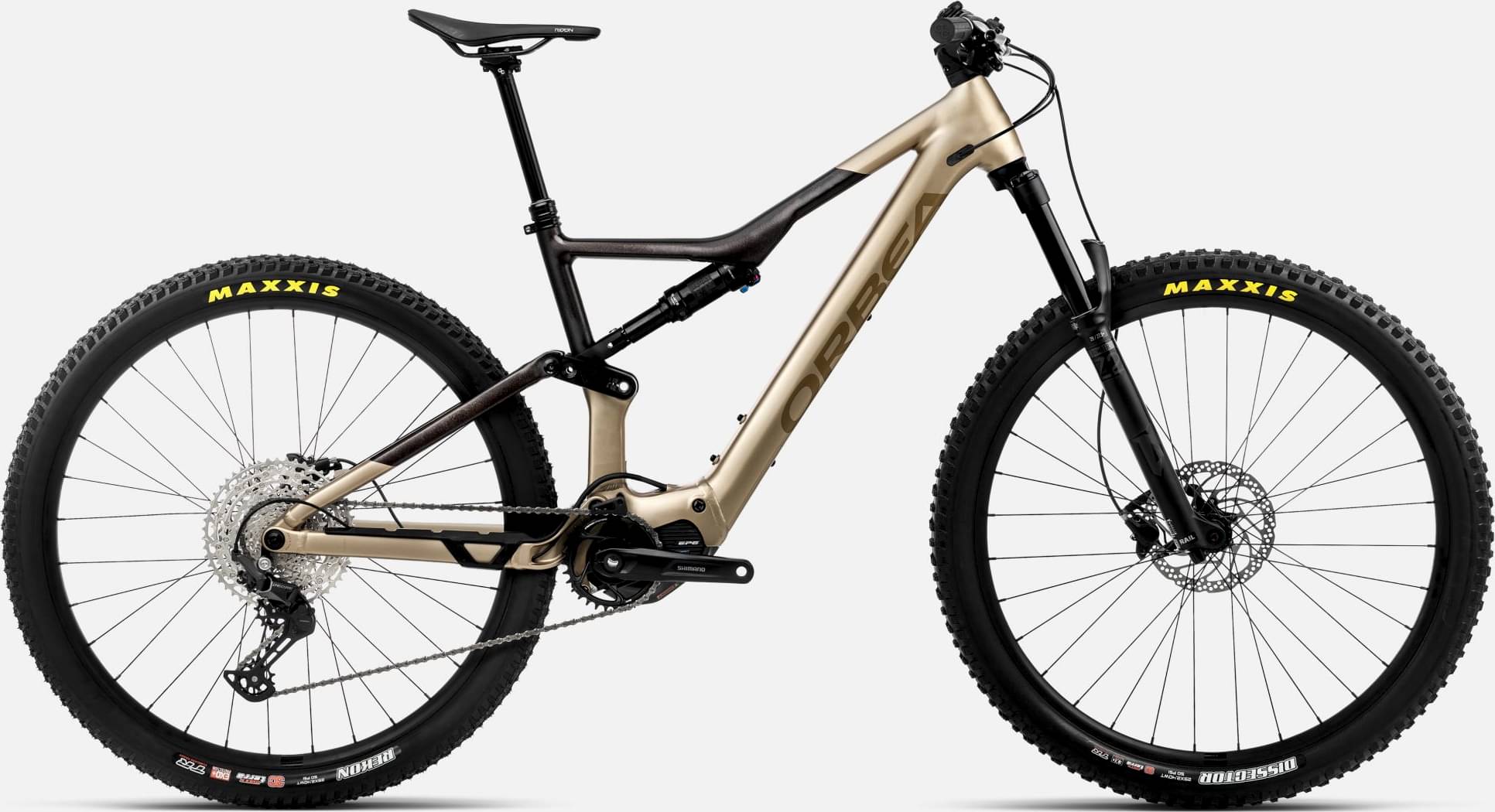

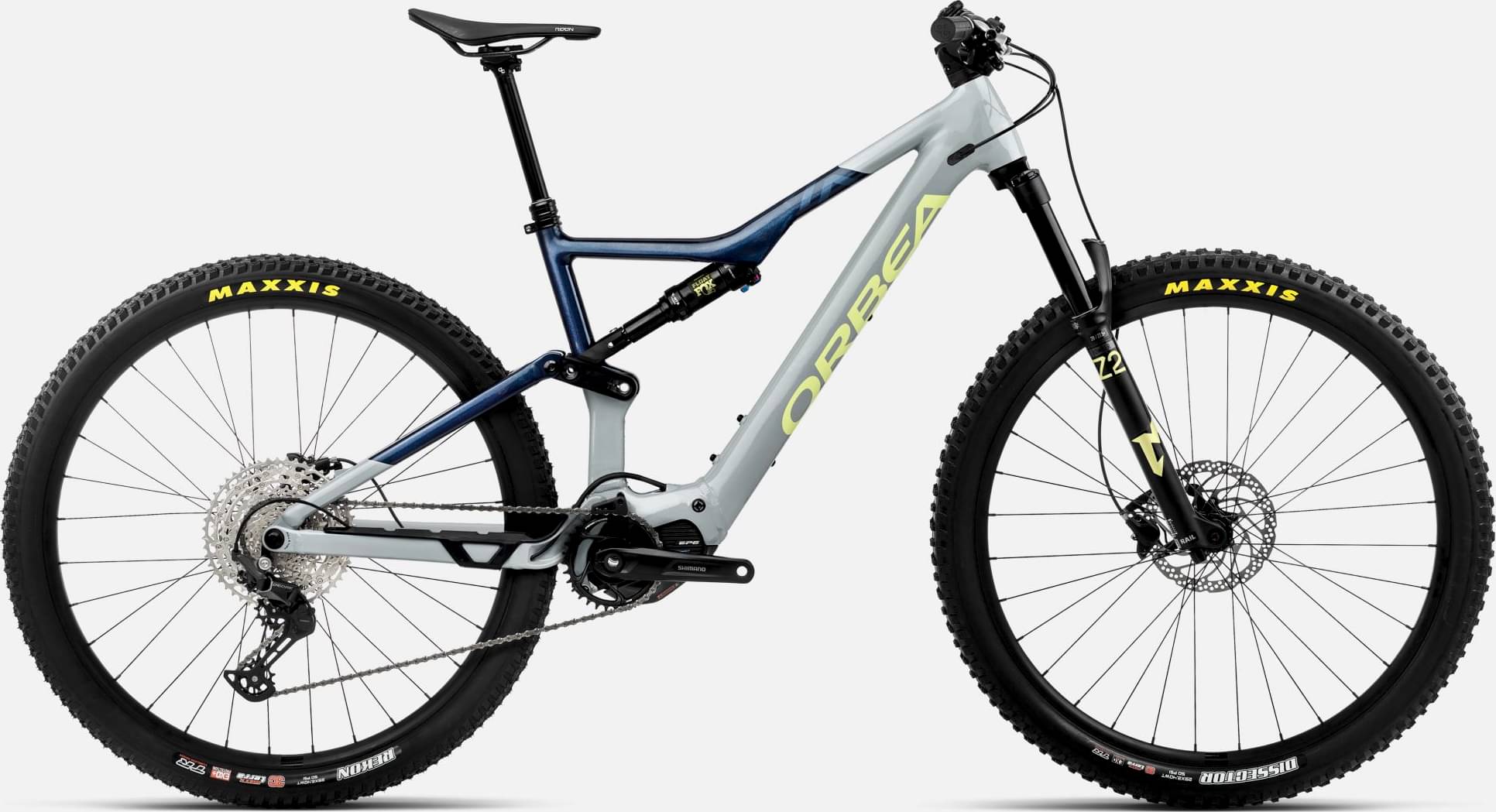

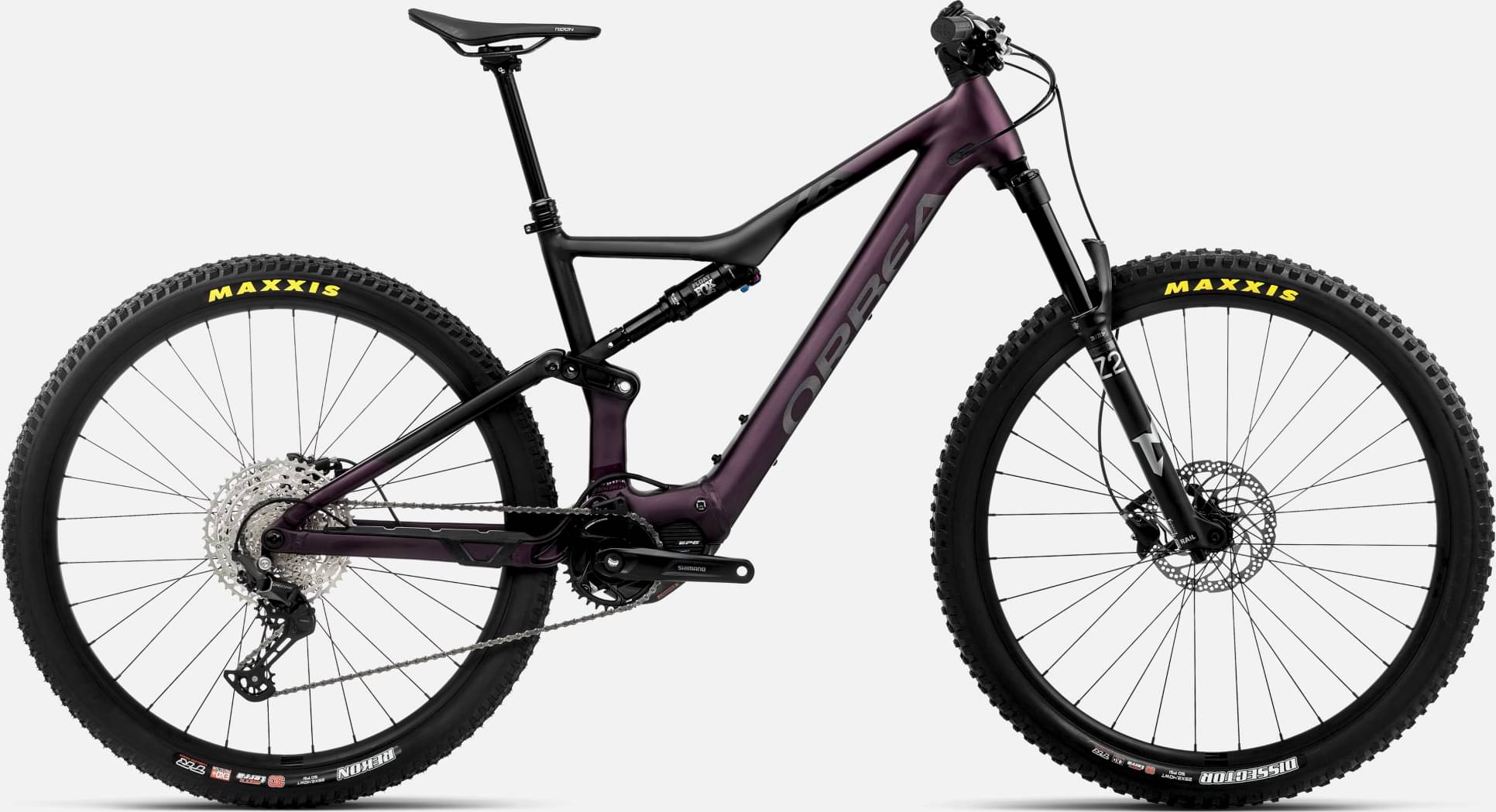

Orbea RISE H30 20mph 2024
2024 E-bike
Estimate price |
5,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Marzocchi Bomber Z2
-
Groupset Deore, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise Hydro 140mm travel 29" Boost 12x148
Suspension Fork
Marzocchi Bomber Z2 140 QR15x110
Rear Shock
Fox Float Performance 2-Position Evol custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Shimano CS-M6100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano M6100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano MT201 Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC20, 0º
Handlebar
OC Mountain Control MC31, Rise20, Width 800
Grips
OC Lock On
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Terra Ridon X5 145mm
Seatpost
OC Mountain Control MC21, 31.6mm, Dropper
Motor & Battery
Motor
Shimano EP600-RS
Battery
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.362 mm | 1.323 mm | 1.292 mm |
| Bottom Bracket Height | 336 mm | 336 mm | mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 604 mm | 613 mm | 627 mm | 646 mm |
| Reach | 425 mm | 450 mm | 474 mm | 500 mm |
| Top Tube Length | 565 mm | 592 mm | 619 mm | 649 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1180 mm | 1205 mm | 1229 mm | 1255 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 710 mm | 736 mm | 766 mm | 776 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
Model Overview
RISE H30 20mph is an Orbea E Rise model. Orbea launched 44 e-bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Orbea RISE H30 20mph 2024 is the most affordable e-bike of this model and has a price of 5299$. On the other hand, Orbea RISE M-LTD 2024, is the most expensive and costs 11647$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2024 for 5299$. If we compare this with the average Trail e-bike cost we notice that the price is 57.47% more expensive.
RISE H30 20mph components
Fork
Orbea RISE H30 20mph 2024 e-bike is equipped with the Marzocchi Bomber Z2 fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The RISE H30 20mph has a rear shock with a travel of 140mm. The model Fox Float Performance 2-Position Evol custom tune 210x55mm is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on RISE H30 20mph are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea RISE H30 20mph is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 150 cm – 198 cm (4.92 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Orbea RISE H30 20mph comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
