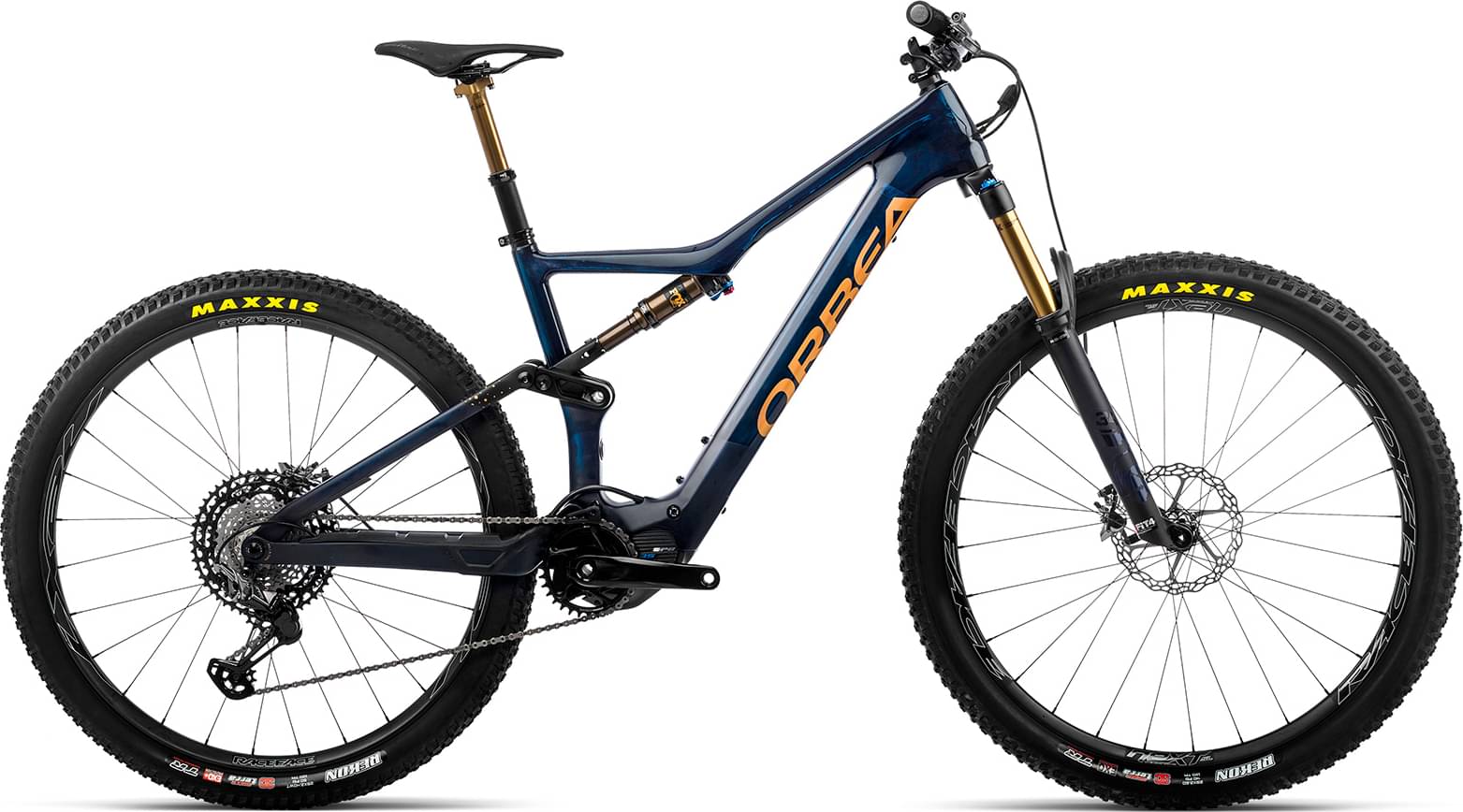

Orbea RISE M-LTD 20mph 2022
2022 E-bike
Estimate price |
11,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset XTR, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Orbea RS Internal 360Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
Suspension Fork
Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima
Rear Shock
Fox Float DPS Factory 3-Position Adjust Evol Kashima custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS Shadow Plus
Shift Levers
Shimano XTR M9100
Cassette
Shimano XTR M9100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano CN-9100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Race Face NEXT-SL TLR 15/110mm IS
Tires
Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR
Brakes
Brakes
Shimano XTR M9100 Hydraulic Disc
Cockpit
Stem
Race Face Turbine R 35mm interface
Handlebar
Race Face Next 35 20mm Rise 760mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia SLR Boost SuperFlow L Carbon Keramic Rail Ø7 x 9 mm
Seatpost
Fox Transfer SL Factory Kashima Dropper 31.6
Motor & Battery
Motor
Shimano EP8-RS
Battery
Orbea RS Internal 360Wh
Remote
Shimano EW-EN100 Junction
Charger
Orbea RS Charger (36V-2A)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
About this model
RISE M-LTD 20mph belongs to the Orbea E Rise model. Orbea launched 36 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Orbea RISE H30 2022 is the cheapest e-bike model and costs 5626$. Orbea RISE M-LTD 20mph 2022 is the most expensive one and costs 11599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Orbea released this model in 2022, its price was 11599$. In conclusion, this e-bike price is 244.7% higher than the price of the average Trail e-bike.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Factory 3-Position Adjust rear shock model, which has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The RISE M-LTD 20mph 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea RISE M-LTD 20mph has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Orbea model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
