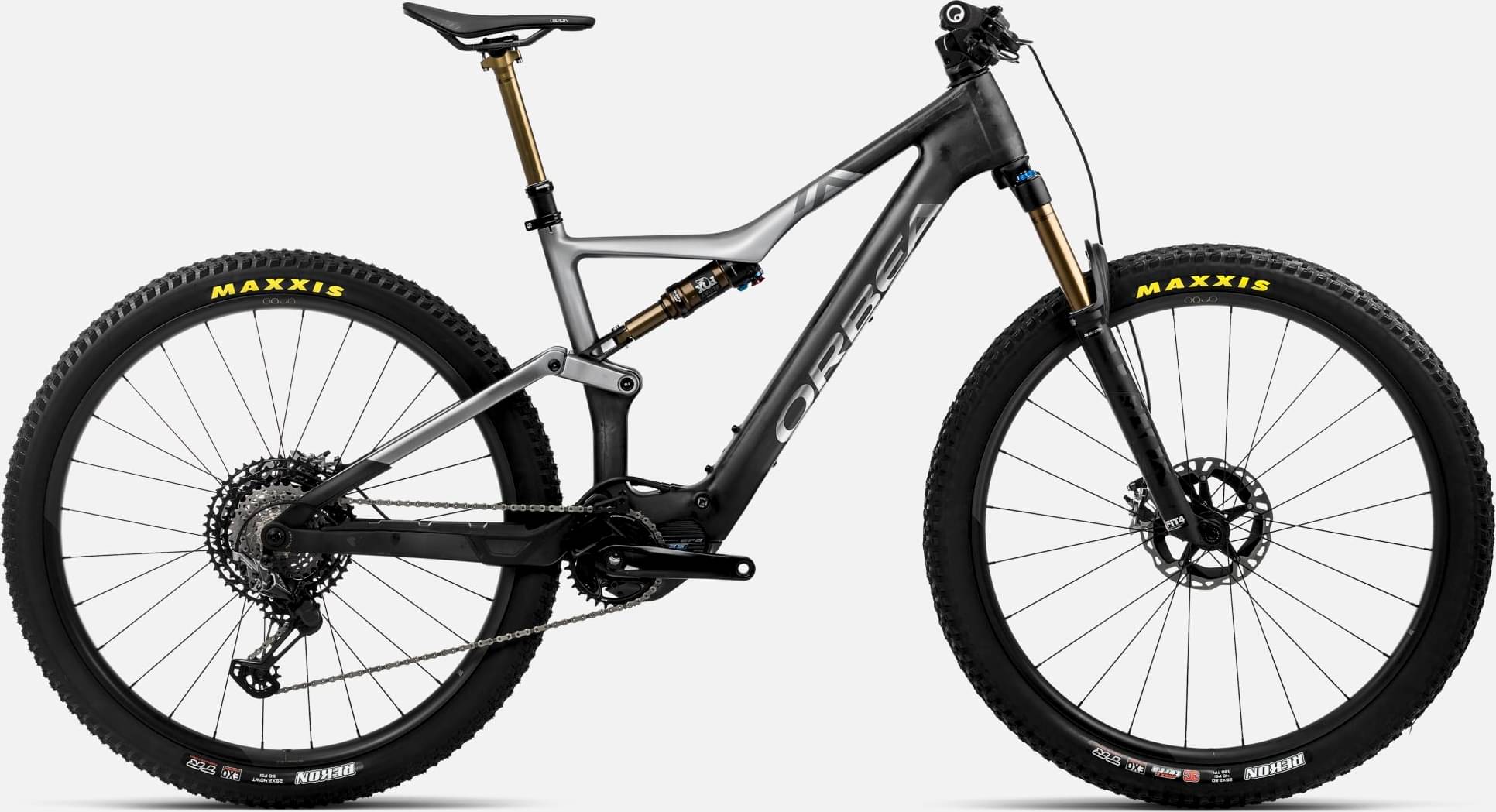

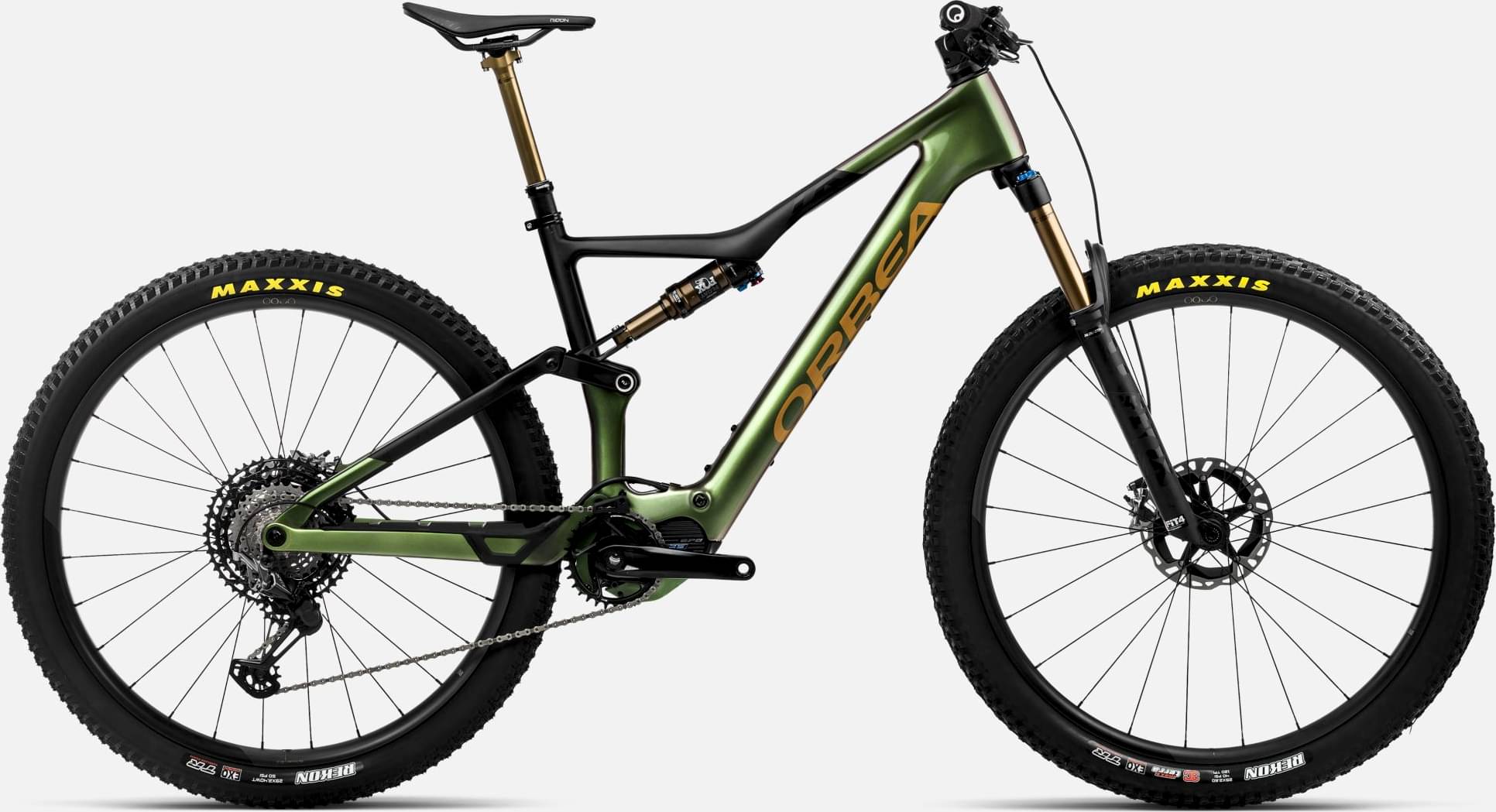

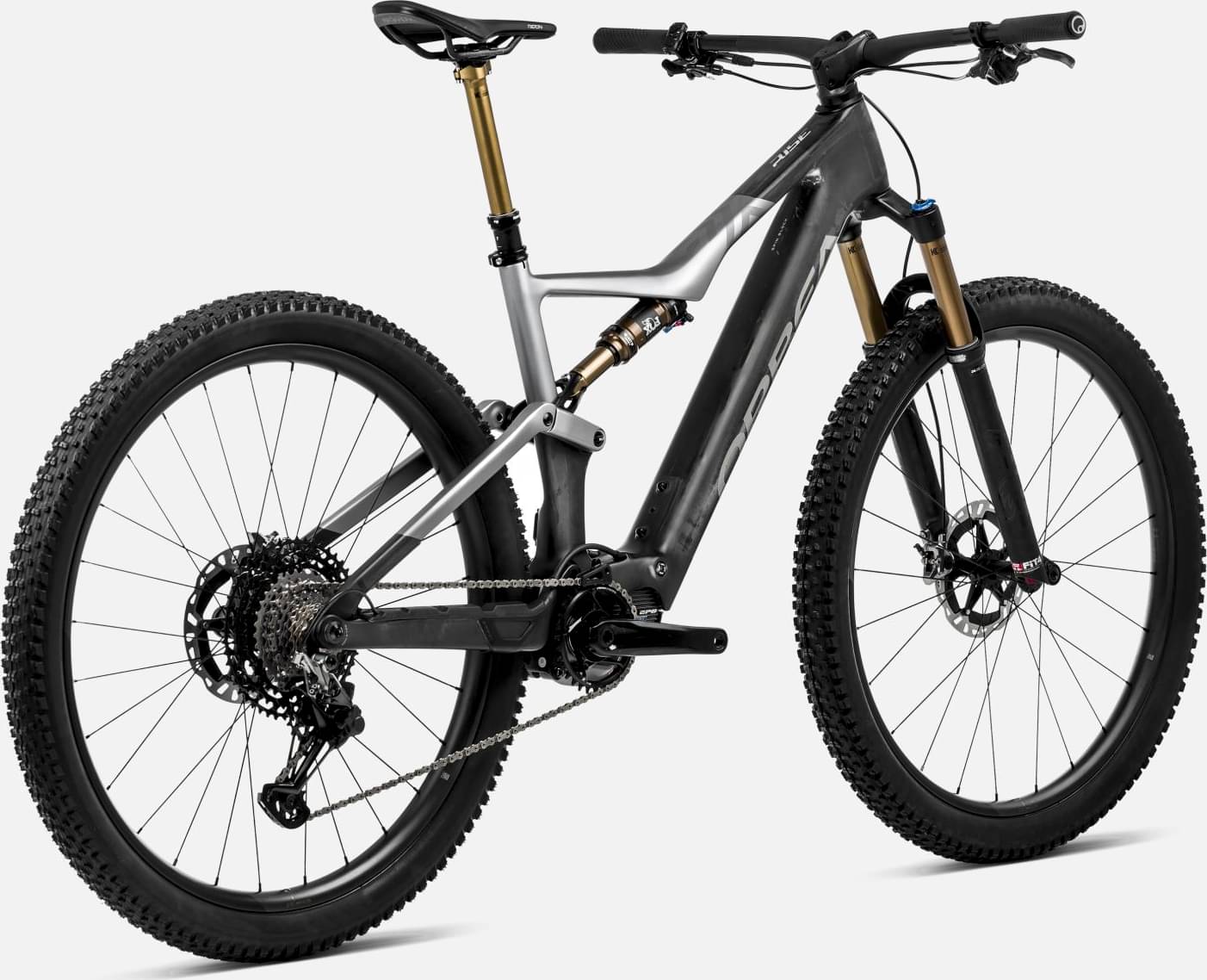

Orbea RISE M-LTD 20mph 2024
2024 E-bike
Estimate price |
11,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset XTR, e*thirteen -
Suspension Full -
Motor Shimano mid-drive -
Battery Orbea Internal 360Wh (Optional 540Wh) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise Evo OMR 2023, 140mm travel, 29" wheels, Concentric Boost 12x148
Suspension Fork
Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima
Rear Shock
Fox Float Factory 2-Position Adjust Evol Kashima custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS Shadow Plus
Shift Levers
Shimano XTR M9100
Cassette
Shimano XTR M9100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano CN-9100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Oquo Mountain Performance MP30LTD, carbon hookless rim, DT240 S CL hub, 30mm internal width, Sapim CX-Ray TCS spokes, 29"
Tires
Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR
Brakes
Brakes
Shimano XTR M9100 Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC10 Alu SL, 0º
Handlebar
OC Mountain Control MC10 Carbon, Rise 20, Width 800
Grips
Ergon GXR
Headset
Alloy 1-1/2", Black Oxidated Bearing
Seat
Saddle
Fizik Terra Ridon X1 145mm
Seatpost
Fox Transfer SL Factory Kashima Dropper 31.6
Motor & Battery
Motor
Shimano EP801-RS
Battery
Orbea Internal 360Wh (Optional 540Wh)
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
Model Overview
RISE M-LTD 20mph is part of the Orbea E Rise model. Orbea released 36 e-bikes variations of this model so far. Take a sneak peek at all Orbea E Rise e-bikes models from 2024, by clicking here.
Model range prices
The most economical model, the Orbea RISE H20 20mph 2024 has a starting price of 5999$. Orbea RISE M-LTD 20mph 2024 on the other hand is the most expensive at 11499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Orbea released this model in 2024, its price was 11499$. If we compare this with the average Trail e-bike cost we notice that the price is 241.72% higher.
RISE M-LTD 20mph components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Orbea RISE M-LTD 20mph e-bike has the Fox Float Factory 2-Position Adjust Evol model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Orbea RISE M-LTD 20mph 2024, has a 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea RISE M-LTD 20mph has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Orbea RISE M-LTD 20mph e-bike has 4 sizes, in the range of 150 cm – 198 cm (4.92 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the RISE M-LTD 20mph. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
