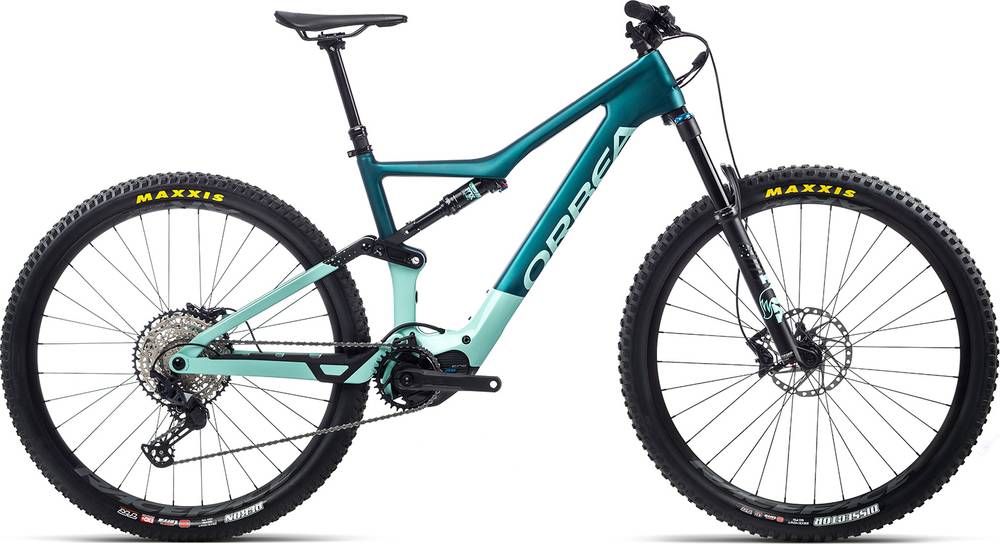

Orbea RISE M20 20mph 2021
2021 E-bike
Estimate price |
6,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 34
-
Groupset SLX, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Orbea RS Internal 360Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
Suspension Fork
Fox 34 Float Performance 140 3-Position QR15x110
Rear Shock
Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano SLX M7100 SGS Shadow Plus
Shift Levers
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
e-THIRTEEN e*spec Direct Mount 32T Boost
Chain
Shimano M6100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Race Face AR 30c Tubeless Ready
Tires
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano M6100 Hydraulic Disc
Cockpit
Stem
OC1 3D Forged 35mm interface 7º
Handlebar
OC1 35mm 12mm Rise 780mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Taiga S-alloy rail
Seatpost
OC2 Dropper 31.6mm
Motor & Battery
Motor
Shimano EP8-RS
Battery
Orbea RS Internal 360Wh
Charger
Orbea RS Charger (36V-2A)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
About this model
RISE M20 20mph is part of the Orbea E Rise model. 36 e-bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Orbea RISE M20 20mph 2021 is the most economical model, with a starting price of 6999$. Orbea RISE M-LTD 20mph 2021 on the other hand costs 10999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2021 and its price was 6999$. In conclusion, this e-bike price is 107.99% higher than the price of the average Trail e-bike.
RISE M20 20mph components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Performance 3-Position Evol custom tune 210x55mm rear shock model, which has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the RISE M20 20mph e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
RISE M20 20mph comes in 4 sizes, that range from 150 cm – 198 cm (4.92 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the RISE M20 20mph. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
