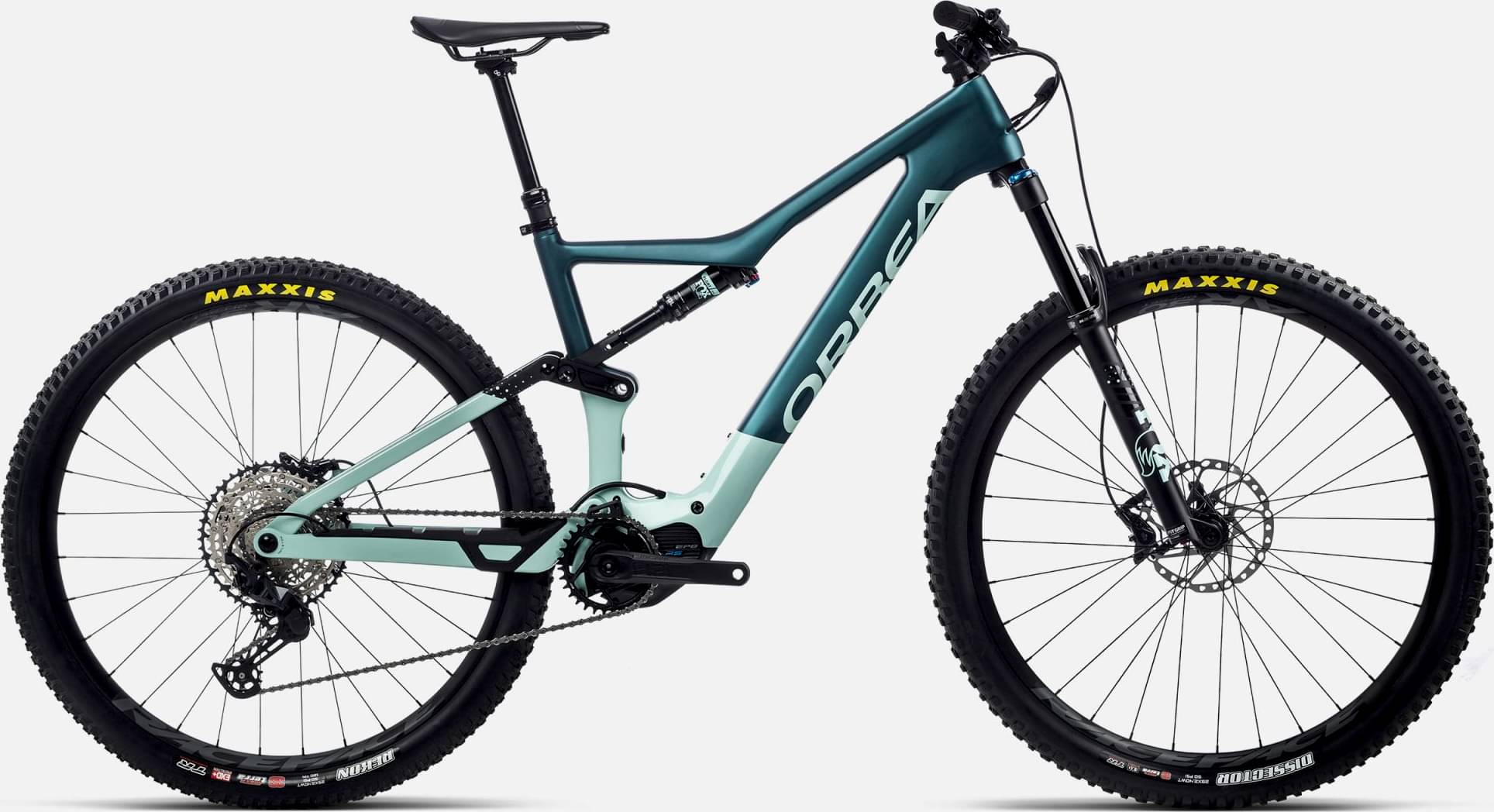

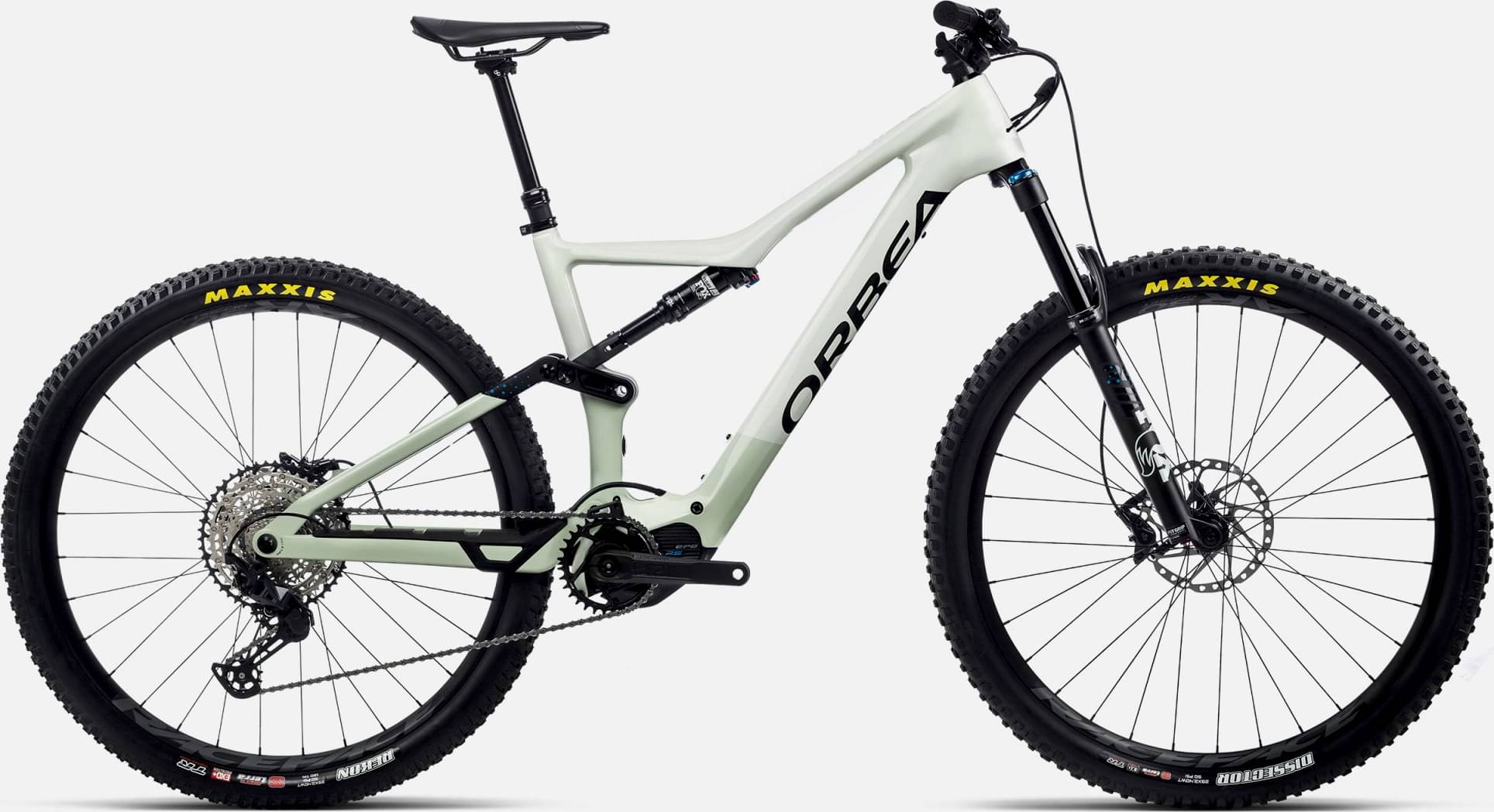

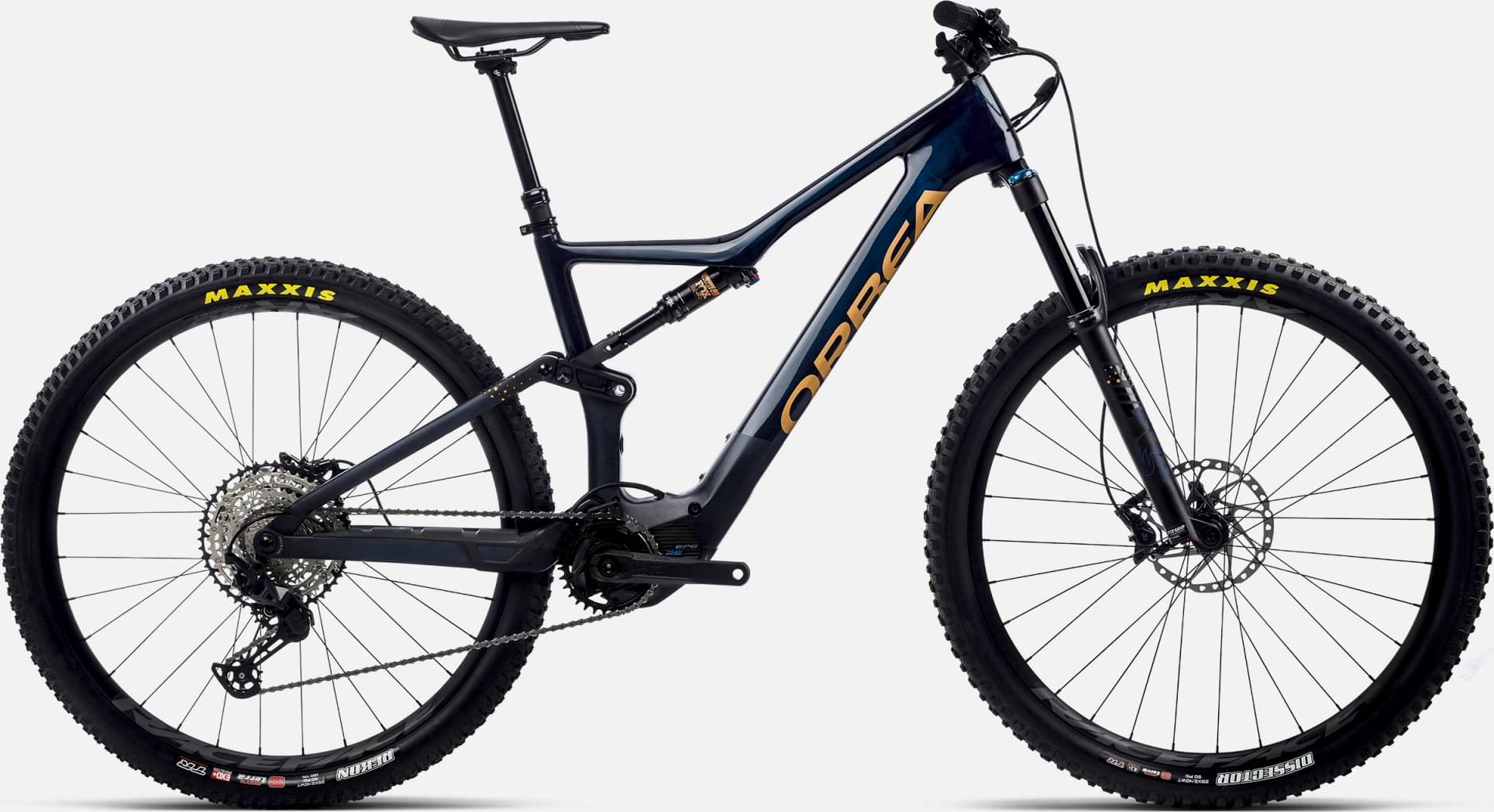

Orbea RISE M20 20mph 2023
2023 E-bike
Estimate price |
7,399$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 34
-
Groupset SLX, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Orbea RS Internal 360Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
Suspension Fork
Fox 34 Float Performance 140 3-Position QR15x110
Rear Shock
Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
Drivetrain
Rear Derailleur
Shimano SLX M7100 SGS Shadow Plus
Shift Levers
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 32T Boost
Chain
Shimano M6100
Chain Guide
Orbea Rise chainguide
Wheels
Rims
Race Face AR 30c Tubeless Ready
Tires
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano M6100 Hydraulic Disc
Cockpit
Stem
Alloy 3D forged, 35mm interface, -7º
Handlebar
Alloy, 35mm, Rise 12mm, 780mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Fizik Taiga S-alloy rail
Seatpost
OC Mountain Control MC20, 31.6mm, Dropper
Motor & Battery
Motor
Shimano EP8-RS
Battery
Orbea RS Internal 360Wh
Remote
Shimano E7000 switch unit for assist
Charger
Orbea RS Charger (36V-2A)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 737 mm | 762 mm | 786 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 109 mm | 113 mm | 119 mm | 127 mm |
| Stack | 602 mm | 611 mm | 625 mm | 644 mm |
| Reach | 423 mm | 448 mm | 472 mm | 498 mm |
| Top Tube Length | 563 mm | 590 mm | 617 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 381 mm | 419 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1178 mm | 1203 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 708 mm | 734 mm | 764 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 198 cm |
Model Overview
RISE M20 20mph belongs to the Orbea E Rise model. 36 e-bikes variations carry this model name so far. Take a sneak peek at all Orbea E Rise e-bikes models from 2023, by clicking here.
Model range prices
Orbea RISE H30 20mph 2023 is the most affordable e-bike of this model and has a price of 5299$. On the other hand, Orbea RISE M-LTD 2023, is the most expensive and costs 12163$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Orbea RISE M20 20mph price was 7399$. Doing a quick comparison, we notice that RISE M20 20mph price is 119.88% higher than the average cost of a Trail e-bike.
Overview of components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Performance 3-Position Evol custom tune 210x55mm rear shock model, which has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Orbea RISE M20 20mph 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RISE M20 20mph comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 150 cm – 198 cm (4.92 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the RISE M20 20mph. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
