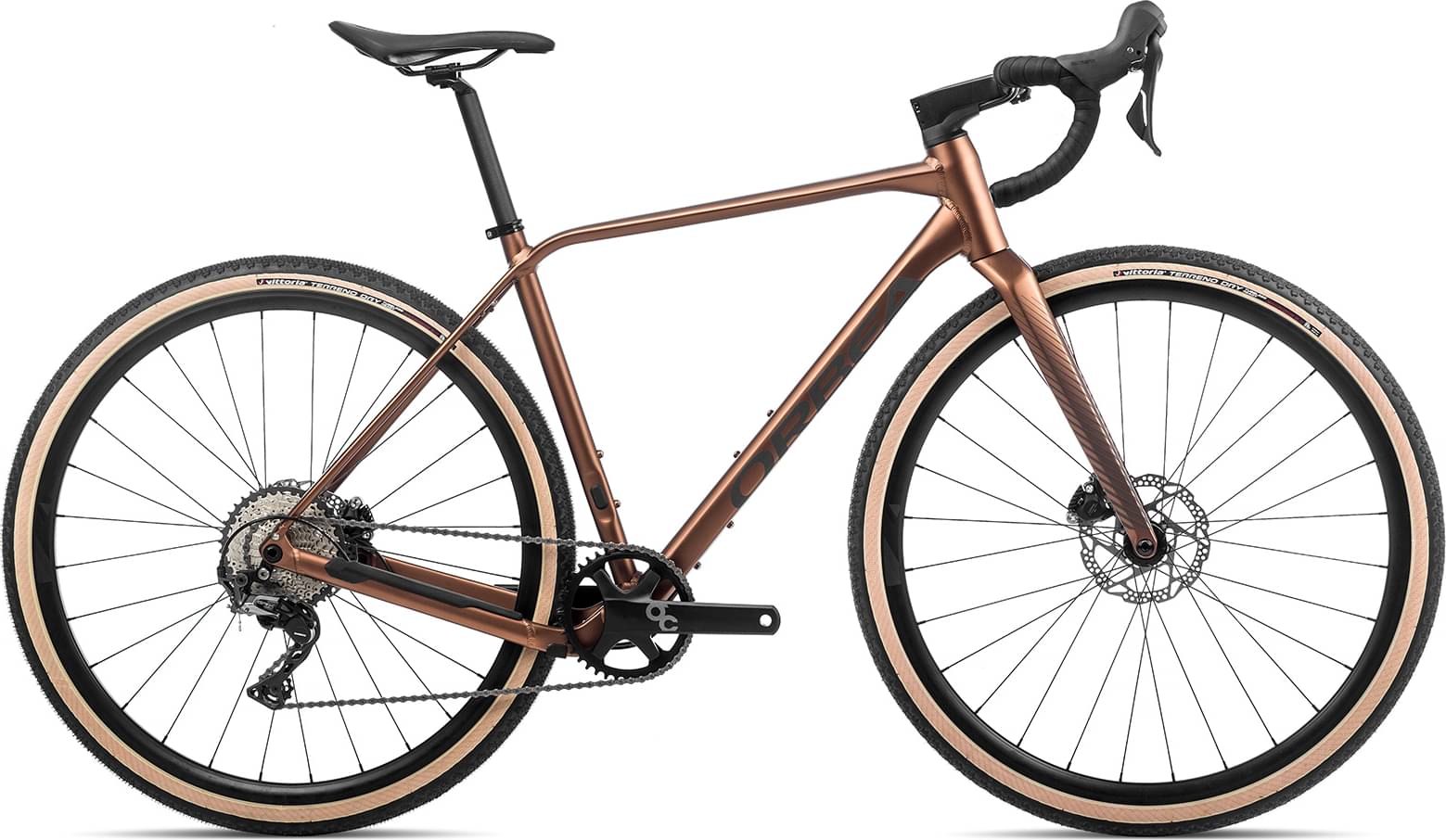

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
165cm - 174cm
MD
171cm - 181cm
LG
178cm - 187cm
XL
184cm - 193cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Suspension Fork
Orbea Terra OMR carbon disc fork, full carbon steerer,
Drivetrain
Rear Derailleur
Shimano RX812 GS
Shift Levers
Shimano ST-RX600
Cassette
Shimano CS-M7000 11-40t 11-Speed
Crank
Alloy forged 40t
Chain
Shimano HG 601
Wheels
Rims
Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H
Tires
Vittoria Terreno Dry Gravel G2.0 TNT 700x38c
Brakes
Brakes
Shimano RX400 Hydraulic disc
Cockpit
Stem
OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface
Handlebar
OC GR30-R Gravel Riser, Reach 70, Drop 125, Flare 12, Rise 15, w/Di2 hole
Headset
FSA 1-1/2" Integrated Aluminium Cup
Seat
Saddle
Fizik Aliante R5
Seatpost
OC2 Carbon 27.2 Offset 20
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.57 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 602 mm | 612 mm | 621 mm | 635 mm | 644 mm | 653 mm |
| Rake | 56 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 62 mm | 59 mm | 59 mm | 56 mm | 53 mm |
| Stack | 517 mm | 539 mm | 561 mm | 583 mm | 605 mm | 627 mm |
| Reach | 366 mm | 373 mm | 380 mm | 386 mm | 393 mm | 400 mm |
| Top Tube Length | 517 mm | 530 mm | 549 mm | 561 mm | 581 mm | 594 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 425 mm | 458 mm | 491 mm | 524 mm | 557 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 110 mm | 131 mm | 152 mm | 178 mm | 199 mm | 220 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1011 mm | 1021 mm | 1030 mm | 1045 mm | 1054 mm | 1063 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 695 mm | 722 mm | 750 mm | 779 mm | 806 mm | 829 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
About this model
TERRA H30 1X is an Orbea Terra model. There are 68 bikes that carry this model name. Take a sneak peek at all Orbea Terra bikes models from 2022, by clicking here.
Model range prices
Orbea TERRA H40 2022 is the most affordable bike of this model and has a price of 2123$. On the other hand, Orbea TERRA M21e TEAM 1X 2022, is the most expensive and costs 5626$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Orbea released this model in 2022, its price was 2335$. Comparing this to the average Gravel bike price, we see that the price is 5.44% lower.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
TERRA H30 1X components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Orbea TERRA H30 1X 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea TERRA H30 1X has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 207 cm (5.09 ft – 6.79 ft). In short, you can easily find one that suits you.
