Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame aluminium -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
165cm - 174cm
MD
171cm - 181cm
LG
178cm - 187cm
XL
184cm - 193cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano RD-RX810
Front Derailleur
Shimano GRX RX810
Shift Levers
Shimano ST-RX600
Cassette
Shimano 105 R7000 11-34t 11-Speed
Chain
Shimano HG 601
Wheels
Rims
Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H
Tires
Vittoria Terreno Dry Gravel G2.0 TNT 700x38c
Brakes
Brakes
Shimano RX400 Hydraulic disc
Cockpit
Stem
OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface
Seat
Saddle
Fizik Aliante R5
Seatpost
OC2 Carbon 27.2 Offset 20
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.57 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 602 mm | 612 mm | 621 mm | 635 mm | 644 mm | 653 mm |
| Rake | 56 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 62 mm | 59 mm | 59 mm | 56 mm | 53 mm |
| Stack | 517 mm | 539 mm | 561 mm | 583 mm | 605 mm | 627 mm |
| Reach | 366 mm | 373 mm | 380 mm | 386 mm | 393 mm | 400 mm |
| Top Tube Length | 517 mm | 530 mm | 549 mm | 561 mm | 581 mm | 594 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 425 mm | 458 mm | 491 mm | 524 mm | 557 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 110 mm | 131 mm | 152 mm | 178 mm | 199 mm | 220 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1011 mm | 1021 mm | 1030 mm | 1045 mm | 1054 mm | 1063 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 695 mm | 722 mm | 750 mm | 779 mm | 806 mm | 829 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
About this model

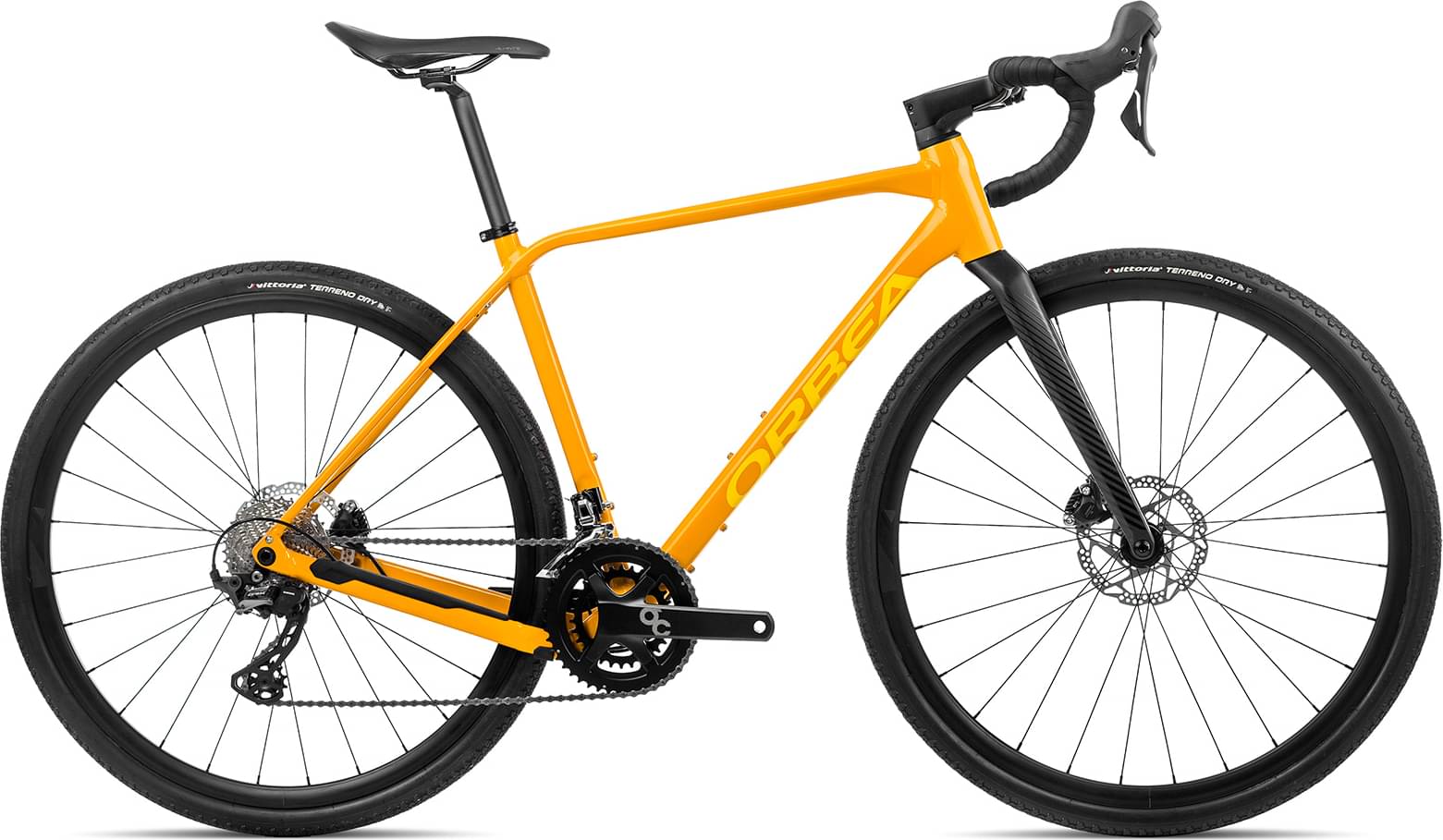

TERRA H30 completes the Orbea Terra model. 68 frames variations carry this model name so far. Take a sneak peek at all Orbea Terra frames models from 2022, by clicking here.
Model range prices
The most economical model, the Orbea TERRA OMP FRAME 2022 has a starting price of 2099$. Orbea TERRA OMR FRAME 2022 on the other hand is the most expensive at 2972$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel frames average price
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2022 and its price was 2441$. If we compare this with the average Gravel frame cost we notice that the price is 62.19% higher.
TERRA H30 components
Fork material
TERRA H30 has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea TERRA H30 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 207 cm (5.09 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
