Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
153cm - 165cm
XS
166cm - 173cm
MD
178cm - 184cm
LG
189cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Terra Hydro disc, hydroformed triple butted aluminium, tapered 1-1/8" - 1,5", BB 68mm – BSC English, Thru Axle 12mm x 142mm rear, thread M12x P1.5, DT internal cable routing, 27,2mm seat tube, MMS system
Suspension Fork
Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system
Drivetrain
Rear Derailleur
Shimano RX812 GS Direct mount
Shift Levers
Shimano ST-RX600
Cassette
Shimano SLX M7000 11-40t 11-Speed
Crank
Shimano GRX RX600 40t
Bottom Bracket
BSA, 68mm, threaded
Chain
Shimano HG 601
Wheels
Rims
Orbea wheels, 12mm E-Thru hubset Shimano RS470 28-32H Tubeless Ready
Tires
Kenda Alluvium K1226 700X40c DTC
Brakes
Brakes
Shimano RX400 Hydraulic disc
Cockpit
Stem
OC1 Road -6º
Handlebar
OC1 All Road, reach 80mm, drop 125mm, flare 12º
Headset
FSA 1-1/8 - 1-1/2" Integrated Aluminium Cup ACB Bearings
Seat
Saddle
Selle Royal Seta RS
Seatpost
OC2 27.2 Offset 20
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.57 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 585 mm | 595 mm | 599 mm | 613 mm | 625 mm | 631 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 69 mm | 66 mm | 60 mm | 60 mm | 58 mm | 53 mm |
| Stack | 529 mm | 549 mm | 569 mm | 589 mm | 614 mm | 634 mm |
| Reach | 370 mm | 377 mm | 384 mm | 391 mm | 398 mm | 405 mm |
| Top Tube Length | 516 mm | 533 mm | 546 mm | 564 mm | 579 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm | 605 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72 ° | 72.3 ° | 73 ° |
| Head Tube Length | 100 mm | 120 mm | 139 mm | 162 mm | 187 mm | 205 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1009 mm | 1019 mm | 1024 mm | 1038 mm | 1050 mm | 1056 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 68 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 767 mm | 791 mm | 817 mm | 843 mm | 870 mm | 894 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 166 cm | cm | 178 cm | 189 cm | 192 cm |
| Rider Max Height | 165 cm | 173 cm | cm | 184 cm | 192 cm | cm |
About this model

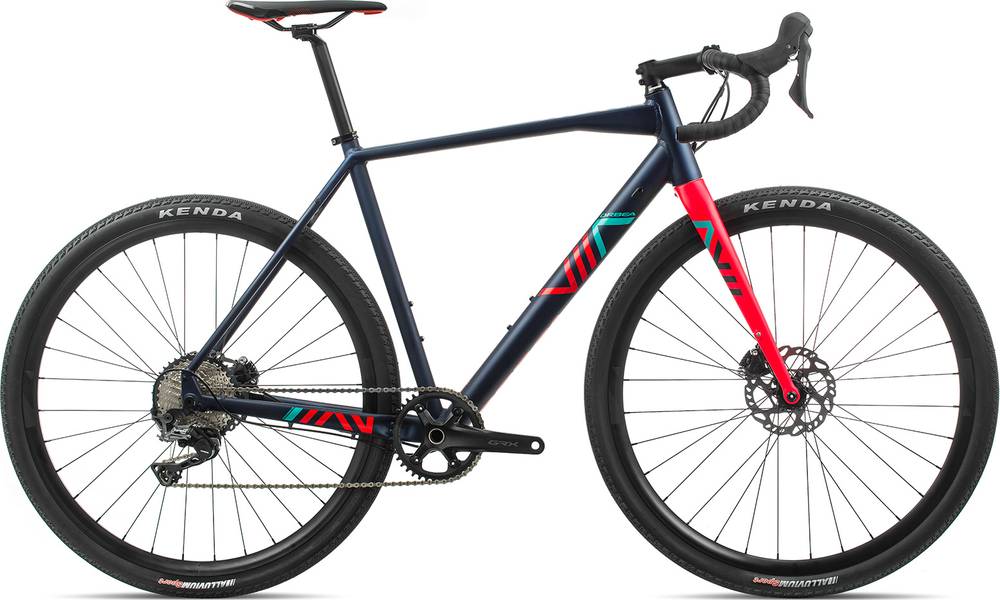

TERRA H30-D 1X completes the Orbea Terra model. Orbea released 68 bikes variations of this model so far. Take a sneak peek at all Orbea Terra bikes models from 2020, by clicking here.
Model range prices
Orbea TERRA H40-D 2020 is the most affordable bike of this model and has a price of 1799$. On the other hand, Orbea TERRA M20-D 1X 2020, is the most expensive and costs 3299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 1999$. In conclusion, this bike price is 23.16% lower than the price of the average Gravel bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
TERRA H30-D 1X components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Orbea TERRA H30-D 1X 2020, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The TERRA H30-D 1X has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
