Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
165cm - 174cm
MD
171cm - 181cm
LG
178cm - 187cm
XL
184cm - 193cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Internal Cable Routing, EC/DC compatible
Suspension Fork
Orbea Terra OMR carbon disc fork, full carbon steerer,
Drivetrain
Rear Derailleur
Shimano RD-RX815
Front Derailleur
Shimano FD-RX815
Shift Levers
Shimano ST-RX815
Cassette
Shimano Ultegra HG800 11-34t 11-Speed
Crank
Shimano GRX RX810 31x48t
Bottom Bracket
PF30, press-fit
Chain
Shimano HG 601
Wheels
Rims
FULCRUM Rapid Red 900 DB
Tires
Pirelli Cinturato™ Gravel H 700x40c TLR
Brakes
Brakes
Shimano BR-RX810 Hydraulic disc
Cockpit
Stem
OC RP10 Road Performance ICR, -8º, IFC02 Computer mount interface
Handlebar
OC GR30 Gravel, Reach 80, Drop 125, Flare 12, w/Di2 hole
Headset
FSA 1-1/2" Integrated Aluminium Cup
Seat
Saddle
Prologo Akero AGX STN size 155mm
Seatpost
OC XP10 Performance Carbon SB0, 27,2mm, w/Micro tilt adjustment
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.52 mm | 1.55 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 601 mm | 611 mm | 621 mm | 635 mm | 644 mm | 653 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 62 mm | 59 mm | 59 mm | 56 mm | 53 mm |
| Stack | 531 mm | 553 mm | 575 mm | 597 mm | 619 mm | 641 mm |
| Reach | 380 mm | 387 mm | 394 mm | 400 mm | 407 mm | 414 mm |
| Top Tube Length | 531 mm | 544 mm | 563 mm | 575 mm | 595 mm | 608 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 438 mm | 471 mm | 504 mm | 537 mm | 570 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 110 mm | 131 mm | 152 mm | 178 mm | 199 mm | 220 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1014 mm | 1024 mm | 1034 mm | 1049 mm | 1058 mm | 1067 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 718 mm | 751 mm | 773 mm | 803 mm | 830 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
About this model

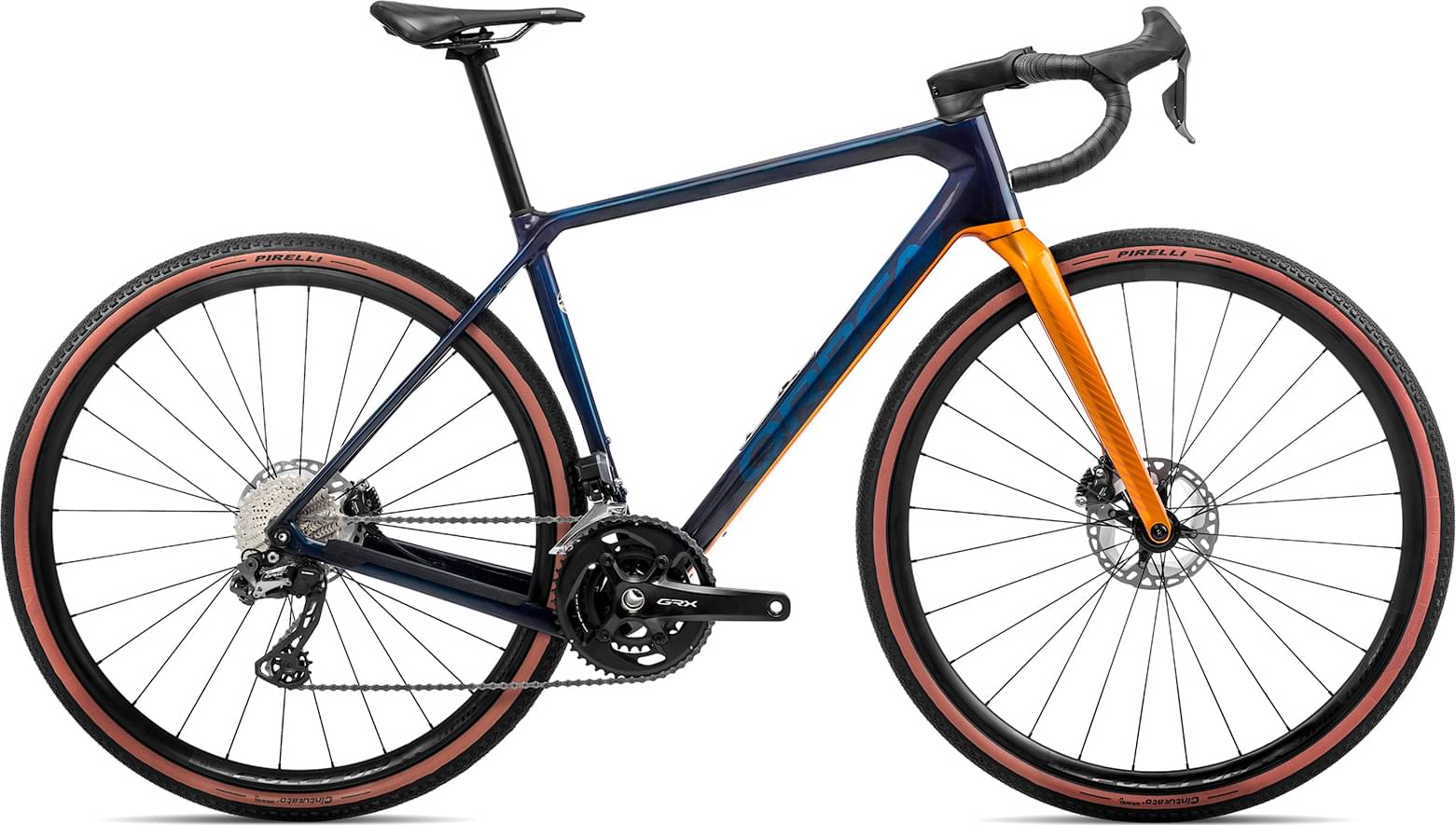

TERRA M20i TEAM completes the Orbea Terra model. 68 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Orbea TERRA H40 2022 is the most affordable bike of this model and has a price of 2123$. On the other hand, Orbea TERRA M21e TEAM 1X 2022, is the most expensive and costs 5626$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5096$. Comparing this to the average Gravel bike price, we see that the price is 106.99% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The TERRA M20i TEAM 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The TERRA M20i TEAM has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 207 cm (5.09 ft – 6.79 ft). In conclusion, you won’t have a problem finding one that suits you.
