Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR eTap, Rival eTap -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
165cm - 174cm
MD
171cm - 181cm
LG
178cm - 187cm
XL
184cm - 193cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Internal Cable Routing, EC/DC compatible
Suspension Fork
Orbea Terra OMR carbon disc fork, full carbon steerer,
Drivetrain
Rear Derailleur
SRAM Rival XPLR eTAP AXS
Shift Levers
SRAM Rival eTap AXS
Cassette
SRAM XG-1251 XPLR 10-44t 12-Speed
Crank
SRAM Rival 1 Dub Wide 40t
Bottom Bracket
PF30, press-fit
Chain
SRAM Rival 12-Speed
Wheels
Rims
FULCRUM Rapid Red 900 DB
Tires
Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
Brakes
Brakes
SRAM Rival eTap AXS
Cockpit
Stem
OC RP10 Road Performance ICR, -8º, IFC02 Computer mount interface
Handlebar
OC GR30 Gravel, Reach 80, Drop 125, Flare 12, w/Di2 hole
Headset
FSA 1-1/2" Integrated Aluminium Cup
Seat
Saddle
Prologo Akero AGX STN size 155mm
Seatpost
OC XP10 Performance Carbon SB0, 27,2mm, w/Micro tilt adjustment
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.52 mm | 1.55 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 601 mm | 611 mm | 621 mm | 635 mm | 644 mm | 653 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 62 mm | 59 mm | 59 mm | 56 mm | 53 mm |
| Stack | 531 mm | 553 mm | 575 mm | 597 mm | 619 mm | 641 mm |
| Reach | 380 mm | 387 mm | 394 mm | 400 mm | 407 mm | 414 mm |
| Top Tube Length | 531 mm | 544 mm | 563 mm | 575 mm | 595 mm | 608 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 438 mm | 471 mm | 504 mm | 537 mm | 570 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 110 mm | 131 mm | 152 mm | 178 mm | 199 mm | 220 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1014 mm | 1024 mm | 1034 mm | 1049 mm | 1058 mm | 1067 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 718 mm | 751 mm | 773 mm | 803 mm | 830 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |

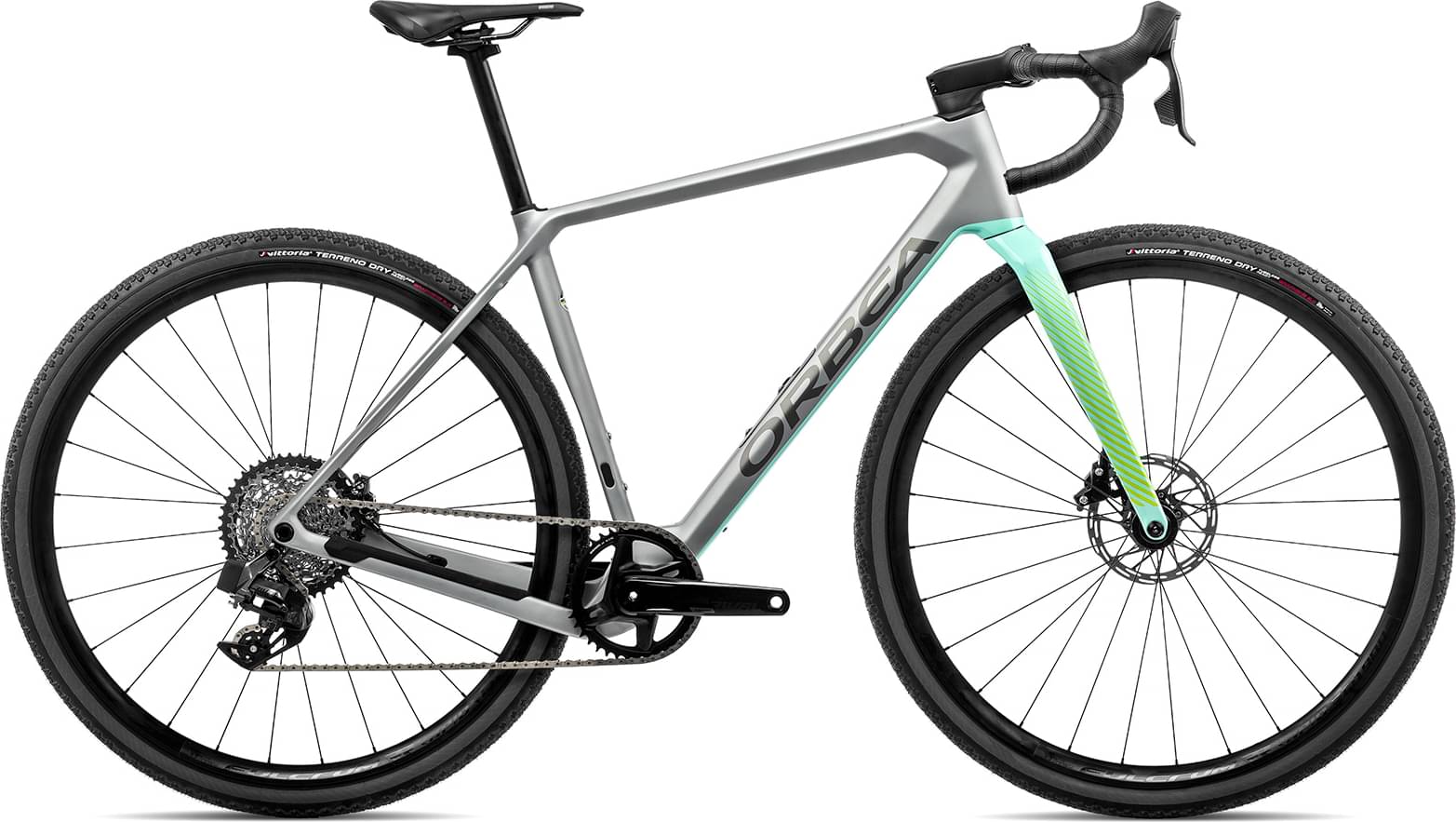

About this model
TERRA M31e TEAM 1X completes the Orbea Terra model. 68 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Orbea TERRA H40 2022 is the most affordable bike of this model and has a price of 2123$. On the other hand, Orbea TERRA M21e TEAM 1X 2022, is the most expensive and costs 5626$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4246$. If we compare this with the average Gravel bike cost we notice that the price is 72.46% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
TERRA M31e TEAM 1X components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the TERRA M31e TEAM 1X bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TERRA M31e TEAM 1X comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Orbea TERRA M31e TEAM 1X bike has 6 sizes, in the range of 155 cm – 207 cm (5.09 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
