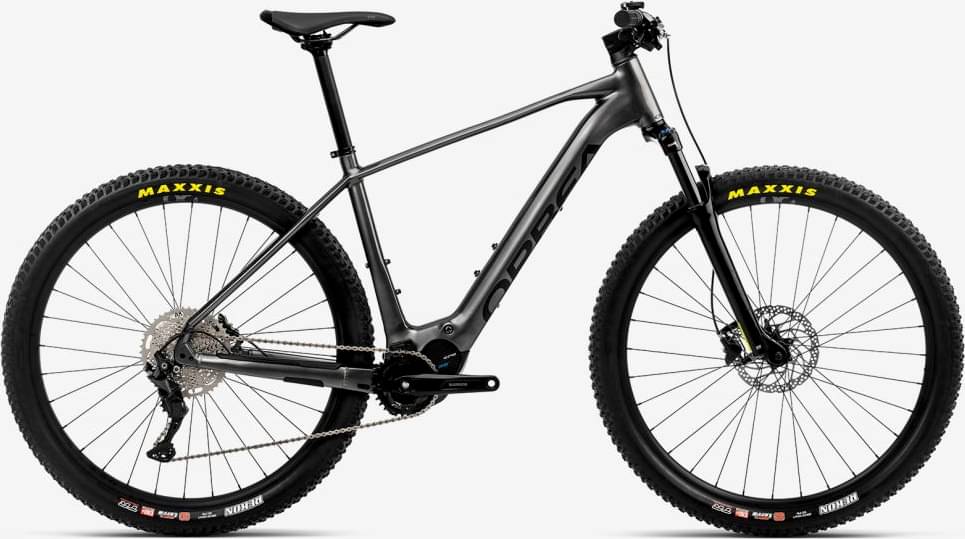

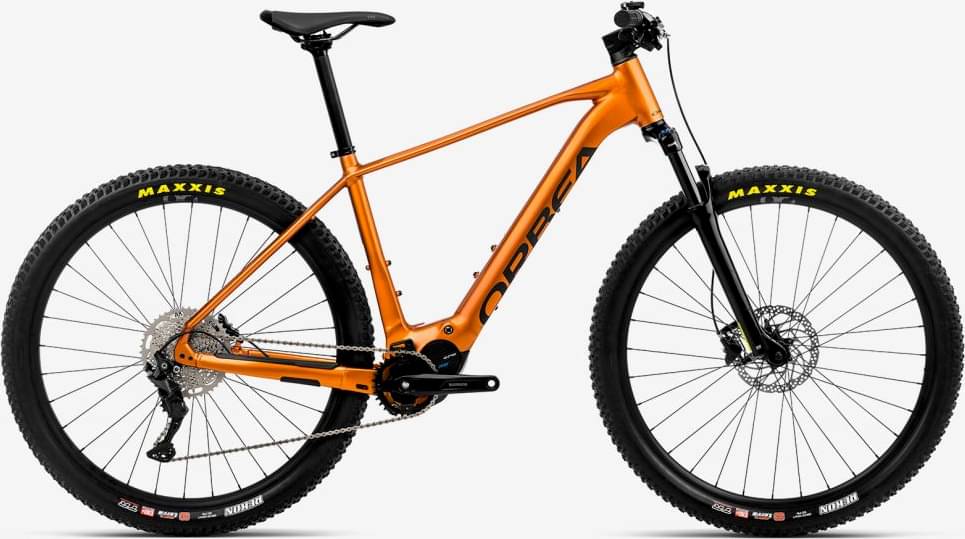

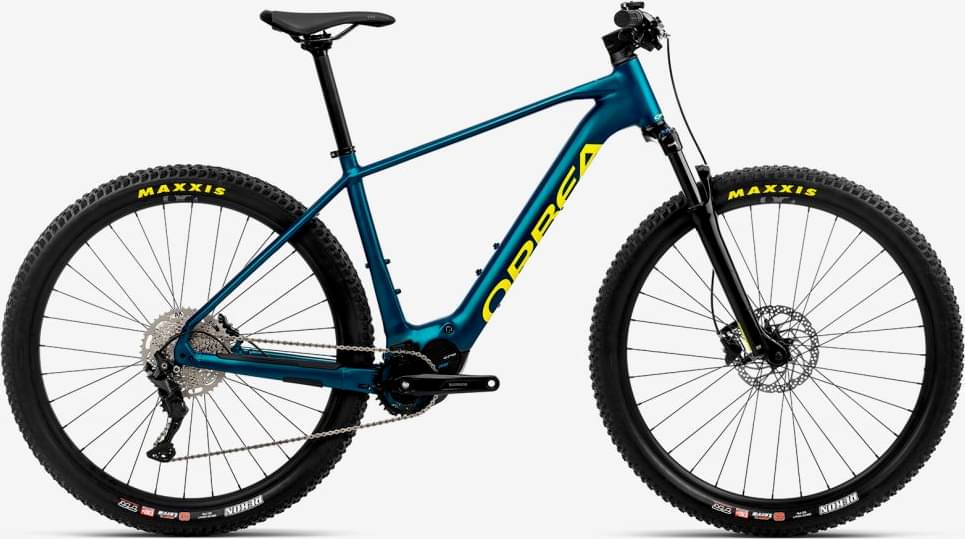

Orbea URRUN 40 20mph 2023
2023 E-bike
Estimate price |
3,399$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour X1
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Suspension Fork
SR Suntour X1 Coil LO 100mm QR
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100 11-46t 10-Speed
Crank
Alloy EP8 32t
Bottom Bracket
STEPS, press-fit
Chain
KMC e10 Turbo Silver
Chain Guide
Orbea Rise chainguide
Pedals
VP-537 Black
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy forged, 35mm interface, -6º, ICR
Handlebar
OC Mountain Control MC31, Rise20, Width 800
Headset
FSA 1-1/2" Integrated Aluminium Cup
Seat
Saddle
Selle Royal Vivo 145x269mm
Seatpost
Alloy, 31.6mm, Setback 0
Motor & Battery
Motor
Shimano EP600-RS
Battery
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.551 mm | 1.47 mm | 1.448 mm |
| Bottom Bracket Height | 322 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 703 mm | 711 mm | 734 mm | 781 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 117 mm | 138 mm | 120 mm |
| Stack | 631 mm | 628 mm | 647 mm | 666 mm |
| Reach | 395 mm | 405 mm | 440 mm | 460 mm |
| Top Tube Length | 565 mm | 579 mm | 608 mm | 645 mm |
| Seat Tube Angle | 74.8 ° | 74.6 ° | 74.6 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 453 mm | 483 mm | 533 mm |
| Head Tube Angle | 65.5 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 115 mm | 132 mm | 153 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1143 mm | 1150 mm | 1173 mm | 1220 mm |
| Bottom Bracket Drop | 54 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 798 mm | 826 mm | 848 mm | 882 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
Model Overview
URRUN 40 20mph completes the Orbea E Urrun model. 10 e-bikes variations carry this model name so far. Take a sneak peek at all Orbea E Urrun e-bikes models from 2023, by clicking here.
Model range prices
Orbea URRUN 40 20mph 2023 is the most affordable e-bike of this model and has a price of 3399$. On the other hand, Orbea URRUN 10 2023, is the most expensive and costs 5716$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Orbea URRUN 40 20mph price was 3399$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 38.57% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Suntour X1 is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on URRUN 40 20mph are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The URRUN 40 20mph has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
