Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
Suspension Fork
Speed 400mm Carbon Flat mount
Drivetrain
Rear Derailleur
Shimano Sora 3000GS
Front Derailleur
Shimano Sora 3000
Shift Levers
Shimano Sora
Cassette
Shimano HG400 11-34t 9-Speed
Crank
Prowheel 32x48 Steel Custom logo
Chain
Shimano HG53 9-Speed
Wheels
Rims
Orbea Airline Corsa Disc 700X19c
Tires
Kenda K1098 700x32 Reflective Tape
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy 31.8mm interface 7º
Handlebar
Alloy 31.8mm Riser 640mm
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seat
Saddle
Selle Royal Asphalt GR
Seatpost
Alloy 27.2 Offset 0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.53 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 283 mm | 283 mm | 285 mm |
| Front Center | 596 mm | 612 mm | 626 mm | 637 mm | 648 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 66 mm | 66 mm | 66 mm | 64 mm | 60 mm |
| Stack | 531 mm | 548 mm | 567 mm | 588 mm | 621 mm |
| Reach | 374 mm | 384 mm | 391 mm | 401 mm | 406 mm |
| Top Tube Length | 517 mm | 542 mm | 555 mm | 576 mm | 597 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 525 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 109 mm | 127 mm | 150 mm | 170 mm | 200 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1017 mm | 1033 mm | 1048 mm | 1059 mm | 1071 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 68 mm | 68 mm | 66 mm |
| Standover Height | 734 mm | 764 mm | 796 mm | 820 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |

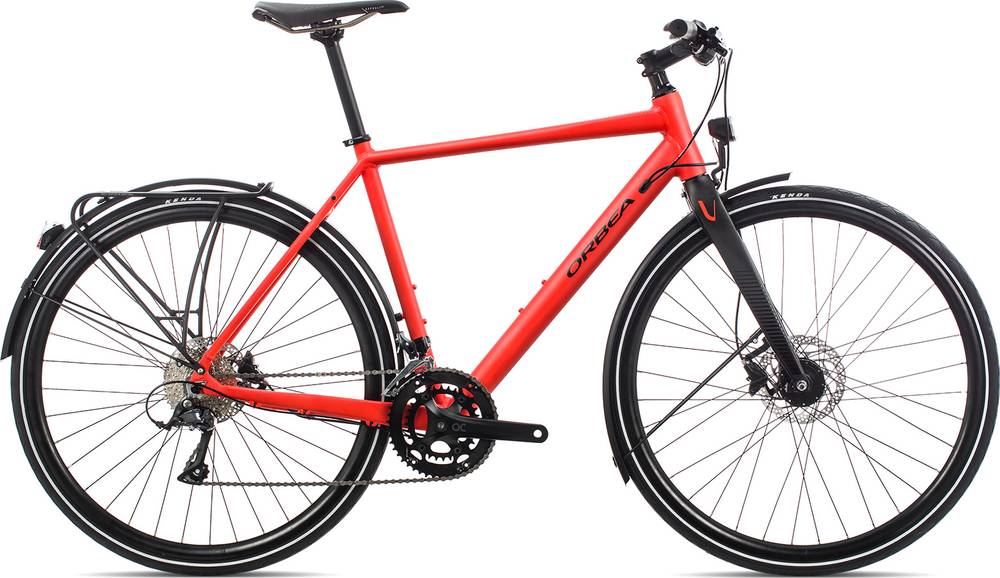

About this model
VECTOR 15 completes the Orbea Vector model. Orbea launched 28 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Orbea VECTOR DROP 2020 is the cheapest bike model and costs 1699$. Orbea VECTOR DROP LTD 2020 is the most expensive one and costs 1999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
General Urban bikes average price
If you want to purchase a solid General Urban bike, it is important to know that the average cost is 499$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on VECTOR 15 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
VECTOR 15 comes in 5 sizes, that range from 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
