Bike details
Overview
Key information split into simple groups.

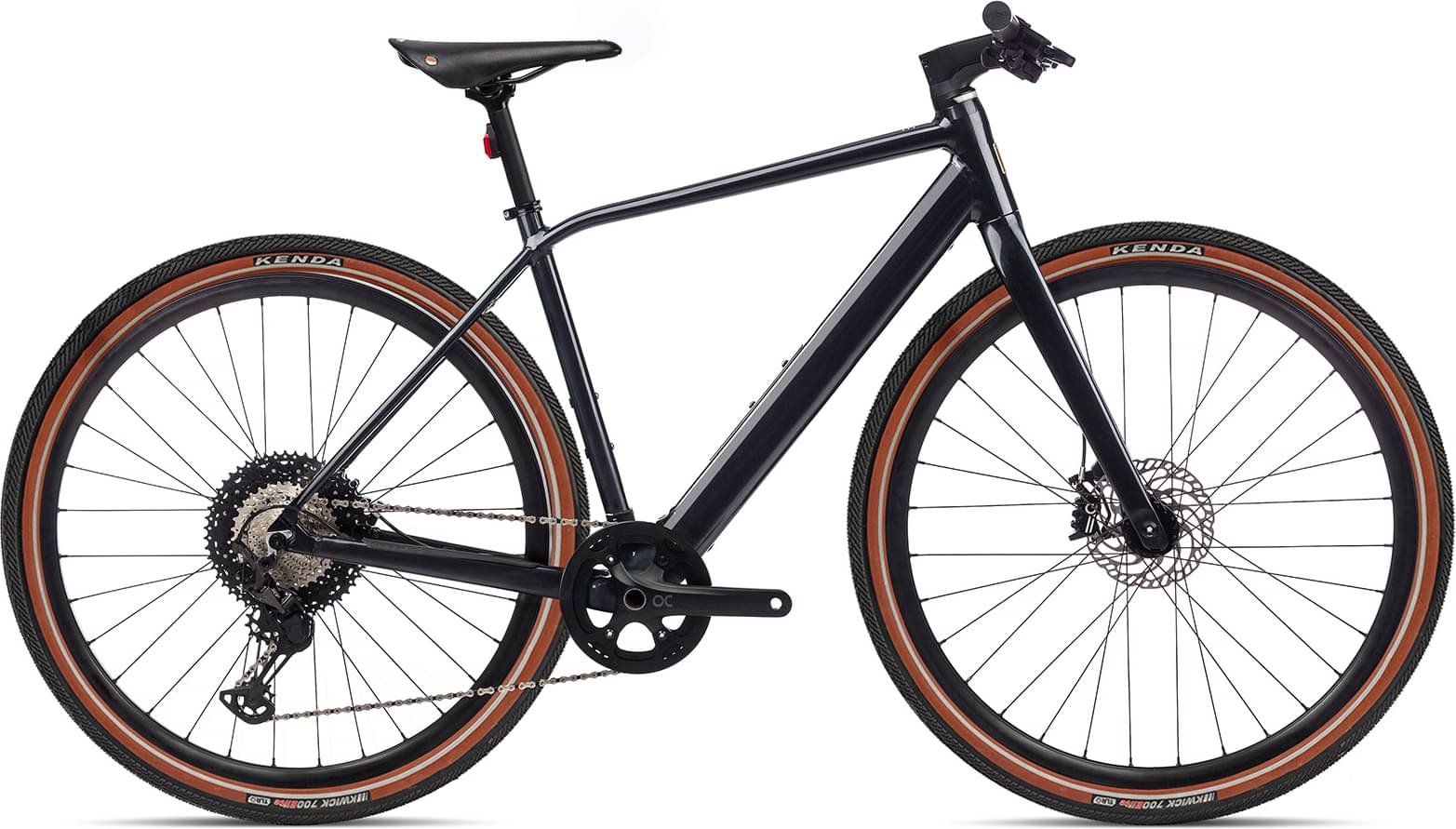

Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset XT, Deore -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 181cm
LG
179cm - 196cm
XL
194cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Suspension Fork
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Crank
OC 42t, w/Chainguard
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X12
Pedals
VP-537 Black
Wheels
Rims
Ready GR
Tires
Kenda K1052 700x45C Reflective type TLR
Brakes
Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Grips
Brooks Comfort Cambium 130mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Brooks Cambium C15 283x140
Seatpost
OC 27.2 Offset 0, for integrated light
Motor & Battery
Motor
Mahle motor hub X35 Plus 25kmh
Battery
Mahle 36V/6.9A 248Wh ANT+
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 585 mm | 611 mm | 641 mm | 667 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 70 mm | 70 mm | 67 mm |
| Stack | 554 mm | 589 mm | 619 mm | 654 mm |
| Reach | 374 mm | 394 mm | 414 mm | 434 mm |
| Top Tube Length | 511 mm | 534 mm | 551 mm | 575 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 490 mm | 530 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 109 mm | 144 mm | 175 mm | 210 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1012 mm | 1039 mm | 1069 mm | 1095 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 779 mm | 813 mm | 846 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 179 cm | 194 cm |
| Rider Max Height | 166 cm | 181 cm | 196 cm | 205 cm |
Model Overview
VIBE H10 is part of the Orbea E Vibe model. Orbea released 61 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Orbea VIBE MID H30 2022 is the most affordable e-bike of this model and has a price of 2760$. On the other hand, Orbea VIBE MID H10 EQ 20mph 2022, is the most expensive and costs 4099$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 3609$. Doing a quick comparison, we notice that VIBE H10 price is 40.48% more expensive than the average cost of a Commuter e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
VIBE H10 components
Fork material
VIBE H10 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The VIBE H10 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea VIBE H10 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 150 cm – 205 cm (4.92 ft – 6.73 ft). In conclusion, it won’t take much to find one that’s right for you.
