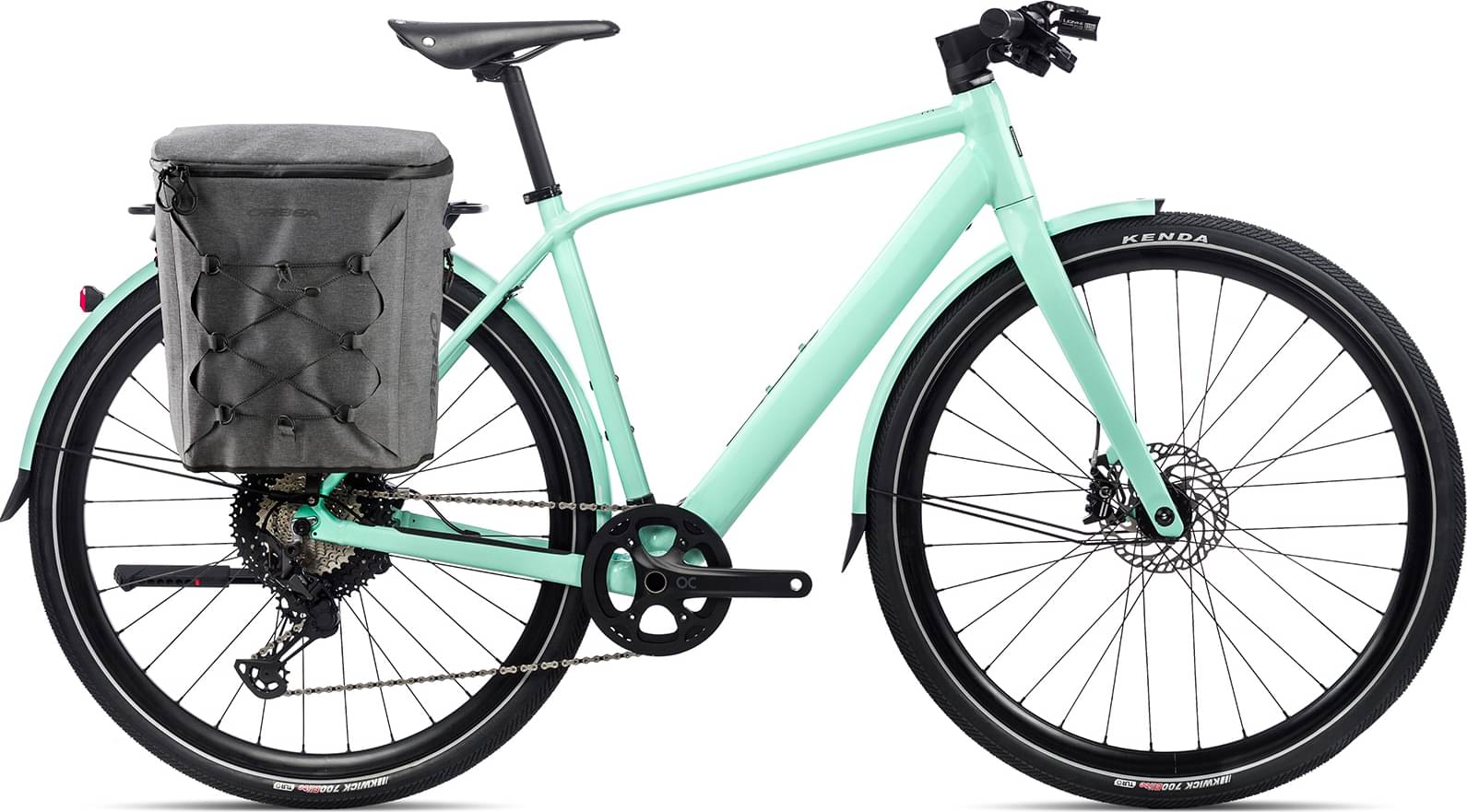

Orbea VIBE H10 EQ 20mph 2022
2022 E-bike
Estimate price |
4,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset XT, Deore -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 181cm
LG
179cm - 196cm
XL
194cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Suspension Fork
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Crank
OC 42t, w/Chainguard
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X12
Pedals
VP-537 Black
Wheels
Rims
Ready GR
Tires
Kenda K1052 700x45C Reflective type TLR
Brakes
Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Grips
Brooks Comfort Cambium 130mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Brooks Cambium C15 283x140
Seatpost
Alloy 27.2 Offset 20
Motor & Battery
Motor
Mahle motor hub X35 Plus 20mph
Battery
Mahle 36V/6.9A 248Wh ANT+
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 585 mm | 611 mm | 641 mm | 667 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 70 mm | 70 mm | 67 mm |
| Stack | 554 mm | 589 mm | 619 mm | 654 mm |
| Reach | 374 mm | 394 mm | 414 mm | 434 mm |
| Top Tube Length | 511 mm | 534 mm | 551 mm | 575 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 490 mm | 530 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 109 mm | 144 mm | 175 mm | 210 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1012 mm | 1039 mm | 1069 mm | 1095 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 779 mm | 813 mm | 846 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 179 cm | 194 cm |
| Rider Max Height | 166 cm | 181 cm | 196 cm | 205 cm |
Model Overview
VIBE H10 EQ 20mph completes the Orbea E Vibe model. Orbea released 61 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Orbea VIBE MID H30 2022 has a starting price of 2760$. Orbea VIBE MID H10 EQ 20mph 2022 on the other hand is the most expensive at 4099$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Orbea released this model in 2022, its price was 4099$. Comparing this to the average Commuter e-bike price, we see that the price is 59.56% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Orbea VIBE H10 EQ 20mph 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea VIBE H10 EQ 20mph has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 150 cm – 205 cm (4.92 ft – 6.73 ft). In short, it won’t be difficult to find the right one for you.
