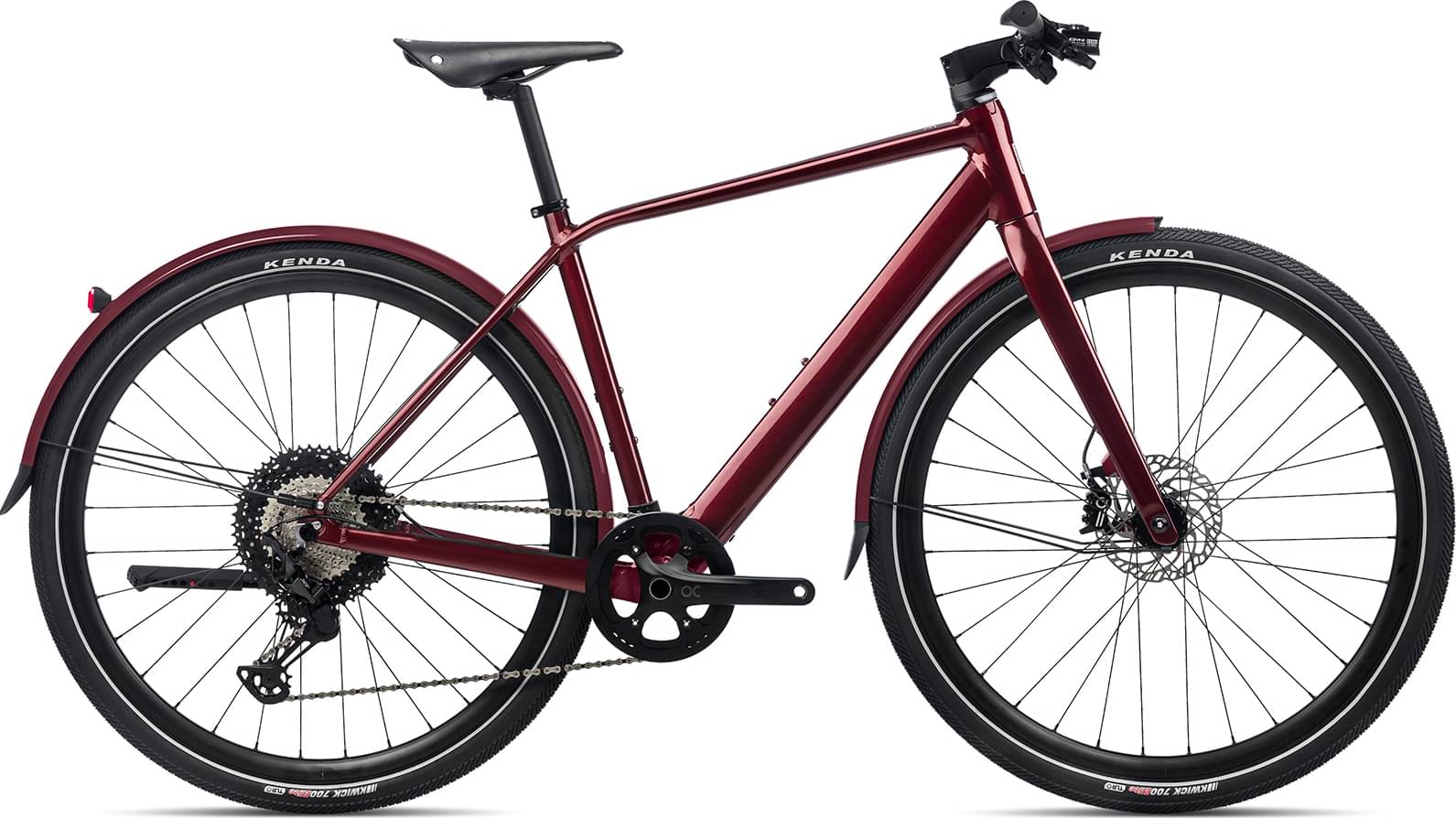

Orbea VIBE H10 MUD 20mph 2022
2022 E-bike
Estimate price |
3,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset XT, Deore -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 181cm
LG
179cm - 196cm
XL
194cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Suspension Fork
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Crank
OC 42t, w/Chainguard
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X12
Pedals
VP-537 Black
Wheels
Rims
Ready GR
Tires
Kenda K1052 700x45C Reflective type TLR
Brakes
Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Grips
Brooks Comfort Cambium 130mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Brooks Cambium C15 283x140
Seatpost
Alloy 27.2 Offset 20
Motor & Battery
Motor
Mahle motor hub X35 Plus 20mph
Battery
Mahle 36V/6.9A 248Wh ANT+
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 585 mm | 611 mm | 641 mm | 667 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 70 mm | 70 mm | 67 mm |
| Stack | 554 mm | 589 mm | 619 mm | 654 mm |
| Reach | 374 mm | 394 mm | 414 mm | 434 mm |
| Top Tube Length | 511 mm | 534 mm | 551 mm | 575 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 490 mm | 530 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 109 mm | 144 mm | 175 mm | 210 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1012 mm | 1039 mm | 1069 mm | 1095 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 779 mm | 813 mm | 846 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 179 cm | 194 cm |
| Rider Max Height | 166 cm | 181 cm | 196 cm | 205 cm |
Model Overview
VIBE H10 MUD 20mph completes the Orbea E Vibe model. 61 e-bikes variations carry this model name so far. Take a sneak peek at all Orbea E Vibe e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Orbea VIBE MID H30 2022 has a starting price of 2760$. Orbea VIBE MID H10 EQ 20mph 2022 on the other hand is the most expensive at 4099$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 3999$. In conclusion, this e-bike price is 55.66% more expensive than the price of the average Commuter e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
VIBE H10 MUD 20mph components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the VIBE H10 MUD 20mph e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea VIBE H10 MUD 20mph is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Orbea VIBE H10 MUD 20mph e-bike has 4 sizes, in the range of 150 cm – 205 cm (4.92 ft – 6.73 ft). In conclusion, you won’t have a problem finding one that suits you.
