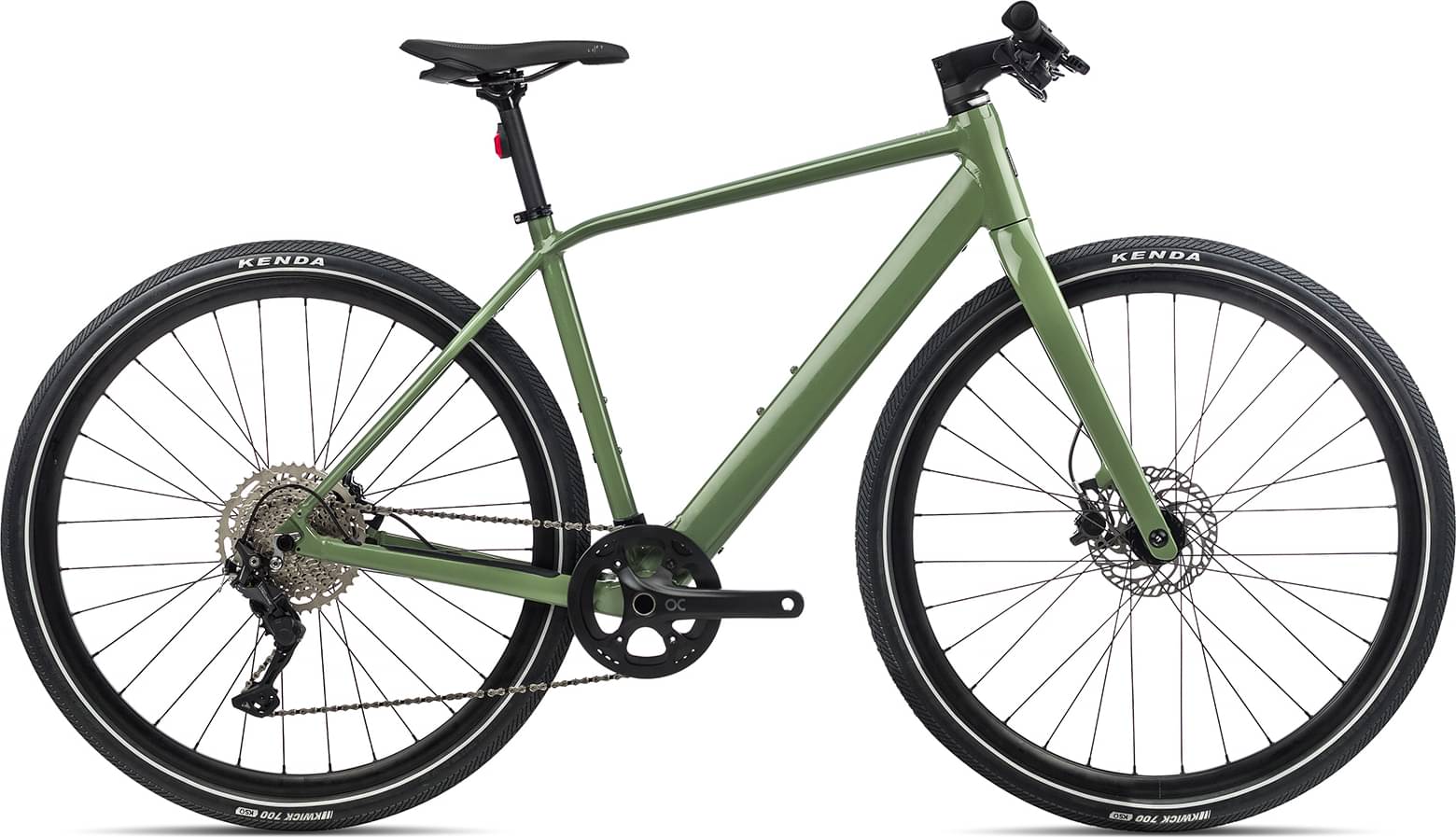

Orbea VIBE H30 20mph 2022
2022 E-bike
Estimate price |
3,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 181cm
LG
179cm - 196cm
XL
194cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Suspension Fork
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100 11-46t 10-Speed
Crank
OC 42t, w/Chainguard
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X10
Pedals
VP-537 Black
Wheels
Rims
Ready GR
Tires
Kenda K1052 700x45C Reflective type+puncture protection
Brakes
Brakes
Magura MT30 Hydraulic Disc Easy Route Connection
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Selle Royal Lift 1215 URN 278x145mm
Seatpost
OC 27.2 Offset 0, for integrated light
Motor & Battery
Motor
Mahle motor hub X35 Plus 20mph
Battery
Mahle 36V/6.9A 248Wh ANT+
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 585 mm | 611 mm | 641 mm | 667 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 70 mm | 70 mm | 67 mm |
| Stack | 554 mm | 589 mm | 619 mm | 654 mm |
| Reach | 374 mm | 394 mm | 414 mm | 434 mm |
| Top Tube Length | 511 mm | 534 mm | 551 mm | 575 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 490 mm | 530 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 109 mm | 144 mm | 175 mm | 210 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1012 mm | 1039 mm | 1069 mm | 1095 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 779 mm | 813 mm | 846 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 179 cm | 194 cm |
| Rider Max Height | 166 cm | 181 cm | 196 cm | 205 cm |
About this model
VIBE H30 20mph belongs to the Orbea E Vibe model. There are 61 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Orbea VIBE MID H30 2022 has a starting price of 2760$. Orbea VIBE MID H10 EQ 20mph 2022 on the other hand is the most expensive at 4099$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 3199$. Comparing the average cost of a Commuter e-bike to this one, you will see that VIBE H30 20mph price is 24.52% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
VIBE H30 20mph has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Orbea VIBE H30 20mph 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
VIBE H30 20mph comes in 4 sizes, that range from 150 cm – 205 cm (4.92 ft – 6.73 ft). In conclusion, it won’t take much to find one that’s right for you.
