Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 181cm
LG
179cm - 196cm
XL
194cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Suspension Fork
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100 11-46t 10-Speed
Crank
OC 42t, w/Chainguard
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X10
Wheels
Rims
Ready GR
Tires
Kenda K1052 700x45C Reflective type+puncture protection
Brakes
Brakes
Magura MT30 Hydraulic Disc Easy Route Connection
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Selle Royal Lift 1215 URN 278x145mm
Seatpost
Alloy 27.2 Offset 20
Motor & Battery
Motor
Ebikemotion X35 Plus 25kmh
Battery
Ebikemotion 36V/6.9A 248Wh ANT+
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 585 mm | 611 mm | 641 mm | 667 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 70 mm | 70 mm | 67 mm |
| Stack | 554 mm | 589 mm | 619 mm | 654 mm |
| Reach | 374 mm | 394 mm | 414 mm | 434 mm |
| Top Tube Length | 511 mm | 534 mm | 551 mm | 575 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 455 mm | 490 mm | 530 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 109 mm | 144 mm | 175 mm | 210 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1012 mm | 1039 mm | 1069 mm | 1095 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 779 mm | 813 mm | 846 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 179 cm | 194 cm |
| Rider Max Height | 166 cm | 181 cm | 196 cm | 205 cm |
About this model

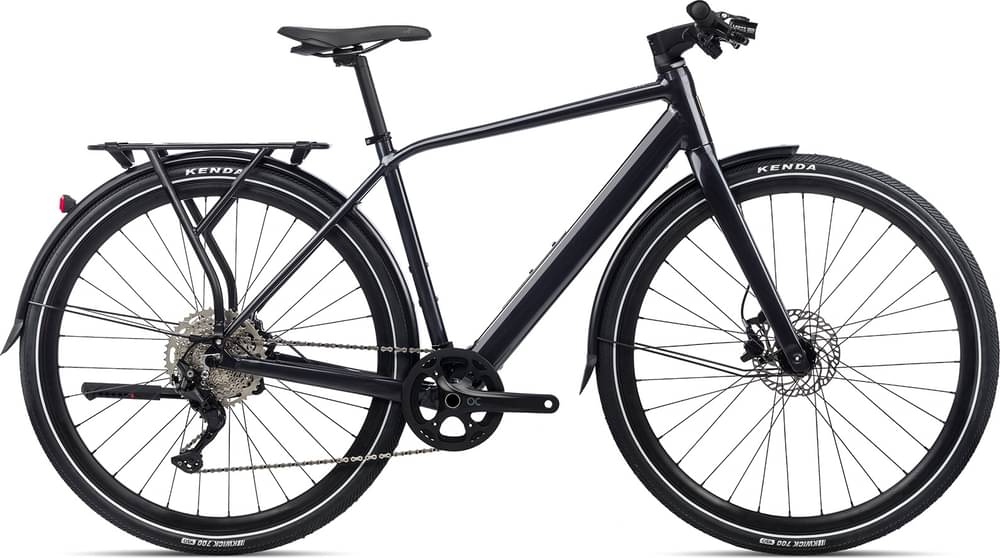

VIBE H30 EQ completes the Orbea E Vibe model. 61 e-bikes variations carry this model name so far. Take a sneak peek at all Orbea E Vibe e-bikes models from 2021, by clicking here.
Model range prices
Orbea VIBE H30 2021 is the most economical model, with a starting price of 2626$. Orbea VIBE H10 EQ 2021 on the other hand costs 3770$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Urban e-bikes
If you want to purchase a solid General Urban e-bike, it is important to know that the average cost is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Orbea VIBE H30 EQ price was 3040$. In conclusion, this e-bike price is 44.9% more expensive than the price of the average General Urban e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on VIBE H30 EQ are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea VIBE H30 EQ is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Orbea VIBE H30 EQ e-bike has 4 sizes, in the range of 150 cm – 205 cm (4.92 ft – 6.73 ft). In short, you can easily find one that suits you.
