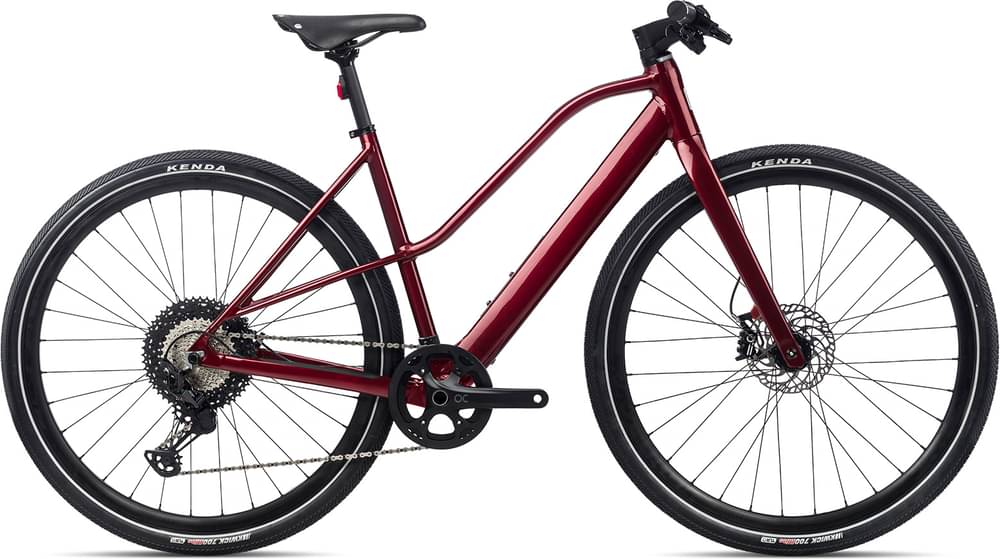

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset XT, Deore -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Suspension Fork
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Crank
OC 42t, w/Chainguard
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X12
Wheels
Rims
Ready GR
Tires
Kenda K1052 700x45C Reflective type TLR
Brakes
Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Grips
Brooks Comfort Cambium 130mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Brooks Cambium C19 275x184
Seatpost
OC 27.2 Offset 0, for integrated light
Motor & Battery
Motor
Ebikemotion X35 Plus 25kmh
Battery
Ebikemotion 36V/6.9A 248Wh ANT+
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.52 mm | 1.53 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 585 mm | 604 mm | 616 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 74 mm | 70 mm |
| Stack | 554 mm | 584 mm | 604 mm |
| Reach | 374 mm | 384 mm | 394 mm |
| Top Tube Length | 593 mm | 593 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 455 mm | 490 mm | 525 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 109 mm | 141 mm | 160 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1012 mm | 1032 mm | 1044 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm |
| Standover Height | 779 mm | 810 mm | 836 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 190 cm |
Model Overview
VIBE MID H10 completes the Orbea E Vibe model. Orbea launched 61 e-bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Orbea VIBE H30 2021 is the most affordable e-bike of this model and has a price of 2626$. On the other hand, Orbea VIBE H10 EQ 2021, is the most expensive and costs 3770$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, this doesn’t mean that if you spend less money on a General Urban e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 3405$. In conclusion, this e-bike price is 62.3% more expensive than the price of the average General Urban e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The VIBE MID H10 2021 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The VIBE MID H10 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Orbea VIBE MID H10 e-bike has 3 sizes, in the range of 150 cm – 190 cm (4.92 ft – 6.23 ft). In conclusion, it won’t take much to find one that’s right for you.
