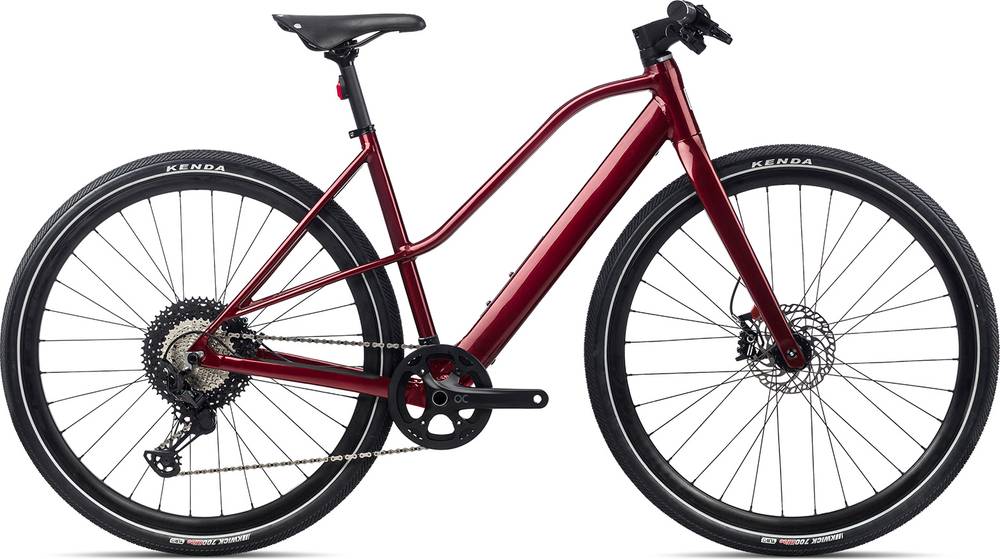

Orbea VIBE MID H10 20mph 2021
2021 E-bike
Estimate price |
3,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset XT, Deore -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Suspension Fork
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Crank
OC 42t, w/Chainguard
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X12
Wheels
Rims
Ready GR
Tires
Kenda K1052 700x45C Reflective type TLR
Brakes
Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Grips
Brooks Comfort Cambium 130mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Brooks Cambium C19 275x184
Seatpost
OC 27.2 Offset 0, for integrated light
Motor & Battery
Motor
Ebikemotion X35 Plus 20mph
Battery
Ebikemotion 36V/6.9A 248Wh ANT+
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.52 mm | 1.53 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 585 mm | 604 mm | 616 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 74 mm | 70 mm |
| Stack | 554 mm | 584 mm | 604 mm |
| Reach | 374 mm | 384 mm | 394 mm |
| Top Tube Length | 593 mm | 593 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 455 mm | 490 mm | 525 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 109 mm | 141 mm | 160 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1012 mm | 1032 mm | 1044 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm |
| Standover Height | 779 mm | 810 mm | 836 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 190 cm |
Model Overview
VIBE MID H10 20mph is an Orbea E Vibe model. 61 e-bikes variations carry this model name so far. Take a sneak peek at all Orbea E Vibe e-bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Orbea VIBE MID H30 2021 has a starting price of 2626$. Orbea VIBE H10 EQ 2021 on the other hand is the most expensive at 3770$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 3499$. In conclusion, this e-bike price is 66.78% more expensive than the price of the average General Urban e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on VIBE MID H10 20mph are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The VIBE MID H10 20mph has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Orbea VIBE MID H10 20mph e-bike has 3 sizes, in the range of 150 cm – 190 cm (4.92 ft – 6.23 ft). In conclusion, you won’t have a problem finding one that suits you.
