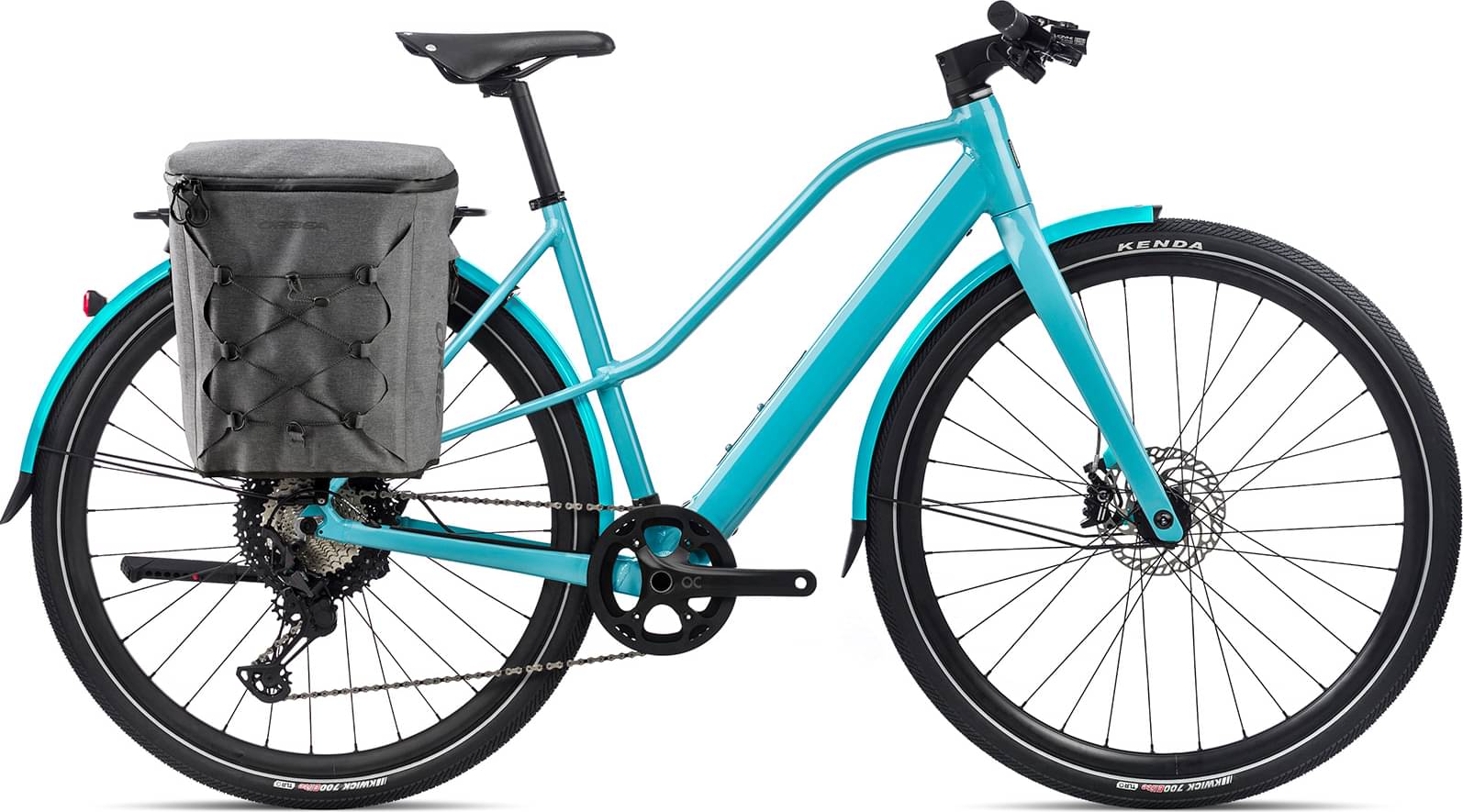

Orbea VIBE MID H10 EQ 2022
2022 E-bike
Estimate price |
4,357$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset XT, Deore -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Suspension Fork
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Crank
OC 42t, w/Chainguard
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X12
Pedals
VP-537 Black
Wheels
Rims
Ready GR
Tires
Kenda K1052 700x45C Reflective type TLR
Brakes
Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Grips
Brooks Comfort Cambium 130mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Brooks Cambium C19 275x184
Seatpost
Alloy 27.2 Offset 20
Motor & Battery
Motor
Mahle motor hub X35 Plus 25kmh
Battery
Mahle 36V/6.9A 248Wh ANT+
Charger
Mahle X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.52 mm | 1.53 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 585 mm | 604 mm | 616 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 74 mm | 70 mm |
| Stack | 554 mm | 584 mm | 604 mm |
| Reach | 374 mm | 384 mm | 394 mm |
| Top Tube Length | 521 mm | 544 mm | 566 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 455 mm | 490 mm | 525 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 109 mm | 141 mm | 160 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1012 mm | 1032 mm | 1044 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm |
| Standover Height | 779 mm | 810 mm | 836 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 190 cm |
About this model
VIBE MID H10 EQ is part of the Orbea E Vibe model. Orbea launched 61 e-bikes of this model so far. You can easily view all of the Orbea E Vibe e-bikes models from 2022, here.
Model range prices
Orbea VIBE MID H30 2022 is the most affordable e-bike of this model and has a price of 2760$. On the other hand, Orbea VIBE MID H10 EQ 20mph 2022, is the most expensive and costs 4099$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 4034$. Comparing the average cost of a Commuter e-bike to this one, you will see that VIBE MID H10 EQ price is 57.03% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
VIBE MID H10 EQ components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Orbea VIBE MID H10 EQ 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The VIBE MID H10 EQ comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 150 cm – 190 cm (4.92 ft – 6.23 ft). In short, it won’t be difficult to find the right one for you.
