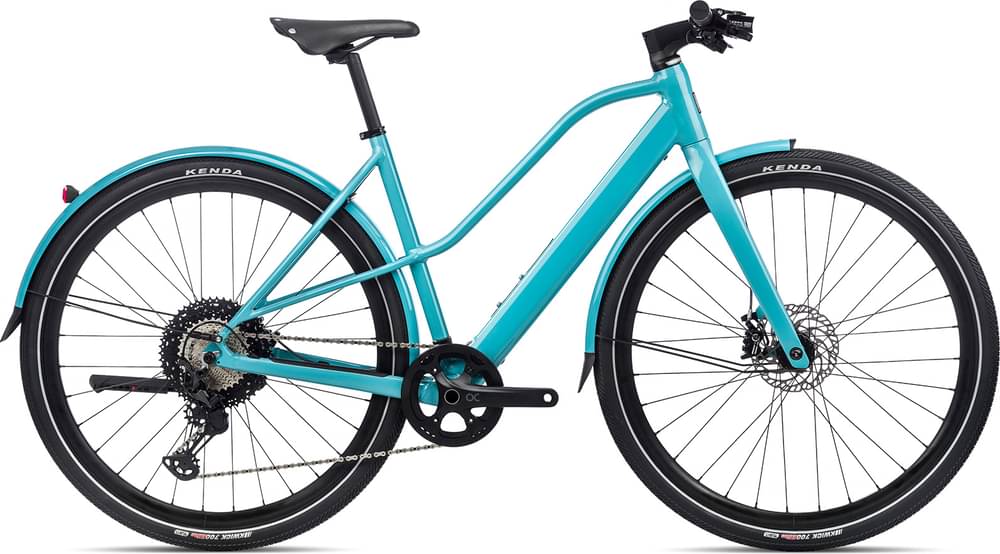

Orbea VIBE MID H10 MUD 2021
2021 E-bike
Estimate price |
4,013$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset XT, Deore -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Suspension Fork
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Crank
OC 42t, w/Chainguard
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X12
Wheels
Rims
Ready GR
Tires
Kenda K1052 700x45C Reflective type TLR
Brakes
Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Grips
Brooks Comfort Cambium 130mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Brooks Cambium C19 275x184
Seatpost
Alloy 27.2 Offset 20
Motor & Battery
Motor
Ebikemotion X35 Plus 25kmh
Battery
Ebikemotion 36V/6.9A 248Wh ANT+
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.52 mm | 1.53 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 585 mm | 604 mm | 616 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 74 mm | 70 mm |
| Stack | 554 mm | 584 mm | 604 mm |
| Reach | 374 mm | 384 mm | 394 mm |
| Top Tube Length | 593 mm | 593 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 455 mm | 490 mm | 525 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 109 mm | 141 mm | 160 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1012 mm | 1032 mm | 1044 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm |
| Standover Height | 779 mm | 810 mm | 836 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 190 cm |
Model Overview
VIBE MID H10 MUD is part of the Orbea E Vibe model. Orbea released 61 e-bikes variations of this model so far. You can easily view all of the Orbea E Vibe e-bikes models from 2021, here.
Model range prices
Orbea VIBE MID H30 2021 is the most economical model, with a starting price of 2626$. Orbea VIBE H10 EQ 2021 on the other hand costs 3770$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Urban e-bikes
If you want an acceptable General Urban e-bike you should know that the average price is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3648$. Doing a quick comparison, we notice that VIBE MID H10 MUD price is 73.88% higher than the average cost of a General Urban e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
VIBE MID H10 MUD components
Fork material
The fork on this e-bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the VIBE MID H10 MUD model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea VIBE MID H10 MUD has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Orbea VIBE MID H10 MUD e-bike has 3 sizes, in the range of 150 cm – 190 cm (4.92 ft – 6.23 ft). In short, you can easily find one that suits you.
