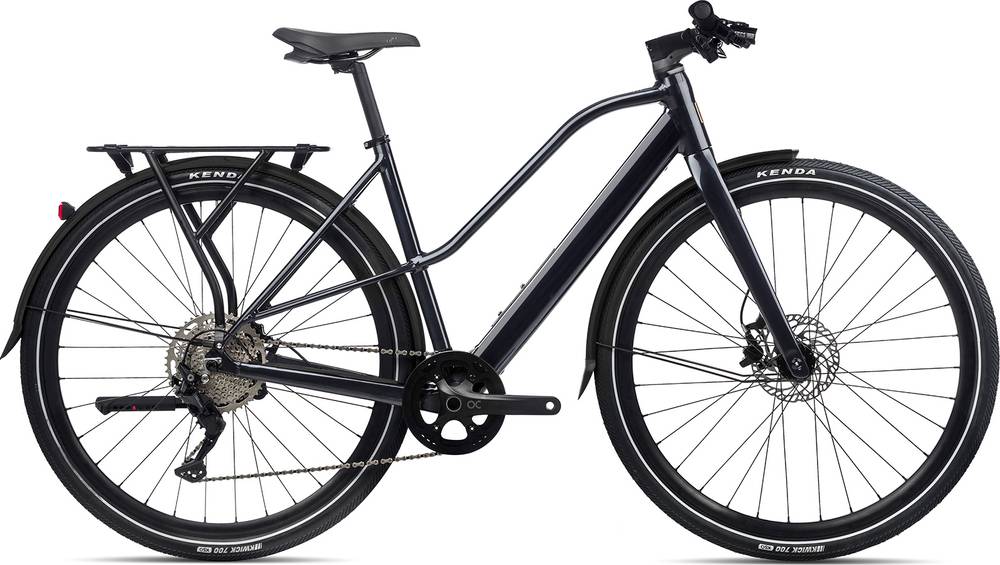

Orbea VIBE MID H30 EQ 20mph 2021
2021 E-bike
Estimate price |
3,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Suspension Fork
Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Drivetrain
Rear Derailleur
Shimano Deore M5120 SGS Shadow Plus
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100 11-46t 10-Speed
Crank
OC 42t, w/Chainguard
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X10
Wheels
Rims
Ready GR
Tires
Kenda K1052 700x45C Reflective type+puncture protection
Brakes
Brakes
Magura MT30 Hydraulic Disc Easy Route Connection
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
Alloy 31.8mm 12mm Rise 700mm
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Selle Royal Lift 1404 HRN 266x170mm
Seatpost
Alloy 27.2 Offset 20
Motor & Battery
Motor
Ebikemotion X35 Plus 20mph
Battery
Ebikemotion 36V/6.9A 248Wh ANT+
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.52 mm | 1.53 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 585 mm | 604 mm | 616 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 74 mm | 70 mm |
| Stack | 554 mm | 584 mm | 604 mm |
| Reach | 374 mm | 384 mm | 394 mm |
| Top Tube Length | 593 mm | 593 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 455 mm | 490 mm | 525 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 109 mm | 141 mm | 160 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1012 mm | 1032 mm | 1044 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm |
| Standover Height | 779 mm | 810 mm | 836 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 190 cm |
About this model
VIBE MID H30 EQ 20mph belongs to the Orbea E Vibe model. 61 e-bikes variations carry this model name so far. Take a sneak peek at all Orbea E Vibe e-bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Orbea VIBE MID H30 2021 has a starting price of 2626$. Orbea VIBE H10 EQ 2021 on the other hand is the most expensive at 3770$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Urban e-bikes
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2021 and its price was 3199$. If we compare this with the average General Urban e-bike cost we notice that the price is 52.48% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
VIBE MID H30 EQ 20mph components
Fork material
The fork on this e-bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Orbea VIBE MID H30 EQ 20mph 2021, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The VIBE MID H30 EQ 20mph has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 150 cm – 190 cm (4.92 ft – 6.23 ft). In short, you can easily find one that suits you.
