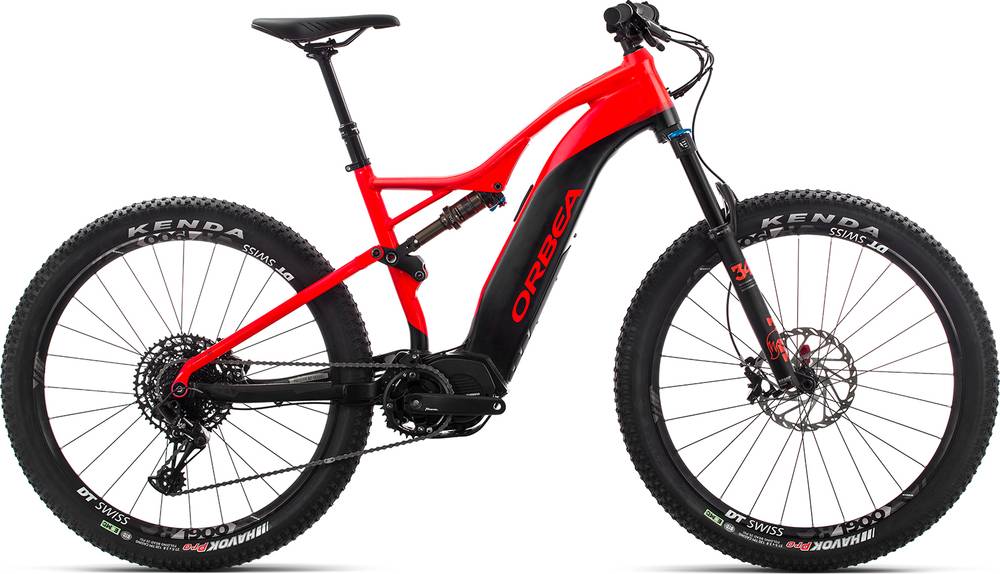

Orbea WILD FS 30 27S USA 2019
2019 E-bike
Estimate price |
4,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 34
-
Groupset NX Eagle, SRAM -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Steps E8010 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ORBEA WILD Full Suspension 2019 Hydroformed Alloy 140mm Travel Boost 12X148 for Shimano E8000/7000
Suspension Fork
Fox 34 Float Performance 140 3-Position QR15x110 E-Bike Optimized
Rear Shock
Fox Float DPS Performance 3-Position Evol custom tune 200x51mm
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle Single click
Cassette
SRAM NX PG-1230 Eagle 11-50t 12-Speed
Crank
SRAM X-SYNC Eagle 34T
Chain
SRAM NX Eagle 12-Speed
Chain Guide
Orbea OC chainguide
Pedals
VP-537 Black
Wheels
Rims
DT Swiss H-1900 Spline 35c TLR 15/110mm IS (6-bolt)
Tires
Kenda 1184A Havok 27,5x2,8" 120TPI TLR (E-MTB specific)
Brakes
Brakes
SRAM Guide Hydraulic disc
Cockpit
Stem
Orbea 35mm interface
Handlebar
Orbea 35mm Riser 780mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Royal 2077 DRN
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm
Motor & Battery
Motor
Shimano Steps DU-E8000 20mph
Battery
Shimano Steps E8010
Remote
Shimano Steps SC-E8000
Charger
Shimano Steps E6000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.57 mm | 1.51 mm | 1.46 mm |
| Bottom Bracket Height | 337.5 mm | 337.5 mm | 337.5 mm | 337.5 mm |
| Front Center | 684 mm | 704 mm | 735 mm | 767 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 627 mm | 639 mm | 653 mm | 668 mm |
| Reach | 392 mm | 407 mm | 432 mm | 457 mm |
| Top Tube Length | 572 mm | 588 mm | 617 mm | 646 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 128 mm | 143 mm | 159 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1139 mm | 1159 mm | 1190 mm | 1222 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 722 mm | 752 mm | 772 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 166 cm | 176 cm | 186 cm | cm |
About this model
WILD FS 30 27S USA completes the Orbea E Wild model. Orbea launched 77 e-bikes of this model so far. Take a sneak peek at all Orbea E Wild e-bikes models from 2019, by clicking here.
Model range prices
Orbea WILD FS 30 27S USA 2019 is the most economical model, with a starting price of 4999$. Orbea WILD FS 150 20 29S USA 2019 on the other hand costs 6799$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2019 and its price was 4999$. In conclusion, this e-bike price is 48.56% more expensive than the price of the average Trail e-bike.
Overview of components
Fork
This e-bike has the Fox Performance Float 34 fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the Fox Float DPS Performance 3-Position Evol custom tune 200x51mm model, with a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Orbea WILD FS 30 27S USA 2019, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the WILD FS 30 27S USA. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
