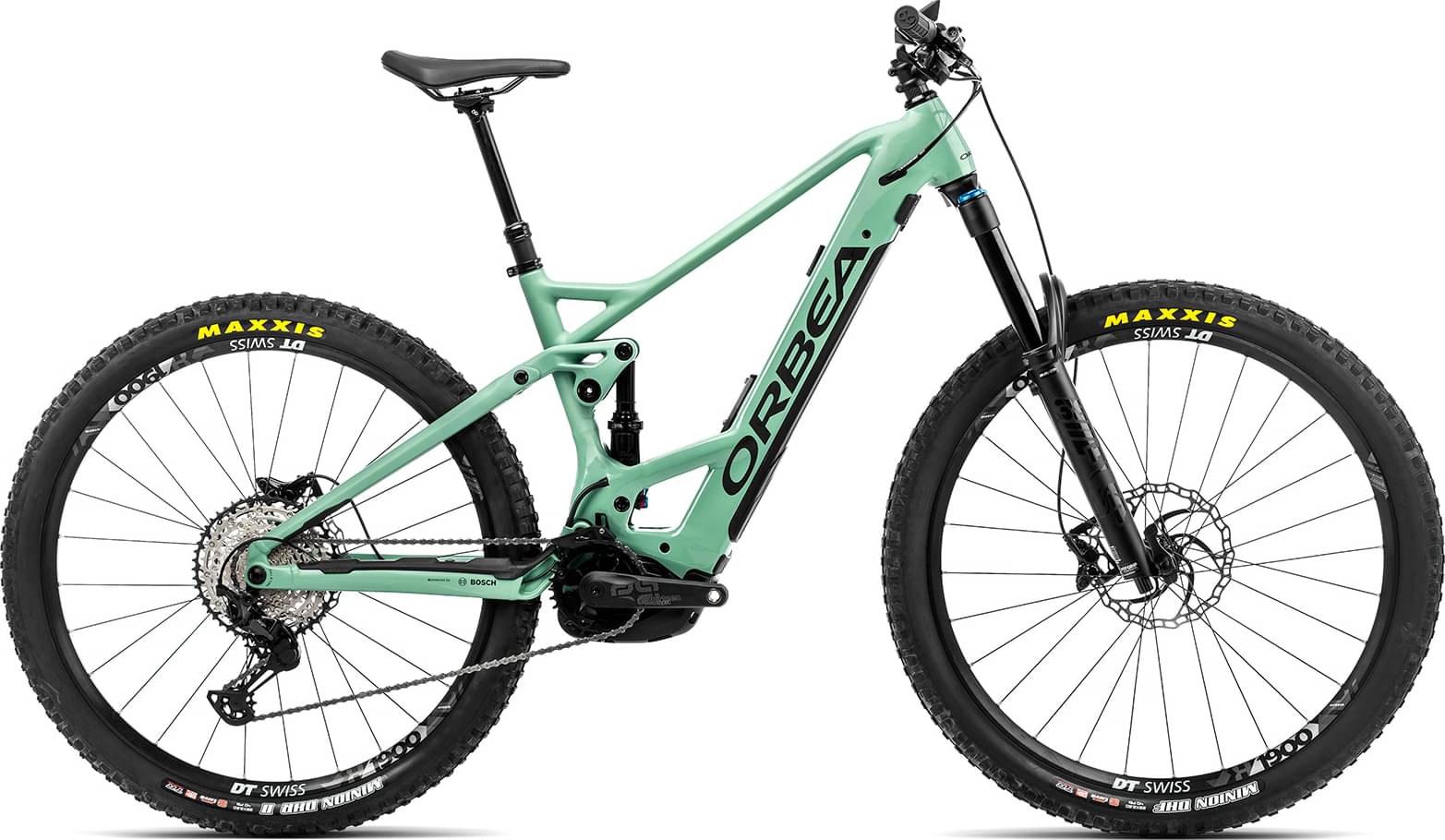

Orbea WILD FS H10 20mph 2022
2022 E-bike
Estimate price |
7,399$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH Powertube 625Wh Horizontal US BBP295 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ORBEA WILD Full Suspension 2021 Hydroformed Alloy 160mm Travel Boost 12x148 Bosch Gen4
Suspension Fork
Fox 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized
Rear Shock
Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
PW-NW32-G4
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100
Chain Guide
Orbea OC chainguide 32-38t
Wheels
Rims
DT Swiss H-1900 Spline 30c TLR 15/110mm 6-Bolt
Tires
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Brakes
Brakes
Shimano MT420 Hydraulic Disc
Cockpit
Stem
OC1 3D Forged 35mm interface 7º
Handlebar
OC1 35mm 12mm Rise 780mm
Headset
OC Key Holder
Seat
Saddle
Fizik Aidon 208x145mm manganese rail
Seatpost
OC MC20 Mountain Control Dropper, 31,6mm
Motor & Battery
Motor
BOSCH Performance CX Cruise (20mph) BDU480CX
Battery
BOSCH Powertube 625Wh Horizontal US BBP295
Remote
BOSCH Display unit KIOX Black BUI330
Charger
Compact Charger 2A (100-240V) Worldwide
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 750 mm | 779 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 121 mm | 121 mm |
| Stack | 627 mm | 636 mm | 650 |
| Reach | 436 mm | 461 mm | 491 mm |
| Top Tube Length | 591 mm | 618 mm | 651 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1209 mm | 1238 mm | 1274 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 731 mm | 746 mm | 771 mm |
| Wheels | 29" | 29" | 29" |
About this model
WILD FS H10 20mph belongs to the Orbea E Wild model. Orbea launched 77 e-bikes of this model so far. Take a sneak peek at all Orbea E Wild e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Orbea WILD HT 30 27 2022 has a starting price of 3715$. Orbea WILD FS M-LTD 2022 on the other hand is the most expensive at 11148$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 7399$. Comparing this to the average Enduro e-bike price, we see that the price is 54.63% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 38 model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Orbea WILD FS H10 20mph e-bike has the Fox Float DPS Performance Trunnion 3-Position model installed, and has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The WILD FS H10 20mph 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea WILD FS H10 20mph has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Orbea WILD FS H10 20mph includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
