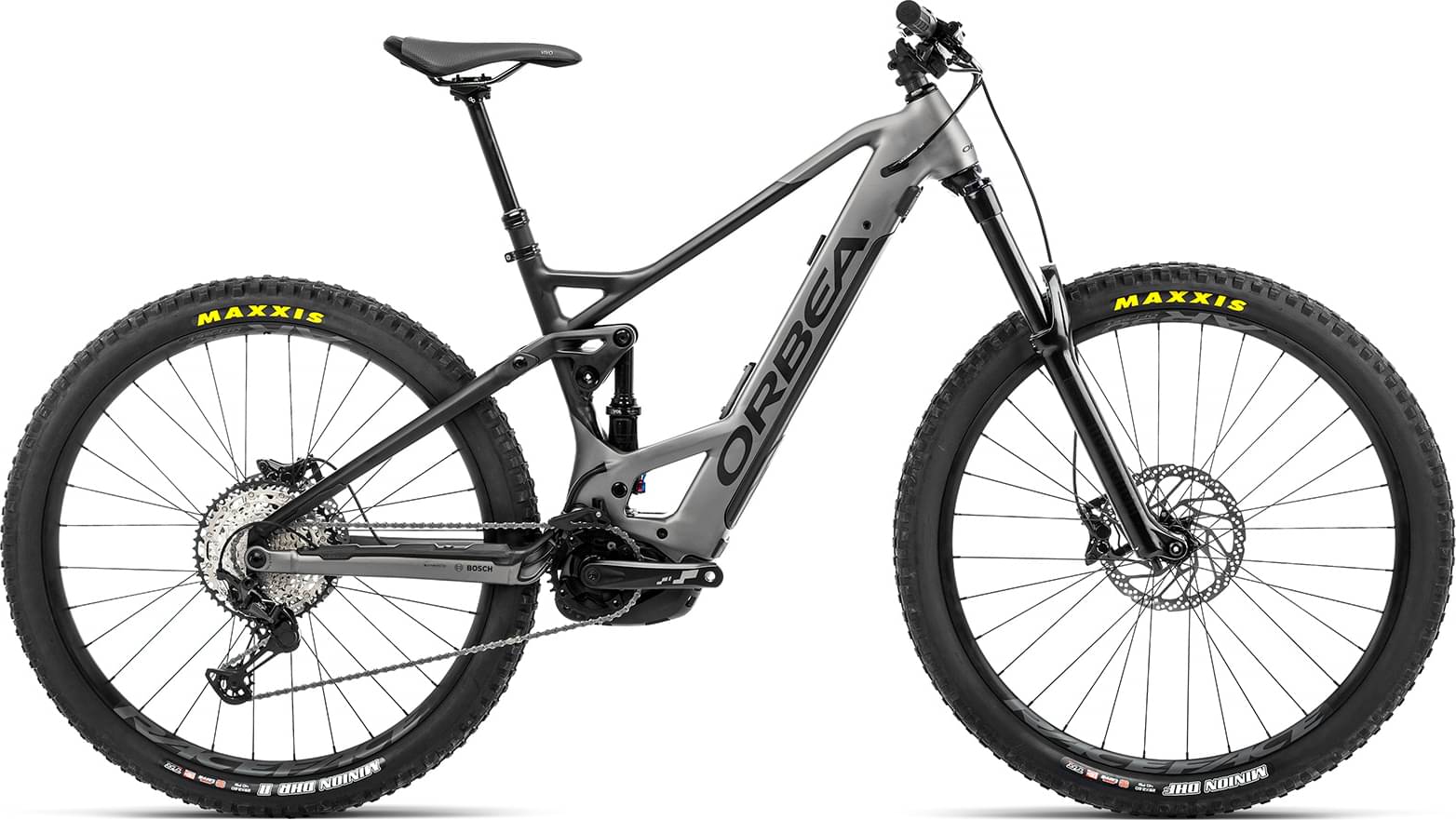

Orbea WILD FS H20 20mph 2022
2022 E-bike
Estimate price |
6,799$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH Powertube 625Wh Horizontal US BBP295 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ORBEA WILD Full Suspension 2021 Hydroformed Alloy 160mm Travel Boost 12x148 Bosch Gen4
Suspension Fork
RockShox 35 Silver TK Crown adjust Q15x110 Solo Air 160mm
Rear Shock
Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Shimano CS-M7100 10-51t 12-Speed
Crank
PW EB04-NW32 G4
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100
Chain Guide
Orbea OC chainguide 32-38t
Wheels
Rims
Race Face AR 30c Tubeless Ready
Tires
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Brakes
Brakes
Shimano MT420 Hydraulic Disc
Cockpit
Stem
OC1 3D Forged 35mm interface 7º
Handlebar
OC1 35mm 12mm Rise 780mm
Seat
Saddle
Selle Royal Vivo
Seatpost
OC MC20 Mountain Control Dropper, 31,6mm
Motor & Battery
Motor
BOSCH Performance CX Cruise (20mph) BDU480CX
Battery
BOSCH Powertube 625Wh Horizontal US BBP295
Remote
BOSCH Performance Purion
Charger
Compact Charger 2A (100-240V) Worldwide
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 750 mm | 779 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 121 mm | 121 mm |
| Stack | 627 mm | 636 mm | 650 |
| Reach | 436 mm | 461 mm | 491 mm |
| Top Tube Length | 591 mm | 618 mm | 651 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1209 mm | 1238 mm | 1274 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 731 mm | 746 mm | 771 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
WILD FS H20 20mph is part of the Orbea E Wild model. Orbea released 77 e-bikes variations of this model so far. Take a sneak peek at all Orbea E Wild e-bikes models from 2022, by clicking here.
Model range prices
Orbea WILD HT 30 27 2022 is the cheapest e-bike model and costs 3715$. Orbea WILD FS M-LTD 2022 is the most expensive one and costs 11148$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 6799$. In conclusion, this e-bike price is 42.09% more expensive than the price of the average Enduro e-bike.
WILD FS H20 20mph components
Fork
The WILD FS H20 20mph comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the Fox Float DPS Performance Trunnion 3-Position model, with a travel of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The WILD FS H20 20mph 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Orbea WILD FS H20 20mph includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
