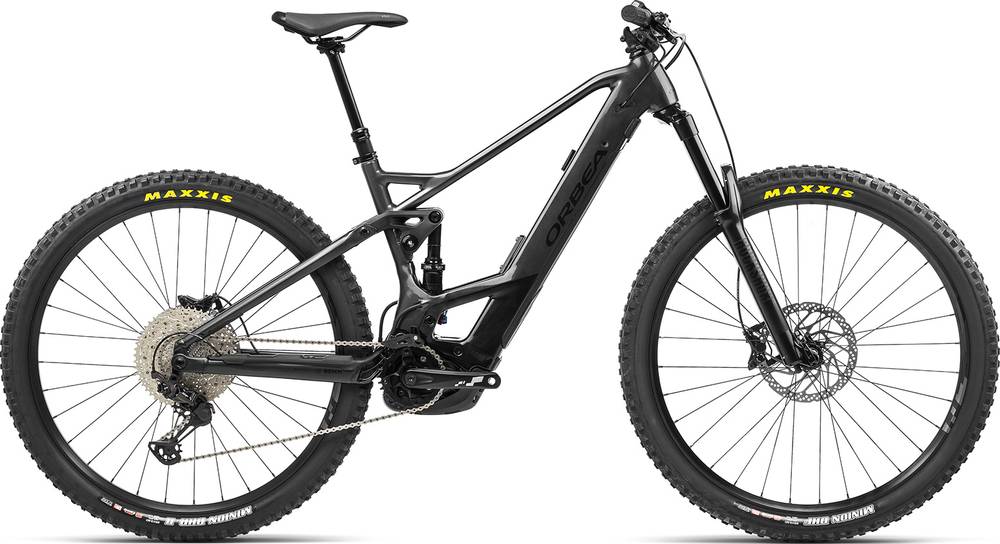

Orbea WILD FS H30 20mph 2021
2021 E-bike
Estimate price |
5,399$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Gold RL
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH Powertube 500Wh Horizontal US BBP285 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ORBEA WILD Full Suspension 2021 Hydroformed Alloy 160mm Travel Boost 12x148 Bosch Gen4
Suspension Fork
RockShox 35 Gold RL Crown adjust Q15x110 DebonAir e-MTB 160mm
Rear Shock
Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100 I-Spec EV
Cassette
Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Crank
PW EB04-NW32 G4
Bottom Bracket
Bosch, press-fit
Chain
KMC e12 Turbo Silver
Chain Guide
Orbea OC chainguide 32-38t
Wheels
Rims
Orbea Tryp 30c Disc Tubeless ready
Tires
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Brakes
Brakes
Shimano M420 Hydraulic Disc
Cockpit
Stem
OC1 3D Forged 35mm interface 7º
Handlebar
OC1 35mm 12mm Rise 780mm
Seat
Saddle
Selle Royal Vivo
Seatpost
OC2 Dropper 31.6mm
Motor & Battery
Motor
BOSCH Performance CX Cruise (20mph) BDU480CX
Battery
BOSCH Powertube 500Wh Horizontal US BBP285
Remote
BOSCH Performance Purion
Charger
Compact Charger 2A (100-240V) Worldwide
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 750 mm | 779 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 121 mm | 121 mm |
| Stack | 627 mm | 636 mm | 650 |
| Reach | 436 mm | 461 mm | 491 mm |
| Top Tube Length | 591 mm | 618 mm | 651 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1209 mm | 1238 mm | 1274 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 731 mm | 746 mm | 771 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
WILD FS H30 20mph is an Orbea E Wild model. 77 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Orbea WILD FS H30 20mph 2021 is the cheapest e-bike model and costs 5399$. Orbea WILD FS M-LTD 20mph 2021 is the most expensive one and costs 9999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Orbea WILD FS H30 20mph price was 5399$. Doing a quick comparison, we notice that WILD FS H30 20mph price is 12.83% higher than the average cost of an Enduro e-bike.
WILD FS H30 20mph components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The WILD FS H30 20mph has a rear shock with a travel of 160mm. The model Fox Float DPS Performance Trunnion 3-Position is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the WILD FS H30 20mph model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The WILD FS H30 20mph has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Orbea WILD FS H30 20mph includes a dropper post. Therefore, climbing or descending will be a breeze.
