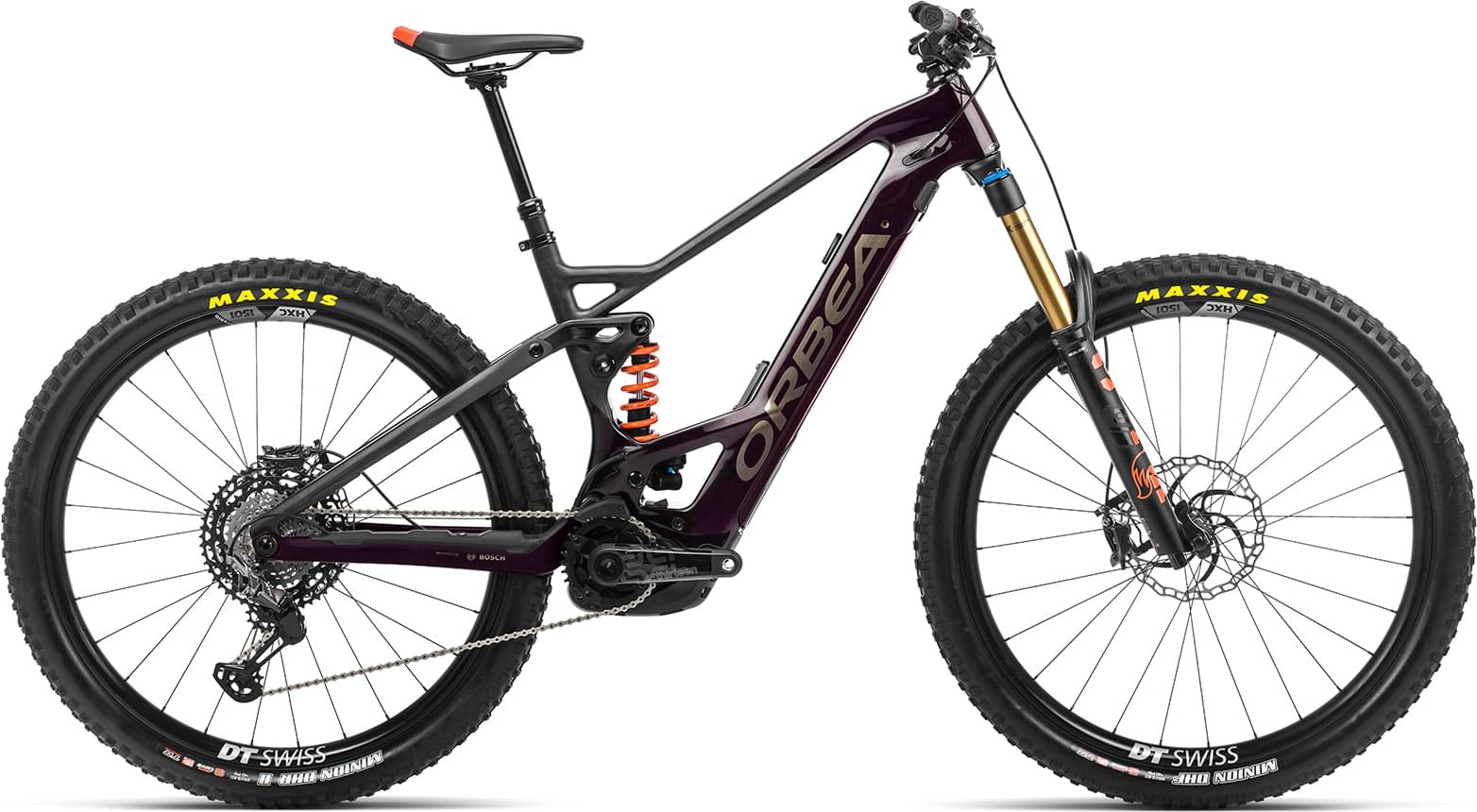

Orbea WILD FS M-LTD 20mph 2022
2022 E-bike
Estimate price |
10,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XTR -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH Powertube 625Wh Horizontal US BBP295 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM/MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ORBEA WILD Full Suspension 2021 Carbon 160mm Travel, FRONT TRIANGLE: Carbon, REAR TRIANGLE: Carbon, FiberLink, BATTERY COVER: Carbon, Boost 12x148 Bosch Gen4
Suspension Fork
Fox 38 Float Factory 160 Grip2 QR15x110 Kashima E-Bike Optimized
Rear Shock
Fox DHX2 Factory Trunnion 2-Position Adjust SLS Spring TiN 205x65mm
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS Shadow Plus
Shift Levers
Shimano XTR M9100
Cassette
Shimano XTR M9100 10-51t 12-Speed
Crank
PW-NW32-G4
Bottom Bracket
Bosch, press-fit
Chain
KMC e12 Turbo Silver
Chain Guide
e*thirteen Plus Bosch BDU4 32-38t
Wheels
Rims
DT Swiss HXC-1501 Spline 30c TLR 15/110mm 6-Bolt
Tires
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Brakes
Brakes
Shimano XTR M9120Hydraulic Disc
Cockpit
Stem
Race Face Turbine R 35mm interface
Handlebar
Race Face Next R 35 20mm Rise 800mm
Headset
OC Key Holder
Seat
Saddle
Fizik Aidon 208x145mm manganese rail
Seatpost
OC MC20 Mountain Control Dropper, 31,6mm
Motor & Battery
Motor
BOSCH Performance CX Cruise (20mph) BDU480CX
Battery
BOSCH Powertube 625Wh Horizontal US BBP295
Remote
BOSCH Display unit KIOX Black BUI330
Charger
Compact Charger 2A (100-240V) Worldwide
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 750 mm | 779 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 121 mm | 121 mm |
| Stack | 627 mm | 636 mm | 650 |
| Reach | 436 mm | 461 mm | 491 mm |
| Top Tube Length | 591 mm | 618 mm | 651 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1209 mm | 1238 mm | 1274 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 731 mm | 746 mm | 771 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 175 cm | 185 cm | 198 cm |
Model Overview
WILD FS M-LTD 20mph is an Orbea E Wild model. Orbea launched 77 e-bikes of this model so far. Take a sneak peek at all Orbea E Wild e-bikes models from 2022, by clicking here.
Model range prices
Orbea WILD HT 30 27 2022 is the most economical model, with a starting price of 3715$. Orbea WILD FS M-LTD 2022 on the other hand costs 11148$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Orbea released this model in 2022, its price was 10999$. Doing a quick comparison, we notice that WILD FS M-LTD 20mph price is 129.86% higher than the average cost of an Enduro e-bike.
Overview of components
Fork
This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The WILD FS M-LTD 20mph has a rear shock with a travel of 160mm. The model Fox DHX2 Factory Trunnion 2-Position Adjust is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on WILD FS M-LTD 20mph are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea WILD FS M-LTD 20mph is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the WILD FS M-LTD 20mph. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
