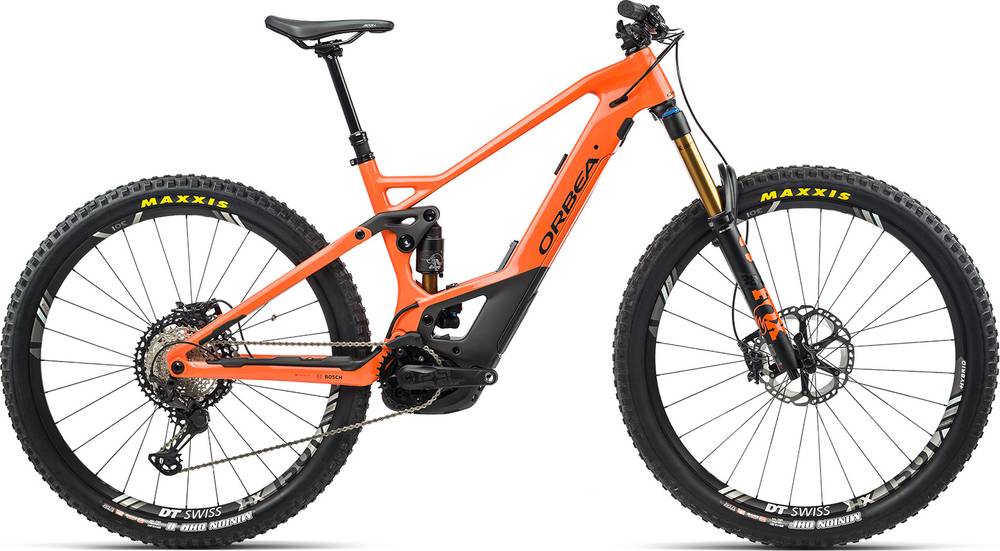

Orbea WILD FS M-TEAM 20mph 2020
2020 E-bike
Estimate price |
8,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH Powertube 625Wh Horizontal US BBP295 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM/MD
160cm - 175cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ORBEA WILD Full Suspension 2020 Carbon 160mm Travel, FRONT TRIANGLE: Carbon, REAR TRIANGLE: Carbon, FiberLink, BATTERY COVER: Carbon, Boost 12x148 Bosch Gen4
Suspension Fork
Fox 38 Float Factory 160 Grip2 QR15x110 Kashima E-Bike Optimized
Rear Shock
Fox Float X2 Factory Trunnion 2-Position Adjust Kashima custom tune 205x65mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano XT M8100 I-Spec EV
Cassette
Shimano CS-M8100 10-51t 12-Speed
Crank
PW-NW32-G4
Bottom Bracket
Bosch, press-fit
Chain
KMC e12 Turbo Silver
Chain Guide
Etherteen Plus Bosch BDU4 32-38t
Wheels
Rims
DT Swiss HX-1501 Spline 30c TLR 15/110mm CL
Tires
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Brakes
Brakes
Shimano XT M8120 Hydraulic Disc
Cockpit
Stem
Race Face Aeffect R 35mm interface
Handlebar
Race Face Next R 35 20mm Rise 800mm
Headset
OC Key Holder
Seat
Saddle
Fizik Aidon 208x145mm manganese rail
Seatpost
OC2 Dropper 31.6mm
Motor & Battery
Motor
BOSCH Performance CX Cruise (20mph) BDU480CX
Battery
BOSCH Powertube 625Wh Horizontal US BBP295
Remote
BOSCH Display unit KIOX Black BUI330
Charger
Compact Charger 2A (100-240V) Worldwide
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 750 mm | 779 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 121 mm | 121 mm |
| Stack | 627 mm | 636 mm | 650 |
| Reach | 436 mm | 461 mm | 491 mm |
| Top Tube Length | 591 mm | 618 mm | 651 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1209 mm | 1238 mm | 1274 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 731 mm | 746 mm | 771 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | cm | 180 cm |
| Rider Max Height | 175 cm | cm | 198 cm |
Model Overview
WILD FS M-TEAM 20mph is an Orbea E Wild model. Orbea launched 77 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Orbea WILD FS H30 20mph 2020 is the most economical model, with a starting price of 4999$. Orbea WILD FS M-LTD 20mph 2020 on the other hand costs 9599$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Orbea released this model in 2020, its price was 8699$. Comparing this to the average Enduro e-bike price, we see that the price is 81.8% higher.
WILD FS M-TEAM 20mph components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The WILD FS M-TEAM 20mph has a rear shock with a travel of 160mm. The model Fox Float X2 Factory Trunnion 2-Position is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Orbea WILD FS M-TEAM 20mph 2020, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The WILD FS M-TEAM 20mph has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Orbea WILD FS M-TEAM 20mph includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
