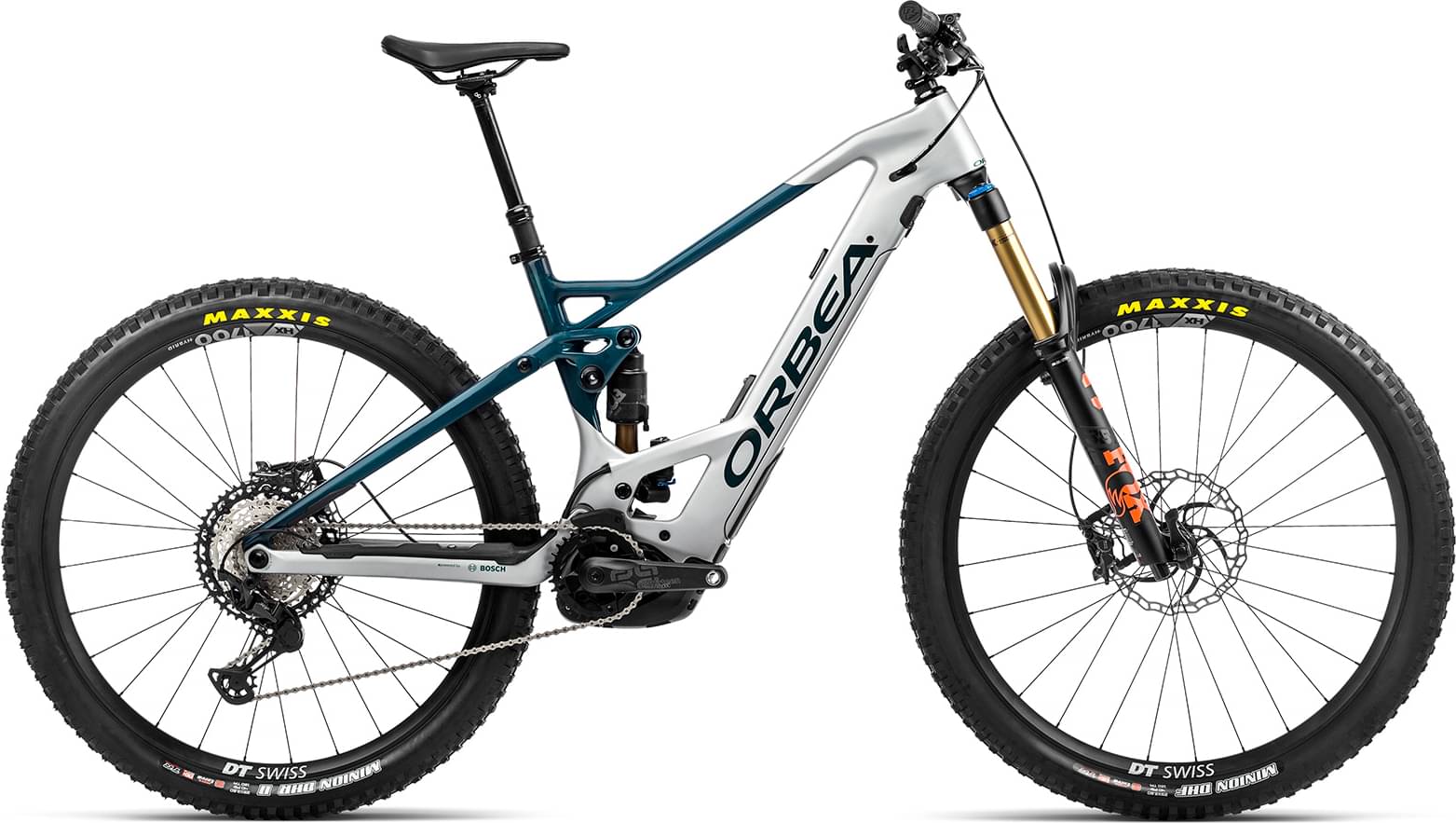

Orbea WILD FS M-TEAM 20mph 2022
2022 E-bike
Estimate price |
9,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH Powertube 625Wh Horizontal US BBP295 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM/MD
160cm - 175cm
LG
170cm - 185cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ORBEA WILD Full Suspension 2021 Carbon 160mm Travel, FRONT TRIANGLE: Carbon, REAR TRIANGLE: Carbon, FiberLink, BATTERY COVER: Carbon, Boost 12x148 Bosch Gen4
Suspension Fork
Fox 38 Float Factory 160 Grip2 QR15x110 Kashima E-Bike Optimized
Rear Shock
Fox Float X2 Factory Trunnion 2-Position Adjust Kashima custom tune 205x65mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano XT M8100 I-Spec EV
Cassette
Shimano CS-M8100 10-51t 12-Speed
Crank
PW-NW32-G4
Bottom Bracket
Bosch, press-fit
Chain
KMC e12 Turbo Silver
Chain Guide
e*thirteen Plus Bosch BDU4 32-38t
Wheels
Rims
DT Swiss HX-1700 Spline 30c TLR 15/110mm 6-Bolt
Tires
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Brakes
Brakes
Shimano XT M8120 Hydraulic Disc
Cockpit
Stem
Race Face Turbine R 35mm interface
Handlebar
Race Face Next R 35 20mm Rise 800mm
Headset
OC Key Holder
Seat
Saddle
Fizik Aidon 208x145mm manganese rail
Seatpost
OC MC20 Mountain Control Dropper, 31,6mm
Motor & Battery
Motor
BOSCH Performance CX Cruise (20mph) BDU480CX
Battery
BOSCH Powertube 625Wh Horizontal US BBP295
Remote
BOSCH Display unit KIOX Black BUI330
Charger
Compact Charger 2A (100-240V) Worldwide
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 750 mm | 779 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 121 mm | 121 mm |
| Stack | 627 mm | 636 mm | 650 |
| Reach | 436 mm | 461 mm | 491 mm |
| Top Tube Length | 591 mm | 618 mm | 651 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1209 mm | 1238 mm | 1274 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 731 mm | 746 mm | 771 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 175 cm | 185 cm | 198 cm |
About this model
WILD FS M-TEAM 20mph is an Orbea E Wild model. There are 77 e-bikes that carry this model name. You can easily view all of the Orbea E Wild e-bikes models from 2022, here.
Model range prices
Orbea WILD HT 30 27 2022 is the most affordable e-bike of this model and has a price of 3715$. On the other hand, Orbea WILD FS M-LTD 2022, is the most expensive and costs 11148$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Orbea released this model in 2022, its price was 9599$. Comparing this to the average Enduro e-bike price, we see that the price is 100.61% higher.
WILD FS M-TEAM 20mph components
Fork
This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the Fox Float X2 Factory Trunnion 2-Position model, with a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on WILD FS M-TEAM 20mph are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea WILD FS M-TEAM 20mph is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Orbea model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
