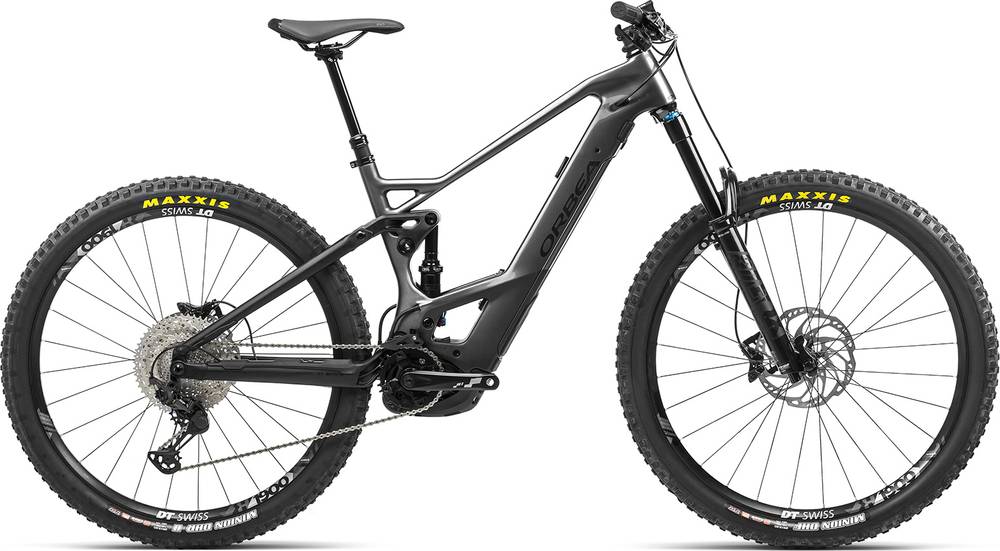

Orbea WILD FS M20 20mph 2020
2020 E-bike
Estimate price |
6,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH Powertube 625Wh Horizontal US BBP295 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM/MD
160cm - 175cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ORBEA WILD Full Suspension 2020 Carbon 160mm Travel FRONT TRIANGLE: Carbon, REAR TRIANGLE: Aluminum, AlloyLink, BATTERY COVER: Polymer, Boost 12x148 Bosch Gen4
Suspension Fork
Fox 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized
Rear Shock
Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100 I-Spec EV
Cassette
Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Crank
PW EB04-NW32 G4
Bottom Bracket
Bosch, press-fit
Chain
KMC e12 Turbo Silver
Chain Guide
Orbea OC chainguide 32-38t
Wheels
Rims
DT Swiss H-1900 Spline 30c TLR 15/110mm CL
Tires
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Brakes
Brakes
Shimano M420 Hydraulic Disc
Cockpit
Stem
OC1 3D Forged 35mm interface 7º
Handlebar
OC1 35mm 12mm Rise 780mm
Headset
OC Key Holder
Seat
Saddle
Selle Royal Vivo
Seatpost
OC2 Dropper 31.6mm
Motor & Battery
Motor
BOSCH Performance CX Cruise (20mph) BDU480CX
Battery
BOSCH Powertube 625Wh Horizontal US BBP295
Remote
BOSCH Performance Purion
Charger
Compact Charger 2A (100-240V) Worldwide
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 750 mm | 779 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 121 mm | 121 mm |
| Stack | 627 mm | 636 mm | 650 |
| Reach | 436 mm | 461 mm | 491 mm |
| Top Tube Length | 591 mm | 618 mm | 651 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1209 mm | 1238 mm | 1274 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 731 mm | 746 mm | 771 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | cm | 180 cm |
| Rider Max Height | 175 cm | cm | 198 cm |
About this model
WILD FS M20 20mph belongs to the Orbea E Wild model. There are 77 e-bikes that carry this model name. You can easily view all of the Orbea E Wild e-bikes models from 2020, here.
Model range prices
The most economical model, the Orbea WILD FS H30 20mph 2020 has a starting price of 4999$. Orbea WILD FS M-LTD 20mph 2020 on the other hand is the most expensive at 9599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 6299$. Comparing this to the average Enduro e-bike price, we see that the price is 31.64% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 38 model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The WILD FS M20 20mph has a rear shock with a travel of 160mm. The model Fox Float DPS Performance Trunnion 3-Position is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on WILD FS M20 20mph are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea WILD FS M20 20mph has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
The Orbea model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
