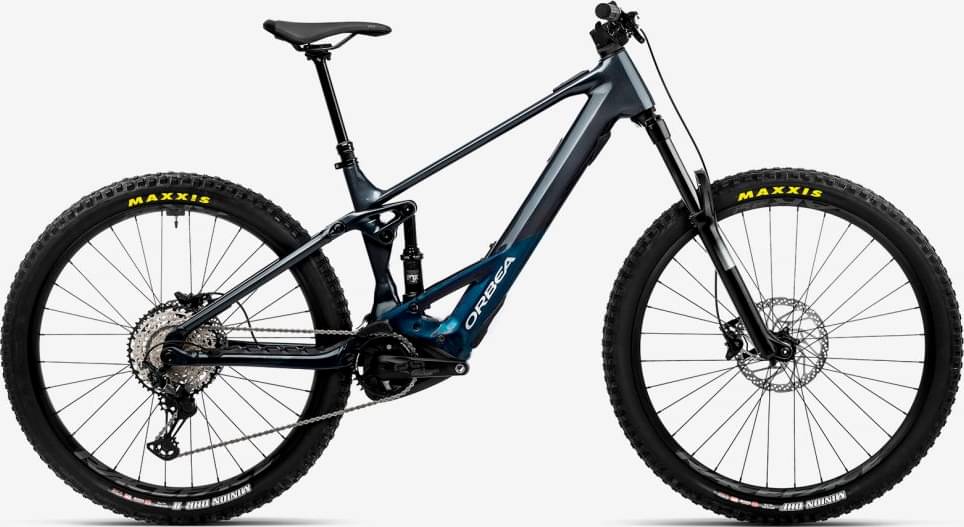

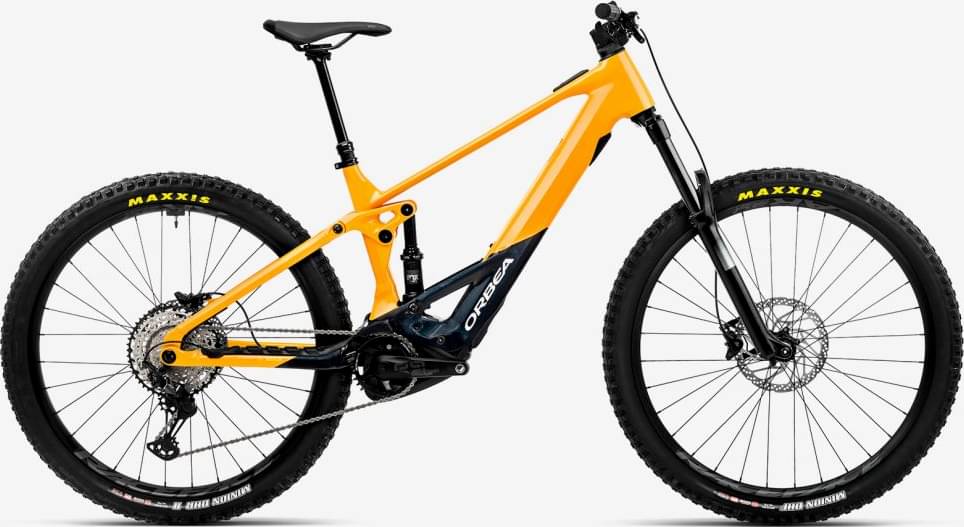

Orbea WILD H30 20mph 2023
2023 E-bike
Estimate price |
5,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH Powertube 625Wh Horizontal -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 175cm
MD
160cm - 185cm
LG
170cm - 195cm
XL
180cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Wild Hydro 2023, 160mm travel, 29" wheels, Concentric Boost 12x148
Suspension Fork
RockShox 35 Silver TK Q15x110 Solo Air 160mm
Rear Shock
Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Shimano CS-M6100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 34T Boost
Chain
Shimano M6100
Chain Guide
e*thirteen Plus Bosch CX Gen4 32-38t
Wheels
Rims
Race Face AR 30c Tubeless Ready
Tires
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Brakes
Brakes
Shimano MT410 Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC20, 0º
Handlebar
OC Mountain Control MC30, Rise20, Width 800
Headset
FSA 1-1/2" Integrated Aluminium Cup
Seat
Saddle
Selle Royal Vivo 145x269mm
Seatpost
OC Mountain Control MC20, 31.6mm, Dropper
Motor & Battery
Motor
BOSCH Performance Line CX BDU3741
Battery
BOSCH Powertube 625Wh Horizontal
Remote
BOSCH Mini Remote BRC3300
Charger
Bosch Charger 4A (110V) BPC3410
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 776 mm | 800 mm | 830 mm | 859 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 133 mm | 133 mm | 133 mm |
| Stack | 619 mm | 628 mm | 637 mm | 646 mm |
| Reach | 433 mm | 453 mm | 478 mm | 503 mm |
| Top Tube Length | 571 mm | 593 mm | 620 mm | 647 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 415 mm | 415 mm | 435 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1221 mm | 1245 mm | 1275 mm | 1304 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 698 mm | 698 mm | 698 mm | 698 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm | 205 cm |
About this model
WILD H30 20mph belongs to the Orbea E Wild model. 77 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Orbea WILD H30 20mph 2023 is the cheapest e-bike model and costs 5699$. Orbea WILD M-LTD 2023 is the most expensive one and costs 13800$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 5699$. Comparing this to the average Enduro e-bike price, we see that the price is 19.1% higher.
Overview of components
Fork
Orbea WILD H30 20mph 2023 e-bike is equipped with the RockShox 35 Silver fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the Fox Float DPS Performance Trunnion 3-Position model, with a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on WILD H30 20mph are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The WILD H30 20mph has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
WILD H30 20mph comes in 4 sizes, that range from 150 cm – 205 cm (4.92 ft – 6.73 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Orbea WILD H30 20mph includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
