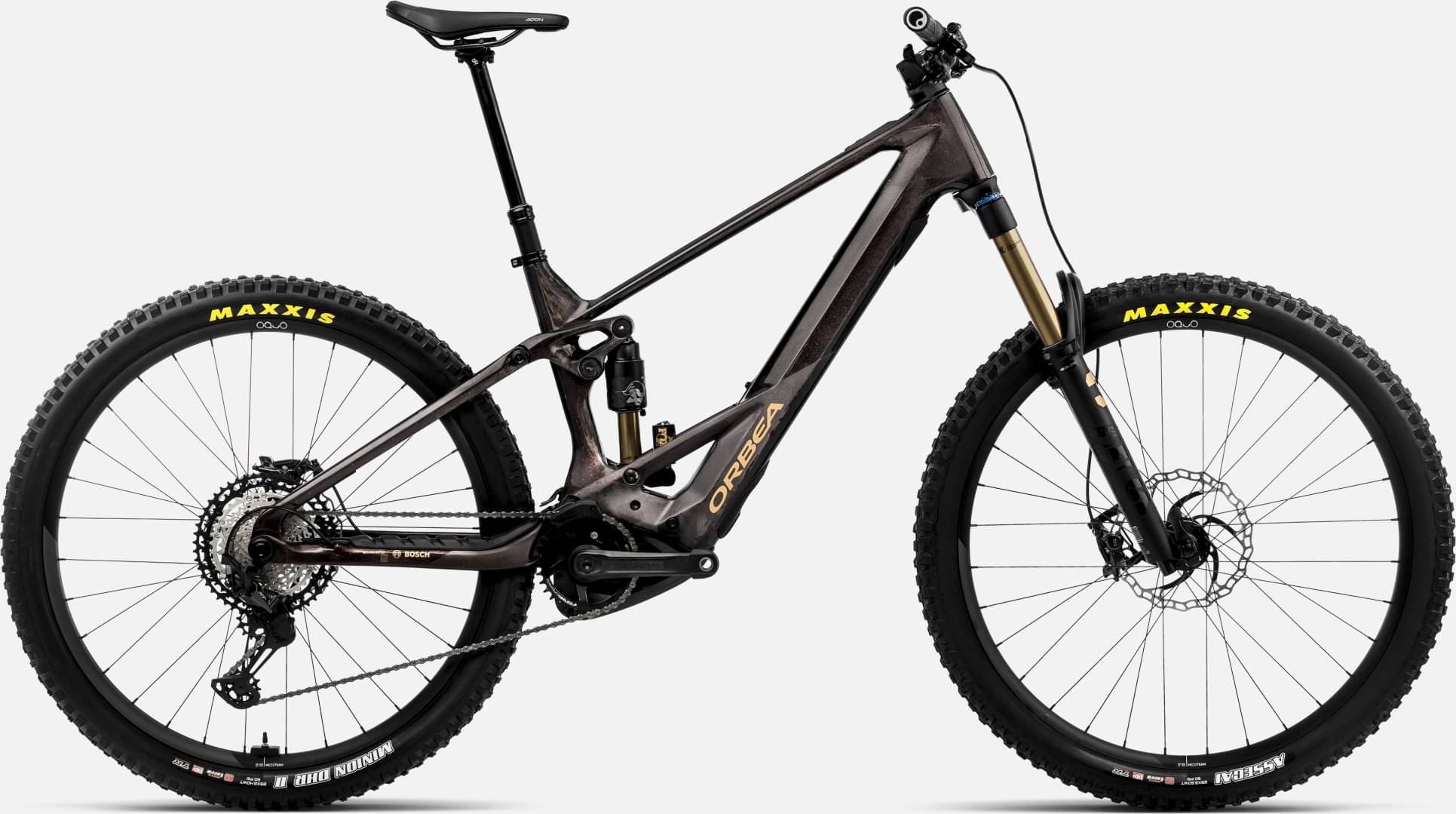

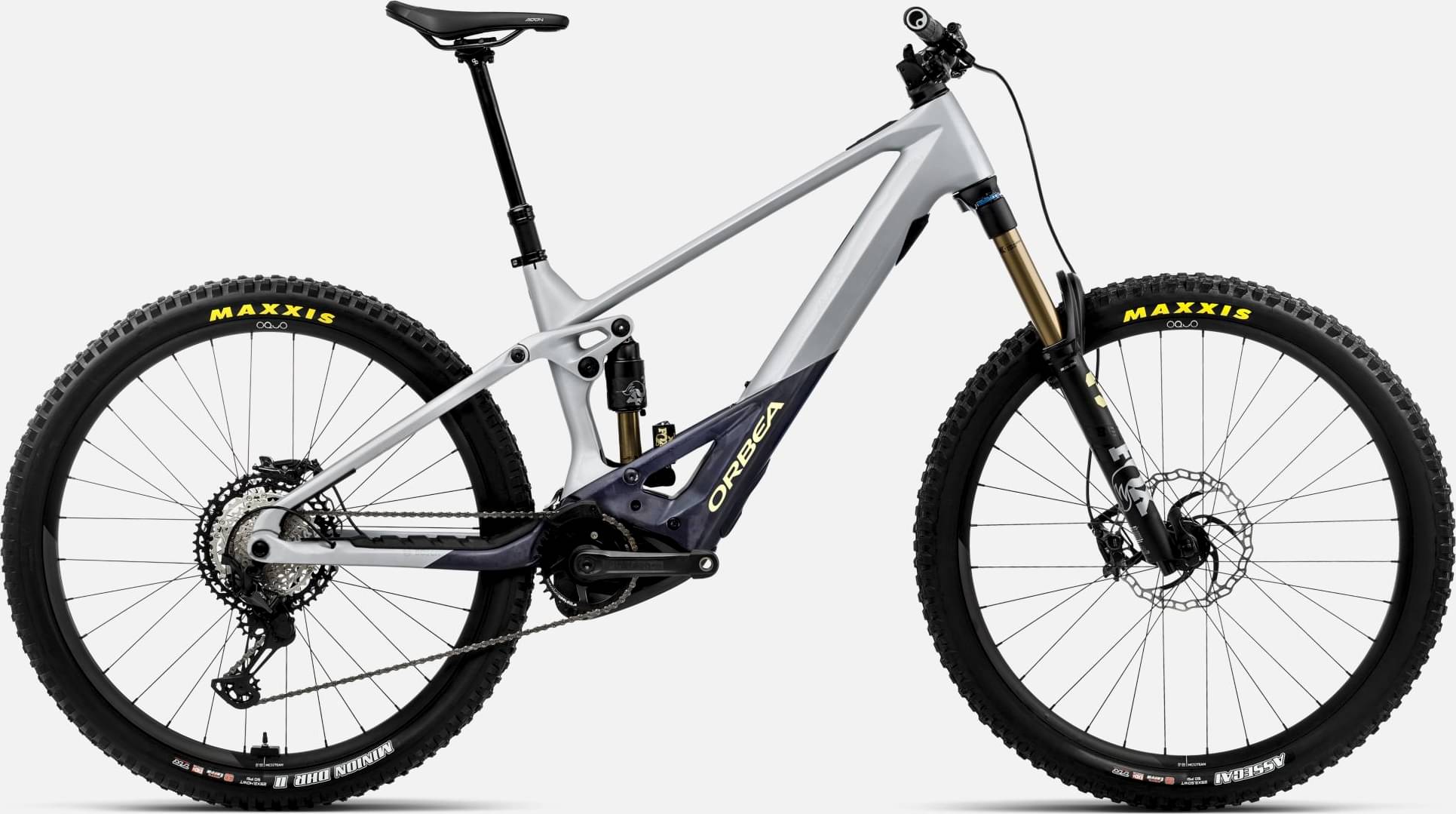

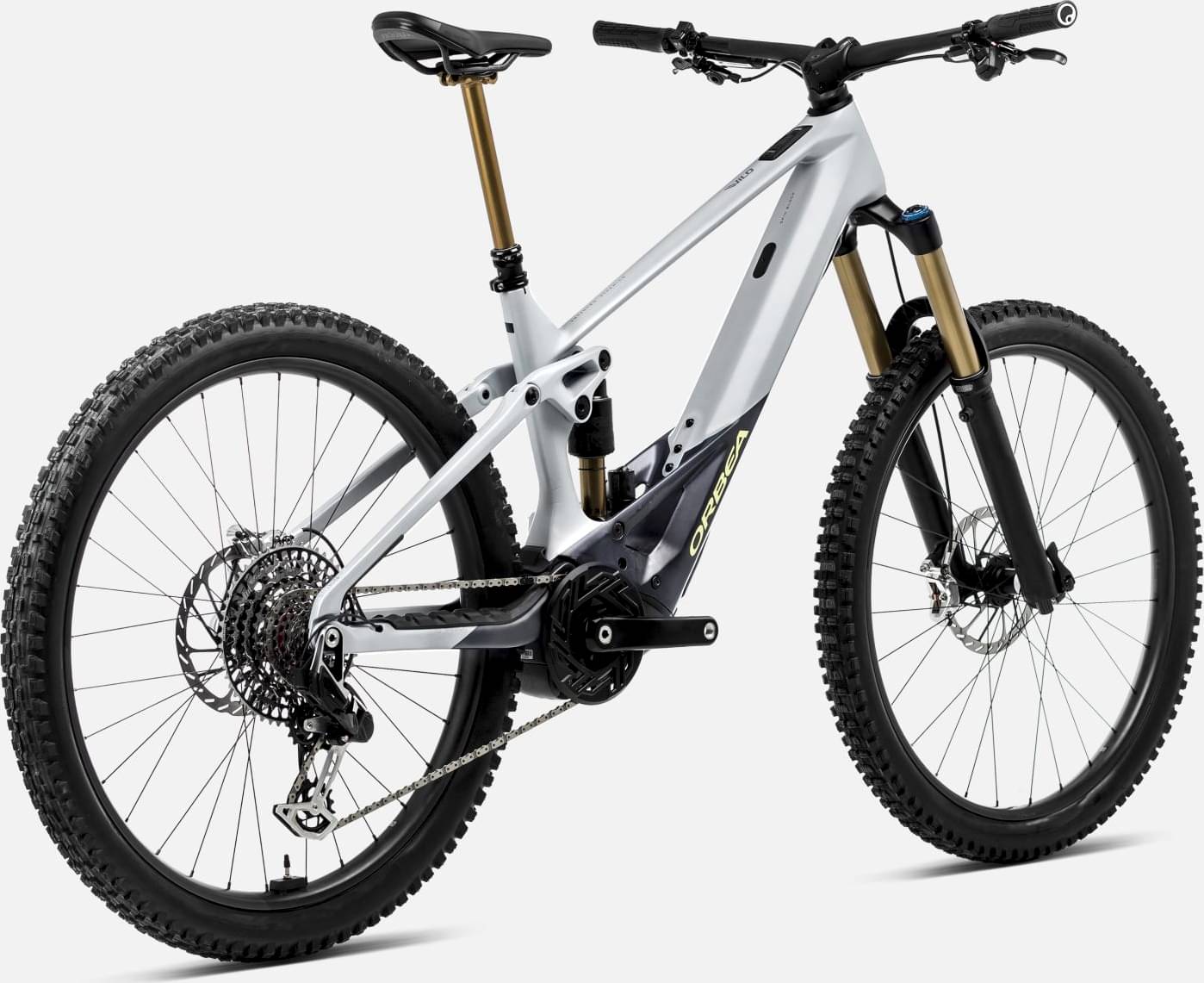

Orbea WILD M-TEAM 20mph 2024
2024 E-bike
Estimate price |
9,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT, e*thirteen -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH Powertube 750Wh Horizontal BBP3775 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 175cm
MD
160cm - 185cm
LG
170cm - 195cm
XL
180cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148
Suspension Fork
Fox 38 Float Factory 160 Grip2 QR15x110 Kashima E-Bike Optimized
Rear Shock
Fox Float X2 Factory Trunnion 2-Position Adjust Kashima custom tune 205x65mm
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS Shadow Plus
Shift Levers
Shimano XT M8100 I-Spec EV
Cassette
Shimano CS-M8100 10-51t 12-Speed
Crank
e*thirteen e*spec Direct Mount 34T Boost
Chain
Shimano M8100
Chain Guide
e*thirteen Plus Bosch CX Gen4 32-38t
Wheels
Rims
Oquo Mountain Control MC32TEAM POWER, alloy hookless rim, DT350 HYBRID 6IS hub, 32mm internal width, Sapim D-Sprint / Race spokes, 29"
Tires
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR
Brakes
Brakes
Shimano XT M8120 Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC10 Alu SL, 0º
Handlebar
OC Mountain Control MC10 Carbon, Rise 20, Width 800
Grips
Ergon GE10
Headset
Alloy 1-1/2", Black Oxidated Bearing
Seat
Saddle
Fizik Aidon 208x145mm manganese rail
Seatpost
OC Mountain Control MC21, 31.6mm, Dropper
Motor & Battery
Motor
BOSCH Performance Line CX BDU3741
Battery
BOSCH Powertube 750Wh Horizontal BBP3775
Remote
BOSCH Mini Remote BRC3300
Charger
Bosch Charger 4A (110V) BPC3410
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 776 mm | 800 mm | 830 mm | 859 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 133 mm | 133 mm | 133 mm |
| Stack | 619 mm | 628 mm | 637 mm | 646 mm |
| Reach | 433 mm | 453 mm | 478 mm | 503 mm |
| Top Tube Length | 571 mm | 593 mm | 620 mm | 647 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 415 mm | 415 mm | 435 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1221 mm | 1245 mm | 1275 mm | 1304 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 698 mm | 698 mm | 698 mm | 698 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm | 205 cm |
Model Overview
WILD M-TEAM 20mph is part of the Orbea E Wild model. Orbea released 77 e-bikes variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Orbea WILD H20-EAGLE 20mph 2024 is the most affordable e-bike of this model and has a price of 6199$. On the other hand, Orbea WILD M-LTD 2024, is the most expensive and costs 14596$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Orbea WILD M-TEAM 20mph price was 9499$. If we compare this with the average Enduro e-bike cost we notice that the price is 98.52% more expensive.
Overview of components
Fork
Orbea WILD M-TEAM 20mph 2024 e-bike is equipped with the Fox Factory Float 38 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the Fox Float X2 Factory Trunnion 2-Position model, with a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the WILD M-TEAM 20mph model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Orbea WILD M-TEAM 20mph e-bike has 4 sizes, in the range of 150 cm – 205 cm (4.92 ft – 6.73 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Orbea model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
