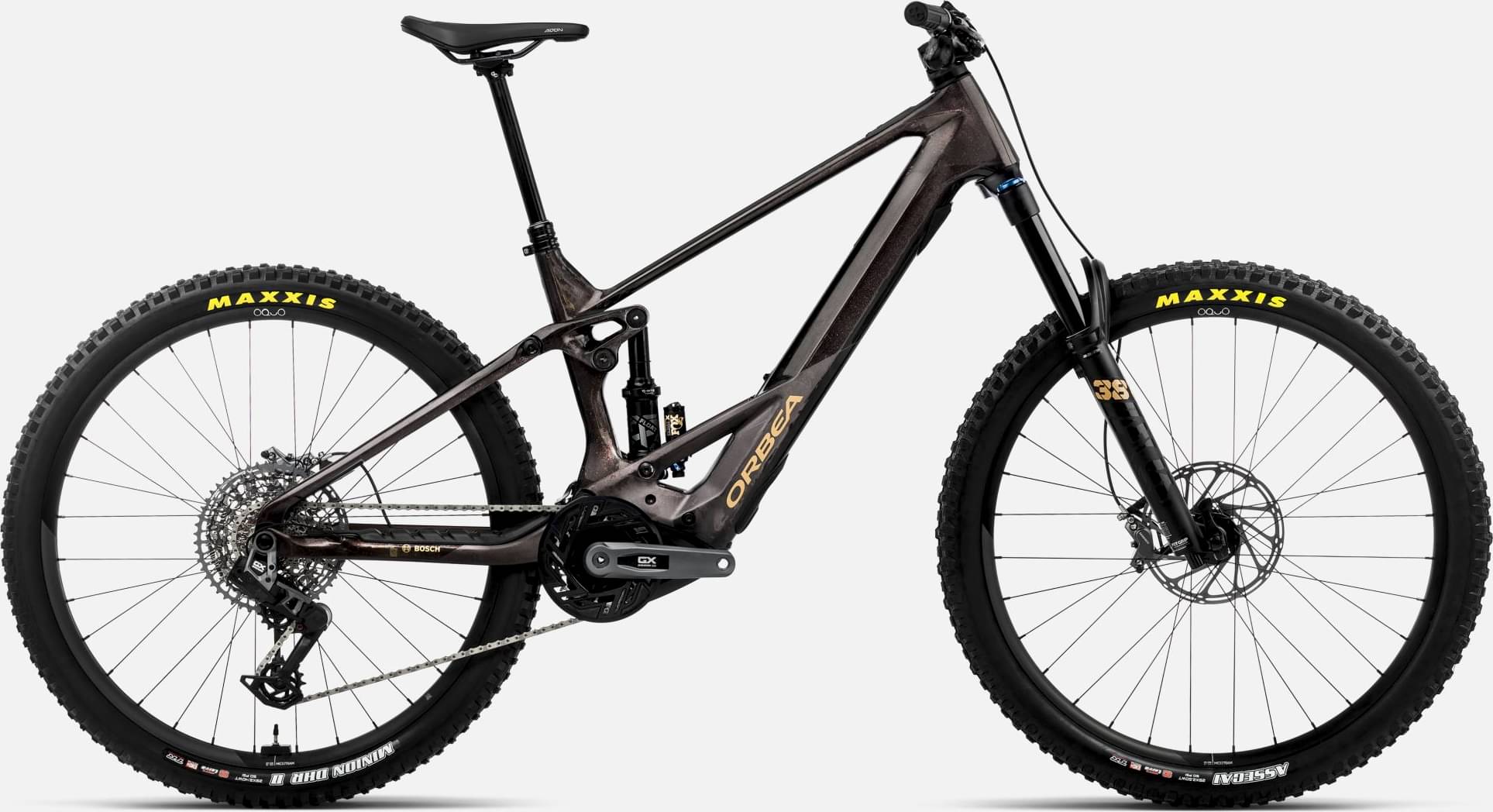

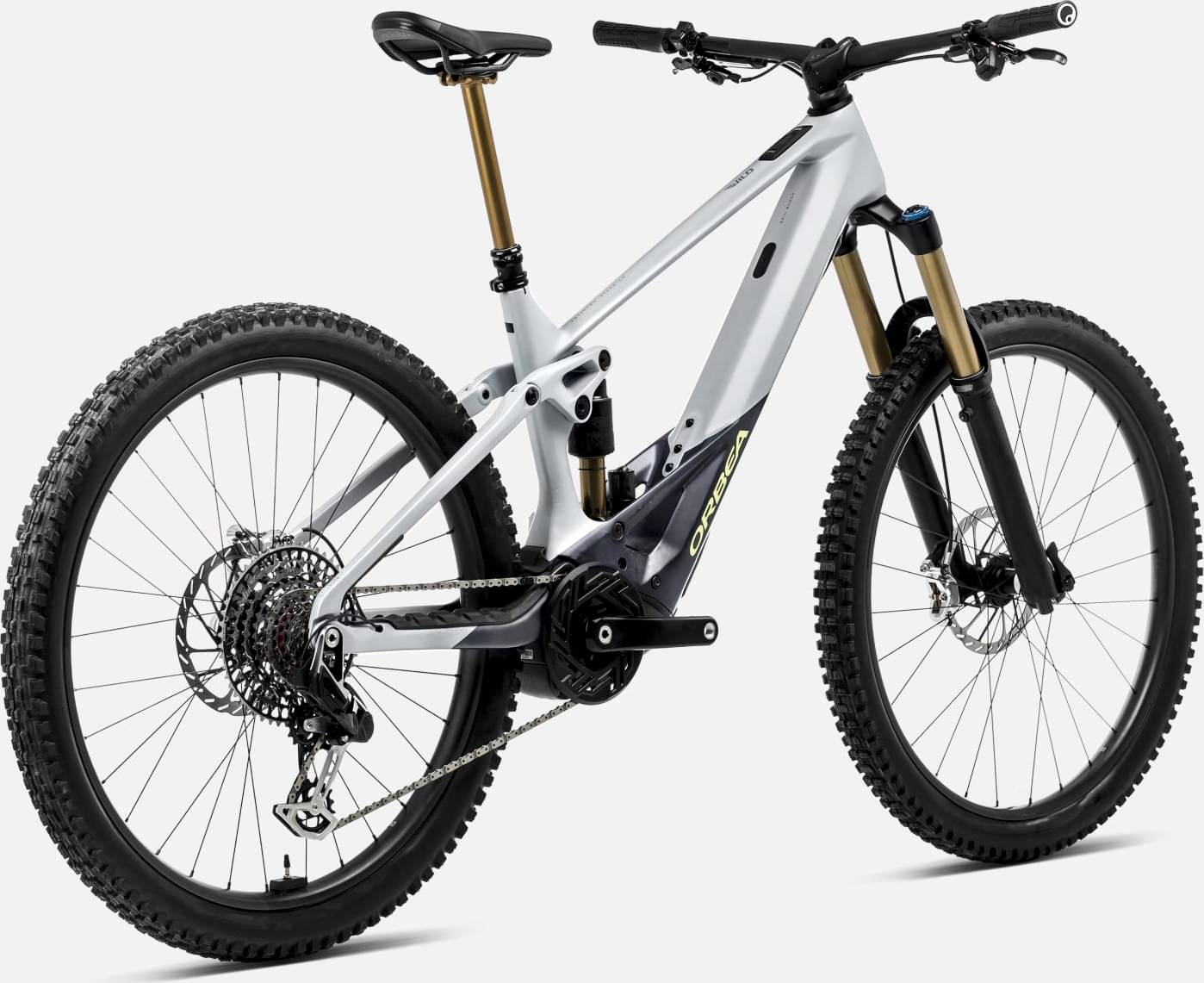

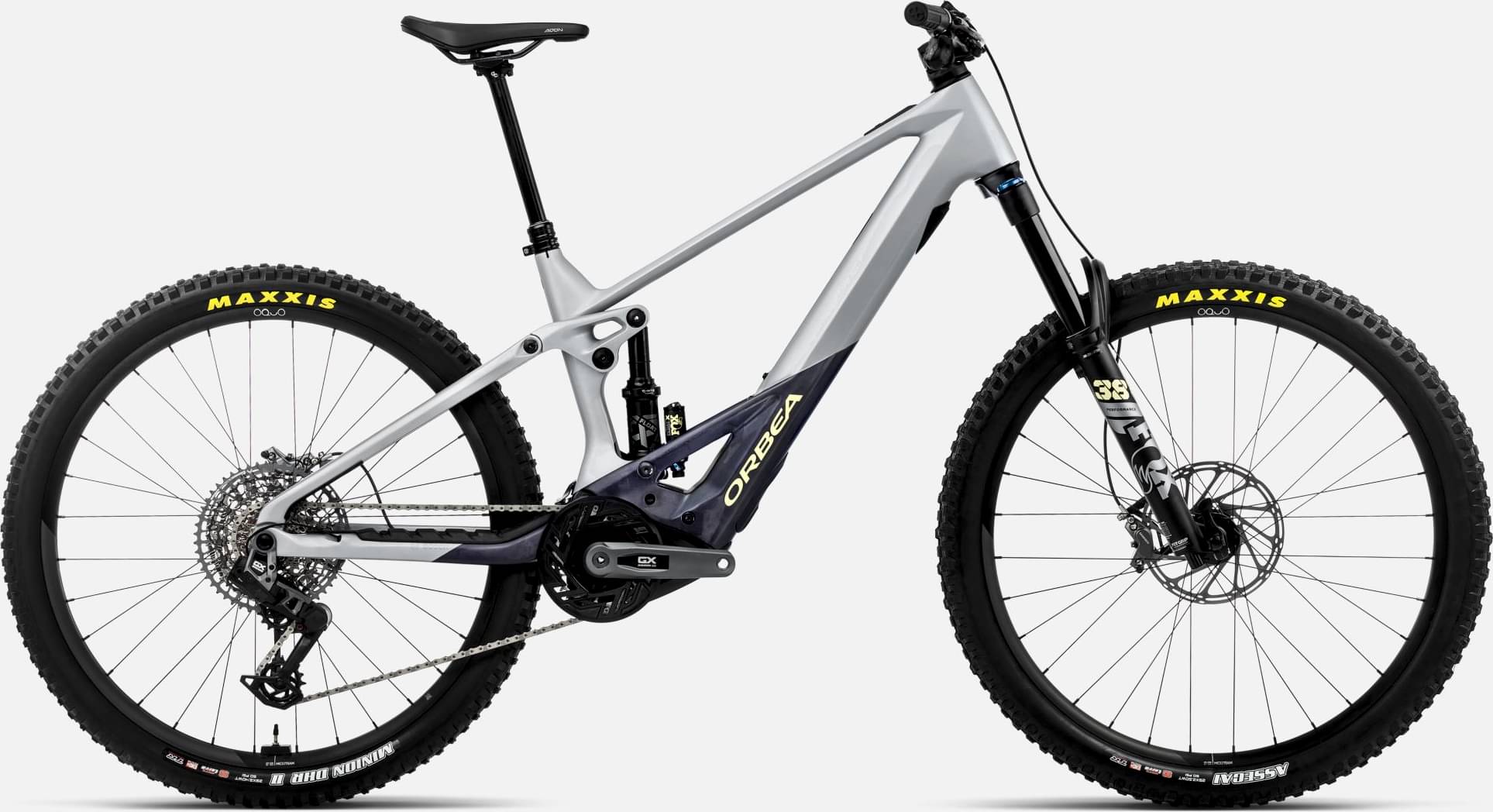

Orbea WILD M11-AXS 2024
2024 E-bike
Estimate price |
12,057$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle AXS, SRAM -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH Powertube 750Wh Horizontal BBP3770 -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 175cm
MD
160cm - 185cm
LG
170cm - 195cm
XL
180cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148
Suspension Fork
Fox 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized
Rear Shock
Fox Float X Performance Trunnion 2-Position Adjust custom tune 205x65mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM AXS Pod
Cassette
SRAM GX-1275 Eagle 10-52t 12-Speed
Crank
SRAM XX Direct Mount 34t
Chain
SRAM GX Eagle 12-Speed
Wheels
Rims
Oquo Mountain Control MC32TEAM POWER, alloy hookless rim, DT350 HYBRID 6IS hub, 32mm internal width, Sapim D-Sprint / Race spokes, 29"
Tires
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR
Brakes
Brakes
SRAM Code Bronze Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC20, 0º
Handlebar
OC Mountain Control MC20 Alu SL, Rise20, Width 800
Grips
OC Lock On
Headset
Alloy 1-1/2", Black Oxidated Bearing
Seat
Saddle
Fizik Aidon 208x145mm manganese rail
Seatpost
OC Mountain Control MC21, 31.6mm, Dropper
Motor & Battery
Motor
BOSCH Performance Line CX BDU3741
Battery
BOSCH Powertube 750Wh Horizontal BBP3770
Remote
BOSCH Mini Remote BRC3300
Charger
Bosch Charger 4A (230V) BPC3400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 776 mm | 800 mm | 830 mm | 859 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 133 mm | 133 mm | 133 mm |
| Stack | 619 mm | 628 mm | 637 mm | 646 mm |
| Reach | 433 mm | 453 mm | 478 mm | 503 mm |
| Top Tube Length | 571 mm | 593 mm | 620 mm | 647 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 415 mm | 415 mm | 435 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1221 mm | 1245 mm | 1275 mm | 1304 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 698 mm | 698 mm | 698 mm | 698 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm | 205 cm |
About this model
WILD M11-AXS belongs to the Orbea E Wild model. There are 77 e-bikes that carry this model name. Take a sneak peek at all Orbea E Wild e-bikes models from 2024, by clicking here.
Model range prices
Orbea WILD H20-EAGLE 20mph 2024 is the cheapest e-bike model and costs 6199$. Orbea WILD M-LTD 2024 is the most expensive one and costs 14596$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2024 for 10825$. In conclusion, this e-bike price is 126.23% higher than the price of the average Enduro e-bike.
Overview of components
Fork
The Fox Performance Float 38 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Orbea WILD M11-AXS e-bike has the Fox Float X Performance Trunnion 2-Position model installed, and has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the WILD M11-AXS model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea WILD M11-AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Orbea WILD M11-AXS e-bike has 4 sizes, in the range of 150 cm – 205 cm (4.92 ft – 6.73 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Orbea model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
