Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 166cm
SM
163cm - 173cm
MD
170cm - 181cm
LG
178cm - 188cm
XL
185cm - 195cm
XXL
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Axxome GTS Flatbar
Suspension Fork
Axxome II Disc 12x100 SpeedRelease®
Drivetrain
Rear Derailleur
Tiagra Sport Fitness disc
Cassette
Tiagra 12-28
Crank
Tiagra Compact 50/34
Pedals
Without pedals
Wheels
Rims
Racing 900 DB
Tires
Ultra Sport 25
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L2 MTB
Handlebar
Flat 580 mm
Grips
True grip X Comp
Seat
Saddle
X1 White
Seatpost
2B WTD 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.49 mm | 1.5 mm |
| Bottom Bracket Height | 264 mm | 265 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 579 mm | 581 mm | 590 mm | 610 mm | 624 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 66 mm | 63 mm | 59 mm | 59 mm | 56 mm |
| Stack | 520 mm | 535 mm | 550 mm | 571 mm | 590 mm | 615 mm |
| Reach | 374 mm | 375 mm | 377 mm | 383 mm | 397 mm | 409 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.2 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 555 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 165 mm | 185 mm | 210 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 978 mm | 980 mm | 983 mm | 992 mm | 1012 mm | 1026 mm |
| Bottom Bracket Drop | 72 mm | 71 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 163 cm | 170 cm | 178 cm | 185 cm | 192 cm |
| Rider Max Height | 166 cm | 173 cm | 181 cm | 188 cm | 195 cm | 201 cm |
About this model

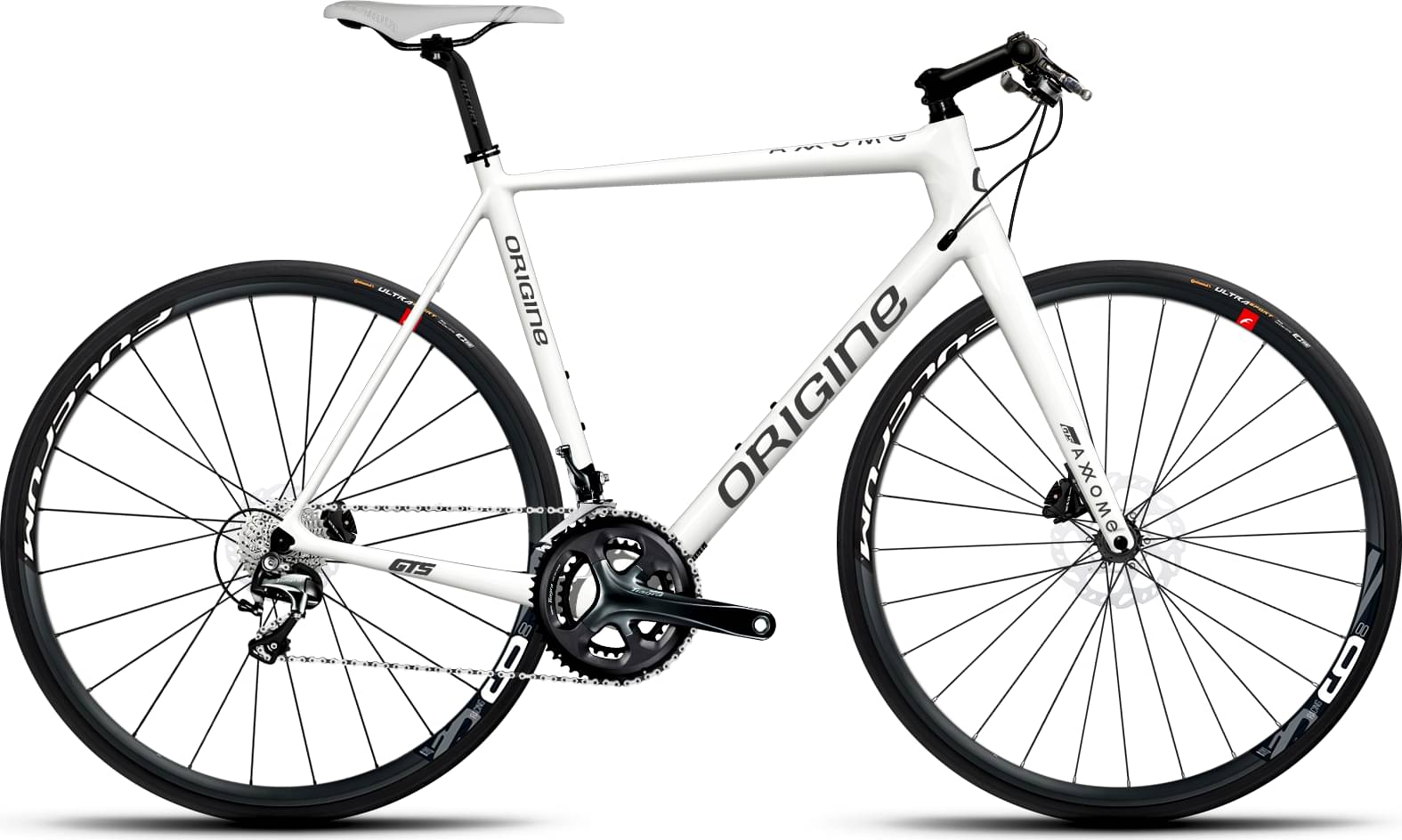

Axxome GTS FS11 belongs to the Origine Axxome model. Origine launched 176 bikes of this model so far. You can easily view all of the Origine Axxome bikes models from 2022, here.
Model range prices
Origine Axxome 250 FS10 2022 is the most affordable bike of this model and has a price of 1807$. On the other hand, Origine Axxome RS Evo KC85 2022, is the most expensive and costs 7683$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Origine released this model in 2022, its price was 2025$. Comparing the average cost of a Race bike to this one, you will see that Axxome GTS FS11 price is 65.43% smaller.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Axxome GTS FS11 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 6 sizes. They vary from 151 cm – 201 cm (4.95 ft – 6.59 ft). In short, it won’t be difficult to find the right one for you.
