Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Record -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 166cm
SM
163cm - 173cm
MD
170cm - 181cm
LG
178cm - 188cm
XL
185cm - 193cm
XXL
190cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Axxome RS Evo
Suspension Fork
Axxome II Evo Carb SSL Direct Mount (320 g)
Drivetrain
Rear Derailleur
Record 12s
Cassette
Super Record 11-29 12s
Crank
Record 12s 50/34
Pedals
Without pedals
Wheels
Rims
Orion C35 Pro
Tires
Power Road 25
Brakes
Brakes
Record
Cockpit
Stem
CLS L1
Handlebar
Streem II WCS Carbone
Seat
Saddle
Flite Tekno Flow
Seatpost
1B WCS Carbon 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.49 mm | 1.5 mm |
| Bottom Bracket Height | 264 mm | 265 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 577 mm | 579 mm | 581 mm | 589 mm | 610 mm | 624 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 66 mm | 62 mm | 59 mm | 58 mm | 56 mm |
| Stack | 520 mm | 535 mm | 550 mm | 571 mm | 590 mm | 615 mm |
| Reach | 374 mm | 375 mm | 377 mm | 383 mm | 397 mm | 409 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.2 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 555 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 165 mm | 185 mm | 210 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 971 mm | 973 mm | 976 mm | 984 mm | 1005 mm | 1019 mm |
| Bottom Bracket Drop | 72 mm | 71 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 163 cm | 170 cm | 178 cm | 185 cm | 190 cm |
| Rider Max Height | 166 cm | 173 cm | 181 cm | 188 cm | 193 cm | 201 cm |
About this model

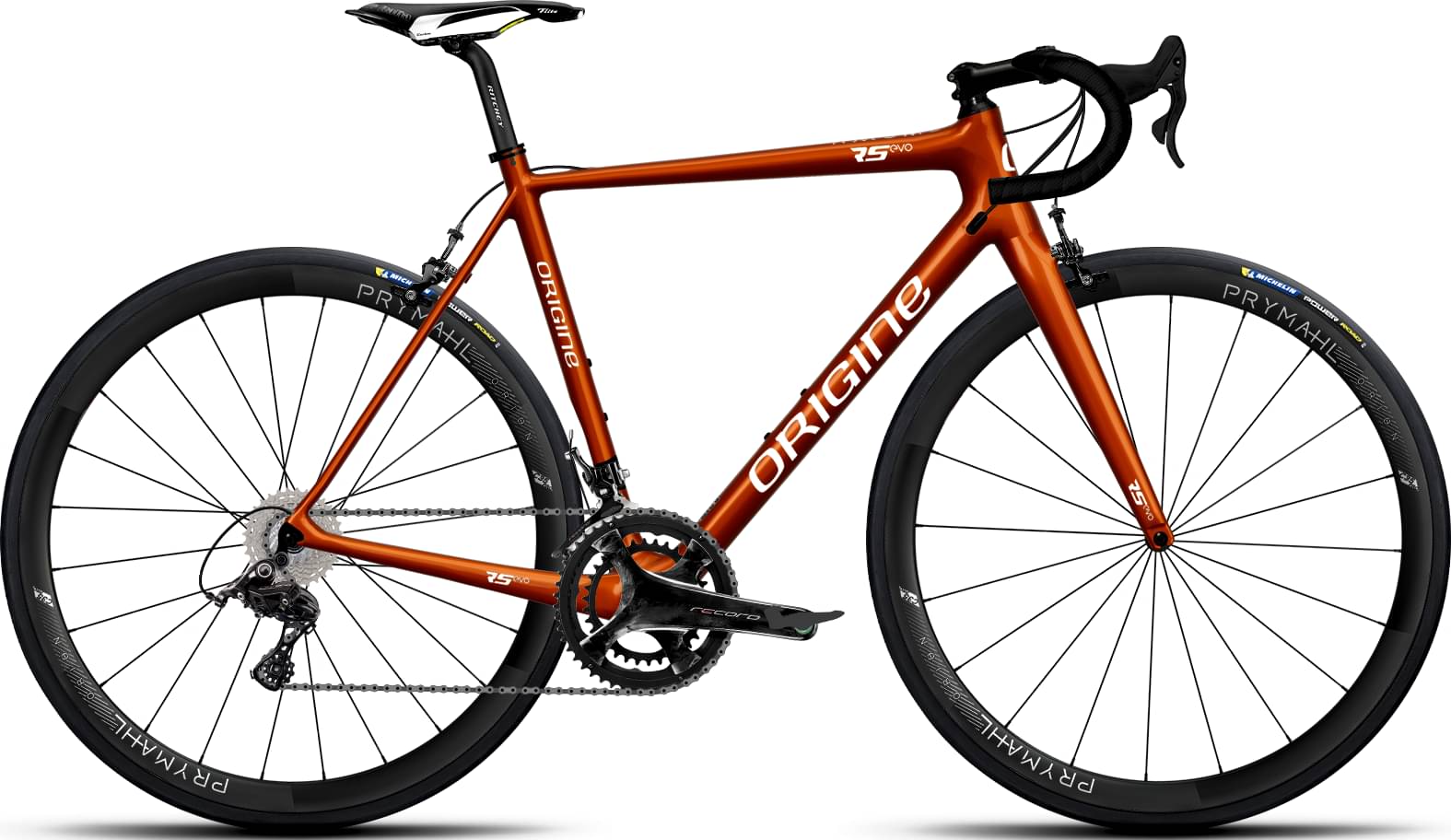

Axxome RS Evo KR77 is an Origine Axxome model. Origine released 176 bikes variations of this model so far. You can easily view all of the Origine Axxome bikes models from 2023, here.
Model range prices
Origine Axxome 250 FS10 2023 is the most affordable bike of this model and has a price of 1807$. On the other hand, Origine Axxome III GTR LC89 2023, is the most expensive and costs 9536$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 6765$. If we compare this with the average Race bike cost we notice that the price is 101.94% more expensive.
Axxome RS Evo KR77 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Axxome RS Evo KR77 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 151 cm – 201 cm (4.95 ft – 6.59 ft). In conclusion, finding one for you shouldn’t be a problem.
