Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fraxion GTR
Suspension Fork
Fraxion
Drivetrain
Rear Derailleur
Ultegra R8020 disc
Cassette
Ultegra R8000 11-28
Crank
Ultegra R8000 compact 50/34
Pedals
Without pedals
Wheels
Rims
Orion C50 R Evo
Tires
Ultra Sport 25
Brakes
Brakes
Rim
Cockpit
Stem
TB-099IN
Handlebar
R1 Carbon
Seat
Saddle
Novus Boost Evo
Seatpost
Fraxion Zero Offset Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.43 mm | 1.44 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 578 mm | 584 mm | 600 mm | 617 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 60 mm | 59 mm | 59 mm |
| Stack | 529 mm | 550 mm | 569 mm | 588 mm |
| Reach | 385 mm | 389 mm | 398 mm | 409 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 565 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 125 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 982 mm | 988 mm | 1004 mm | 1021 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 198 cm |
About this model

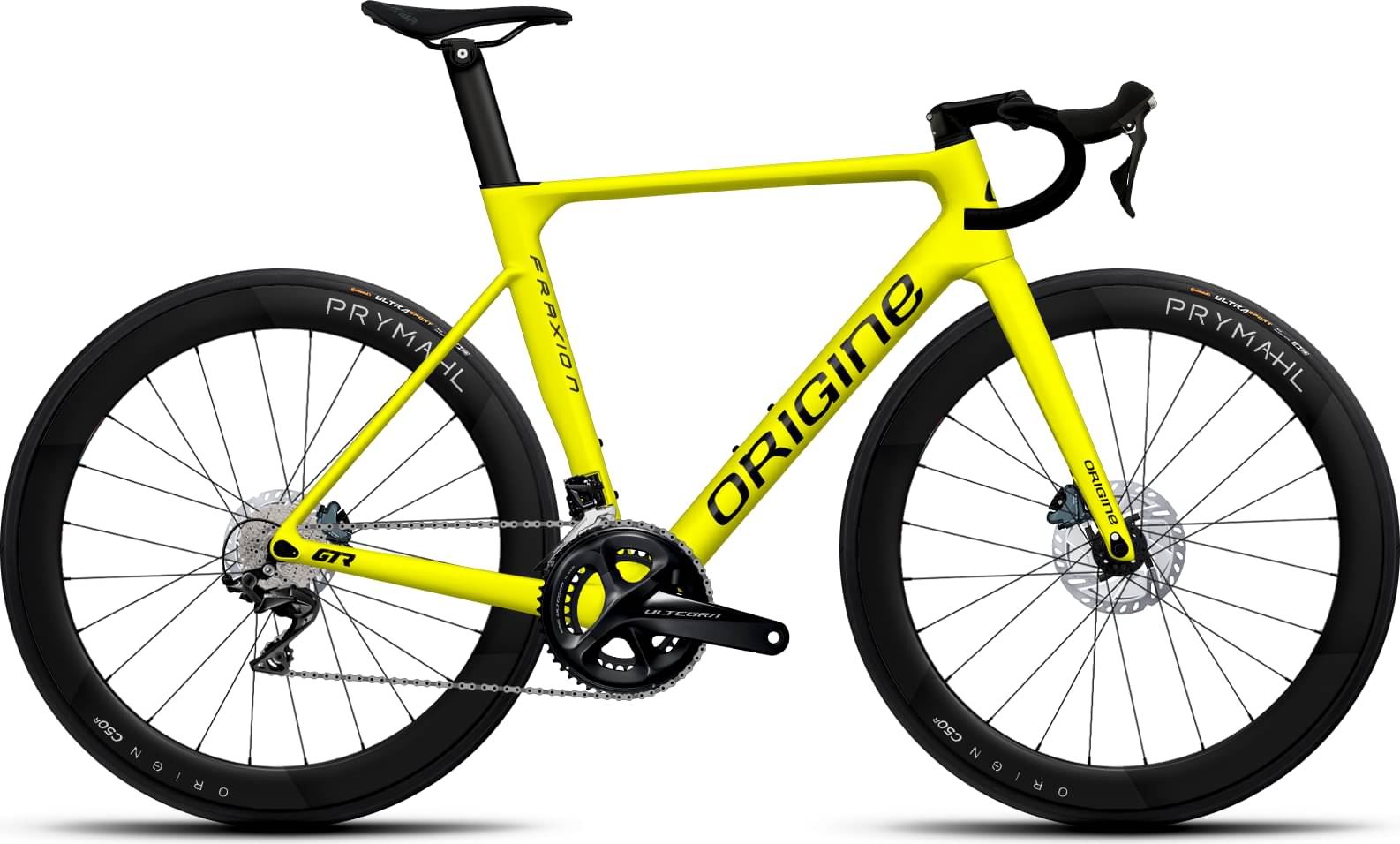

Fraxion GTR LS45 completes the Origine Fraxion model. 10 bikes variations carry this model name so far. Take a sneak peek at all Origine Fraxion bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Origine Fraxion GTR LS28 2022 has a starting price of 3950$. Origine Fraxion GTR LS87 2022 on the other hand is the most expensive at 8786$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Origine released this model in 2022, its price was 5326$. In conclusion, this bike price is 26.48% more expensive than the price of the average Aero bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Origine Fraxion GTR LS45 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fraxion GTR LS45 has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 156 cm – 198 cm (5.12 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
