Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Chorus, Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
Chorus Disc 2 x 12s
Cassette
Ekar 13v 9-36
Crank
Ekar 1x13v 38D
Pedals
Without pedals
Wheels
Rims
Vega C35 Pro Wide
Tires
Terra Speed ProTection 35 tubeless
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L1
Handlebar
Road Beacon Comp
Seat
Saddle
SLR Boost X-Cross Superflow
Seatpost
WCS Zero Offset (Droite) 27.2 Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 604 mm | 617 mm | 626 mm | 642 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 65 mm | 61 mm | 61 mm |
| Stack | 571 mm | 592 mm | 618 mm | 637 mm |
| Reach | 385.11 mm | 394.35 mm | 401.75 mm | 411.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1030 mm | 1043 mm | 1052 mm | 1068 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm | 186 cm |
| Rider Max Height | 171 cm | 179 cm | 189 cm | 200 cm |
About this model

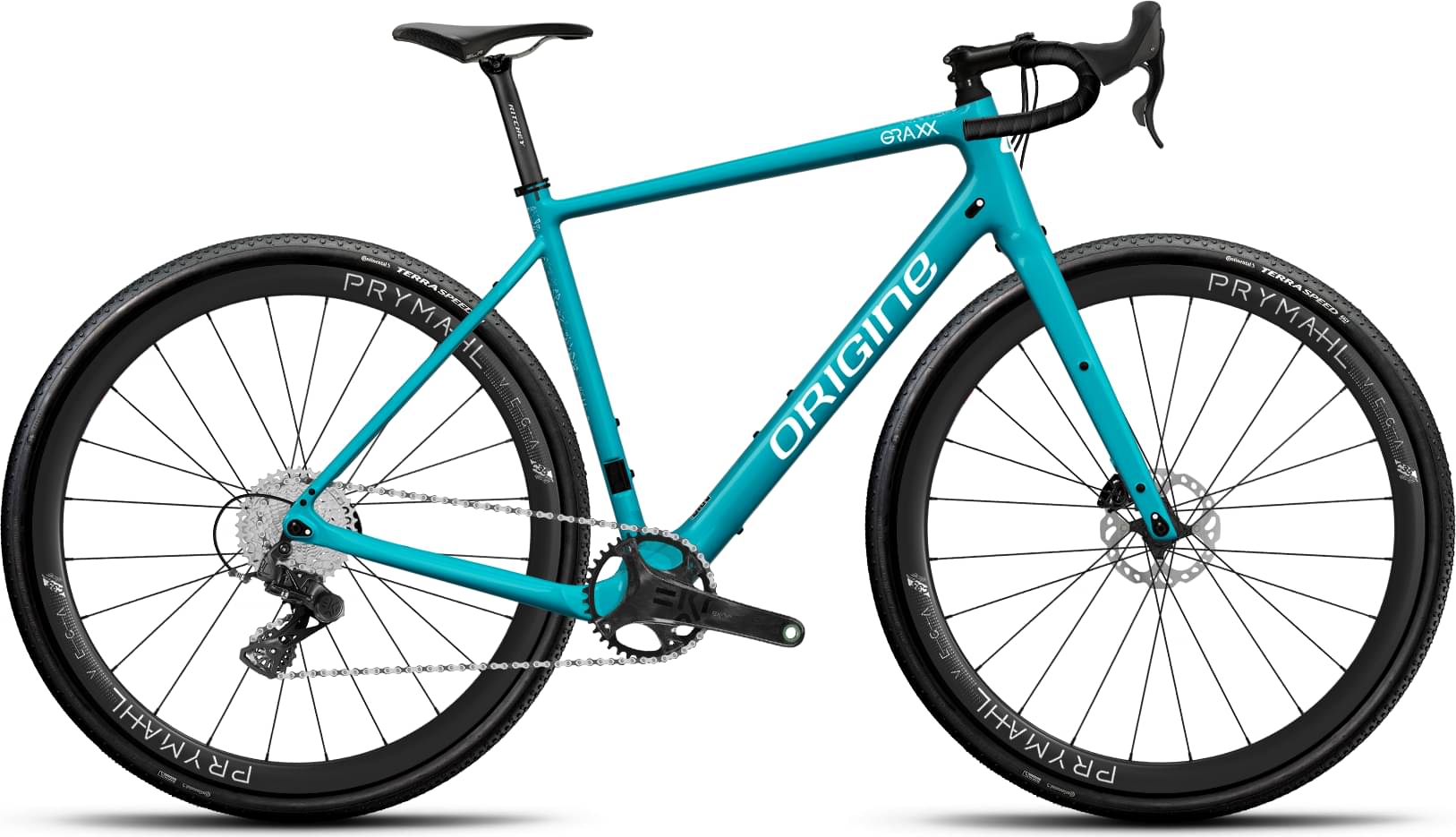

Graxx C67 is part of the Origine Graxx model. There are 63 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Origine Graxx Flatbar F24 2022 is the most economical model, with a starting price of 2379$. Origine Graxx Explore S67 2022 on the other hand costs 6909$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5400$. In conclusion, this bike price is 119.33% higher than the price of the average Gravel bike.
Graxx C67 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Origine Graxx C67 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Origine Graxx C67 bike has 4 sizes, in the range of 158 cm – 200 cm (5.18 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
