Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 40mm -
Fork RockShox Rudy Ultimate XPLR
-
Groupset GRX 600 -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx Front susp
Suspension Fork
Rudy Ultimate 40mm black Off 51mm
Drivetrain
Rear Derailleur
GRX 600 1x11s
Cassette
XLE11 11-42
Crank
Gossamer Pro 1X 40D single
Pedals
Without pedals
Wheels
Rims
Vega C35 Pro Wide
Tires
Terra Trail ProTection 40 Tubeless
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L1
Handlebar
Road Ergomax WCS
Seat
Saddle
Dimension NDR Offroad rail Tirox
Seatpost
1B WCS 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.62 mm | 1.66 mm | 1.67 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 615 mm | 628 mm | 636 mm | 652 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 77 mm | 73 mm | 73 mm |
| Stack | 585 mm | 605 mm | 632 mm | 651 mm |
| Reach | 364 mm | 374 mm | 380 mm | 389 mm |
| Seat Tube Angle | 71.9 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 68.9 ° | 69.3 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1045 mm | 1058 mm | 1066 mm | 1082 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 200 cm |
Model Overview

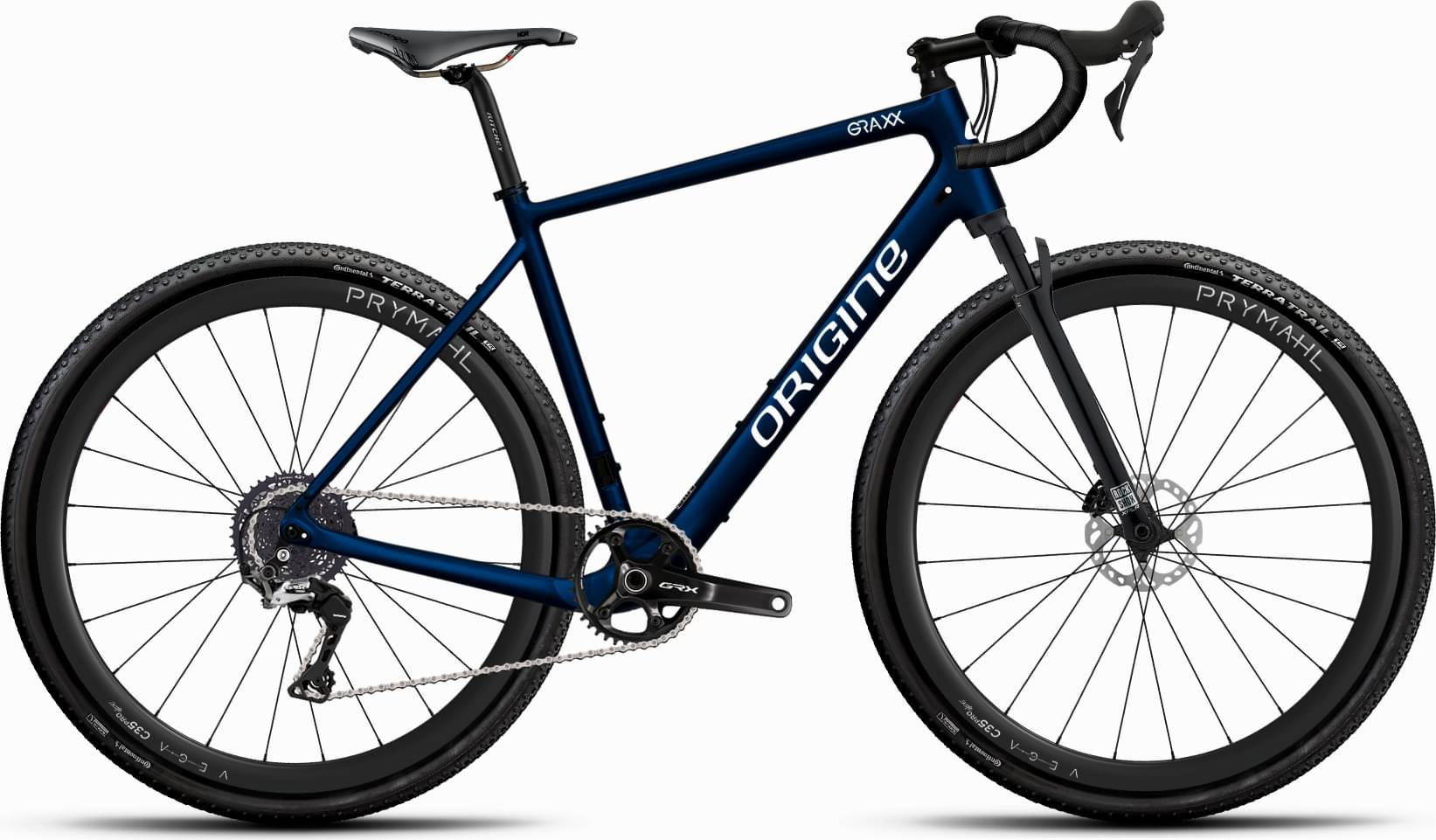

Graxx Explore R59 completes the Origine Graxx model. Origine launched 63 bikes of this model so far. You can easily view all of the Origine Graxx bikes models from 2023, here.
Model range prices
Origine Graxx III GTO Flatbar R25 2023 is the most economical model, with a starting price of 2302$. Origine Graxx III GTR Explore C89 2023 on the other hand costs 7529$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Origine Graxx Explore R59 price was 5117$. Comparing the average cost of a Gravel bike to this one, you will see that Graxx Explore R59 price is 107.84% more expensive.
Graxx Explore R59 components
Fork
This bike has the RockShox Rudy Ultimate XPLR fork installed. The fork’s travel is 40mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Graxx Explore R59 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Graxx Explore R59 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 200 cm (5.18 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
