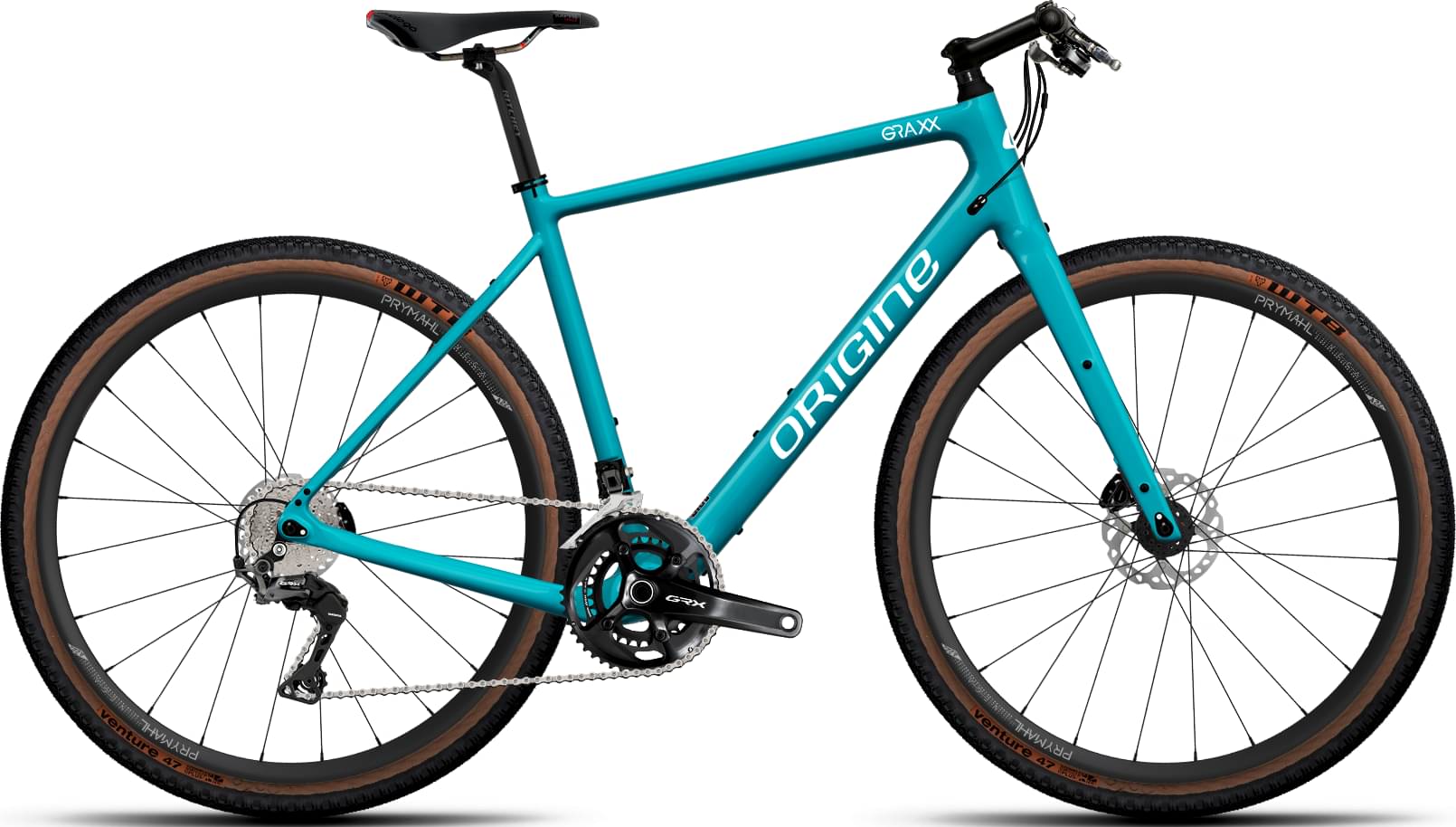

origine Graxx Flatbar F44 650B 2022
2022 Road
Estimate price |
3,230$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx Gravel Flatbar
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
GRX 800 2x11s Flatbar
Cassette
R7000 11-30
Crank
Gossamer Pro 2X 46/30
Pedals
Without pedals
Wheels
Rims
Vega 650 A22 R
Tires
Venture 650x47 souple flancs Tan
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L2 MTB
Handlebar
MTN 2x WCS 580
Grips
Superlogic
Seat
Saddle
Kappa Space Allroad
Seatpost
2B WTD 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.54 mm | 1.55 mm |
| Front Center | 604 mm | 617 mm | 626 mm | 642 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 61 mm | 59 mm | 55 mm | 55 mm |
| Stack | 571 mm | 592 mm | 618 mm | 637 mm |
| Reach | 385.11 mm | 394.35 mm | 401.75 mm | 411.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1030 mm | 1043 mm | 1052 mm | 1068 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 200 cm |
Model Overview
Graxx Flatbar F44 650B belongs to the Origine Graxx model. Origine launched 63 bikes of this model so far. Take a sneak peek at all Origine Graxx bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Origine Graxx Flatbar F24 2022 has a starting price of 2379$. Origine Graxx Explore S67 2022 on the other hand is the most expensive at 6909$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 2990$. In conclusion, this bike price is 21.45% higher than the price of the average Gravel bike.
Overview of components
Fork material
Graxx Flatbar F44 650B has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Graxx Flatbar F44 650B model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Graxx Flatbar F44 650B has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 200 cm (5.18 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
