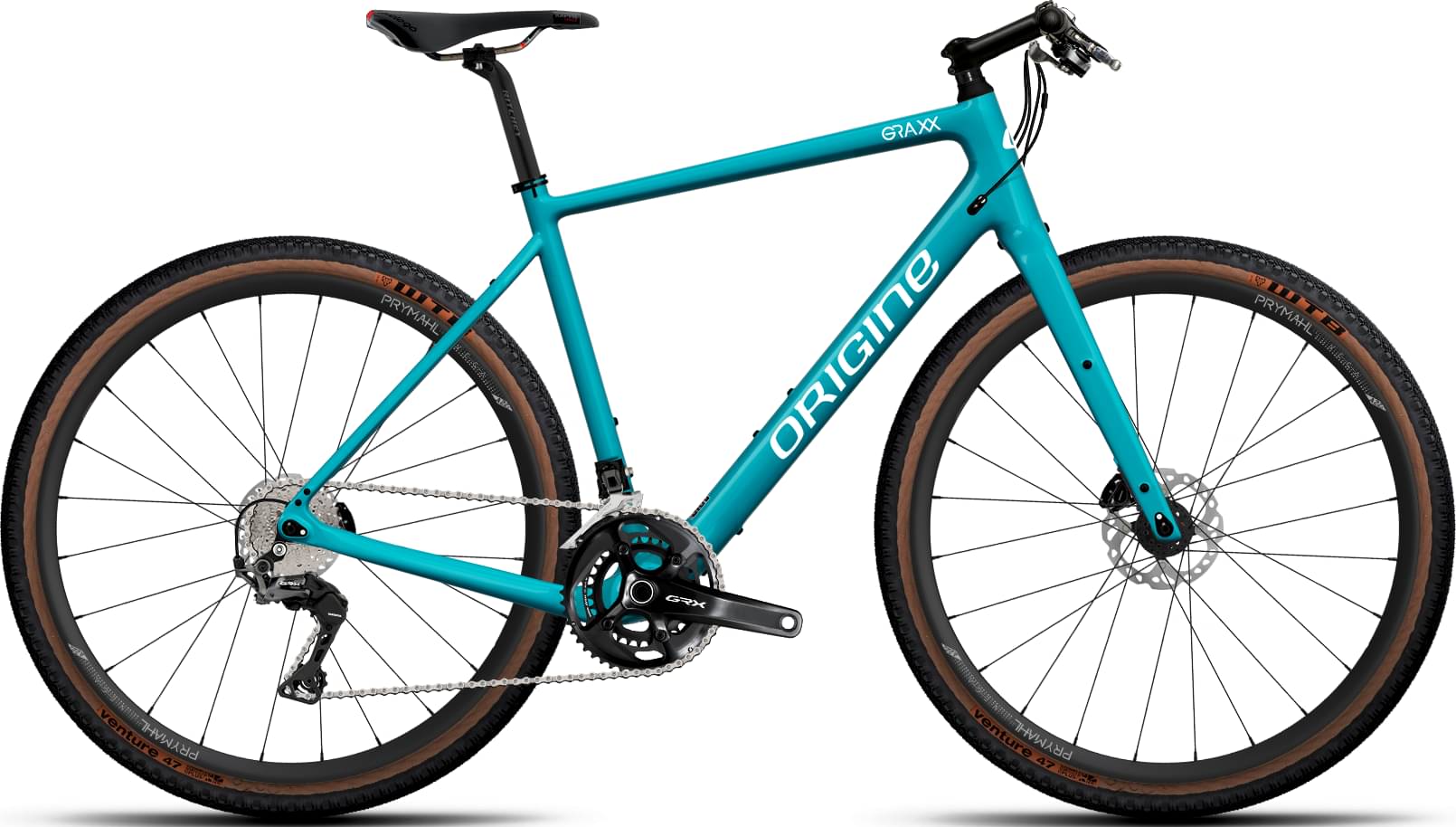

origine Graxx Flatbar F44 650B 2023
2023 Road
Estimate price |
3,257$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx Gravel Flatbar
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
GRX 800 2x11s Flatbar
Cassette
R7000 11-30
Crank
Gossamer Pro 2X 46/30
Pedals
Without pedals
Wheels
Rims
Vega 650 A22 R
Tires
Venture 650x47 souple flancs Tan
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L2 MTB
Handlebar
MTN 2x WCS 580
Grips
Superlogic
Seat
Saddle
Kappa Space Allroad
Seatpost
2B WTD 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.54 mm | 1.55 mm |
| Front Center | 604 mm | 617 mm | 626 mm | 642 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 61 mm | 59 mm | 55 mm | 55 mm |
| Stack | 571 mm | 592 mm | 618 mm | 637 mm |
| Reach | 385.11 mm | 394.35 mm | 401.75 mm | 411.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1030 mm | 1043 mm | 1052 mm | 1068 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 200 cm |
About this model
Graxx Flatbar F44 650B is an Origine Graxx model. Origine launched 63 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Origine Graxx III GTO Flatbar R25 2023 is the most economical model, with a starting price of 2302$. Origine Graxx III GTR Explore C89 2023 on the other hand costs 7529$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Origine released this model in 2023, its price was 3015$. Comparing the average cost of a Gravel bike to this one, you will see that Graxx Flatbar F44 650B price is 22.46% higher.
Graxx Flatbar F44 650B components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Graxx Flatbar F44 650B bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 200 cm (5.18 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
