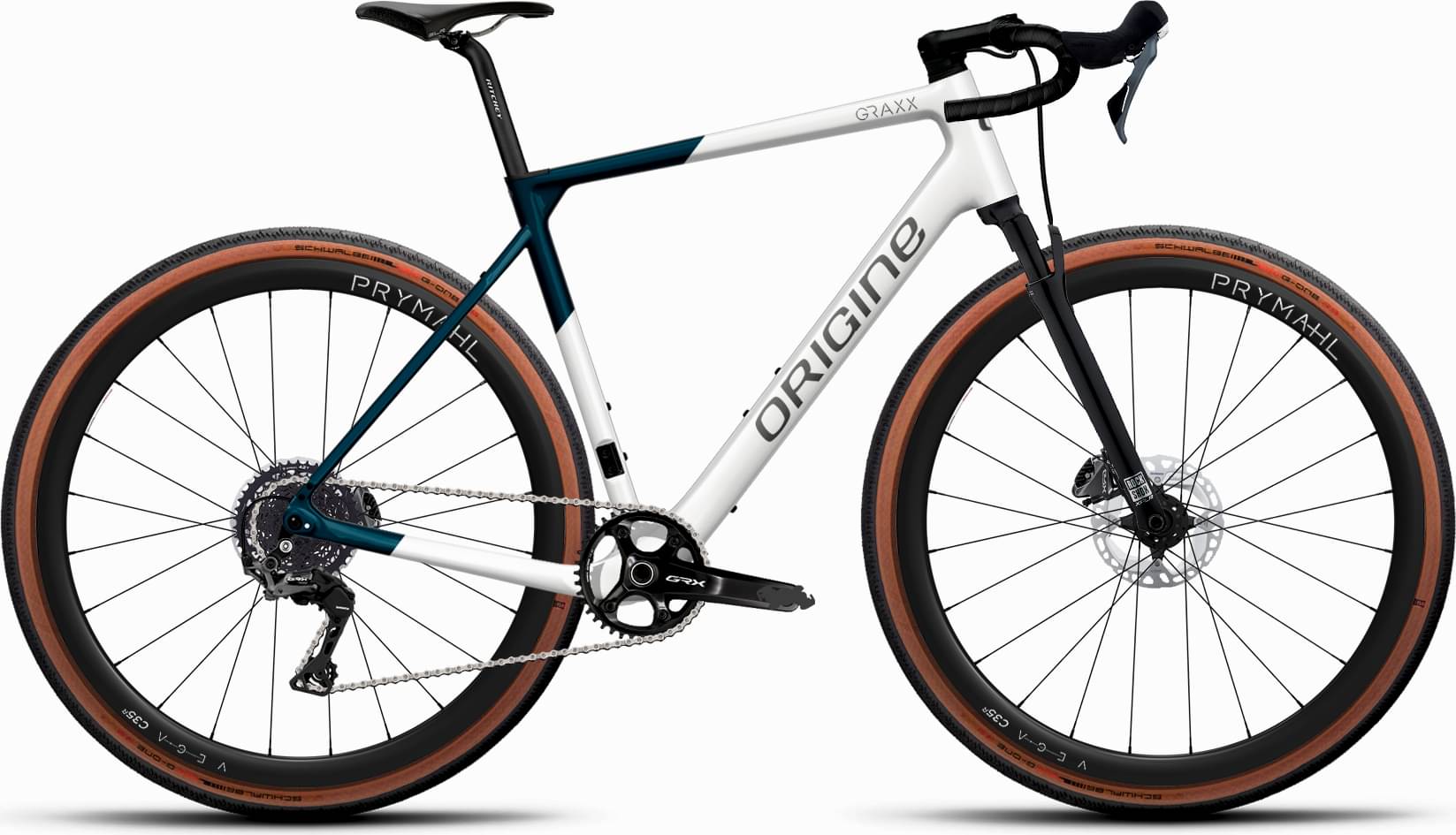

origine Graxx III GTO Explore R69 2023
2023 Road
Estimate price |
5,244$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 40mm -
Fork RockShox Rudy Ultimate XPLR
-
Groupset GRX 800, GRX 600 -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx III GTO Front susp
Suspension Fork
Rudy Ultimate 40mm black Off 51mm
Drivetrain
Rear Derailleur
GRX 800 1x11s
Cassette
XLE11 11-42
Crank
GRX 600 40D single
Pedals
Without pedals
Wheels
Rims
Vega C35 R
Tires
G-One RS Evo TLE 40 with tubes
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
TK-278A
Handlebar
Road Beacon Comp
Seat
Saddle
SLR Boost X-Cross Superflow
Seatpost
1B WCS Carbon 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.62 mm | 1.66 mm | 1.67 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 615 mm | 628 mm | 636 mm | 652 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 77 mm | 73 mm | 73 mm |
| Stack | 585 mm | 605 mm | 632 mm | 651 mm |
| Reach | 364 mm | 374 mm | 380 mm | 389 mm |
| Seat Tube Angle | 71.9 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 68.9 ° | 69.3 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1045 mm | 1058 mm | 1066 mm | 1082 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 200 cm |
About this model
Graxx III GTO Explore R69 is part of the Origine Graxx model. 63 bikes variations carry this model name so far. Take a sneak peek at all Origine Graxx bikes models from 2023, by clicking here.
Model range prices
Origine Graxx III GTO Flatbar R25 2023 is the most economical model, with a starting price of 2302$. Origine Graxx III GTR Explore C89 2023 on the other hand costs 7529$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Origine released this model in 2023, its price was 4854$. If we compare this with the average Gravel bike cost we notice that the price is 97.16% more expensive.
Graxx III GTO Explore R69 components
Fork
The fork installed on this bike is the RockShox Rudy Ultimate XPLR model. The travel on this model is 40mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Graxx III GTO Explore R69 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Origine Graxx III GTO Explore R69 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Graxx III GTO Explore R69 comes in 4 sizes, that range from 158 cm – 200 cm (5.18 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
