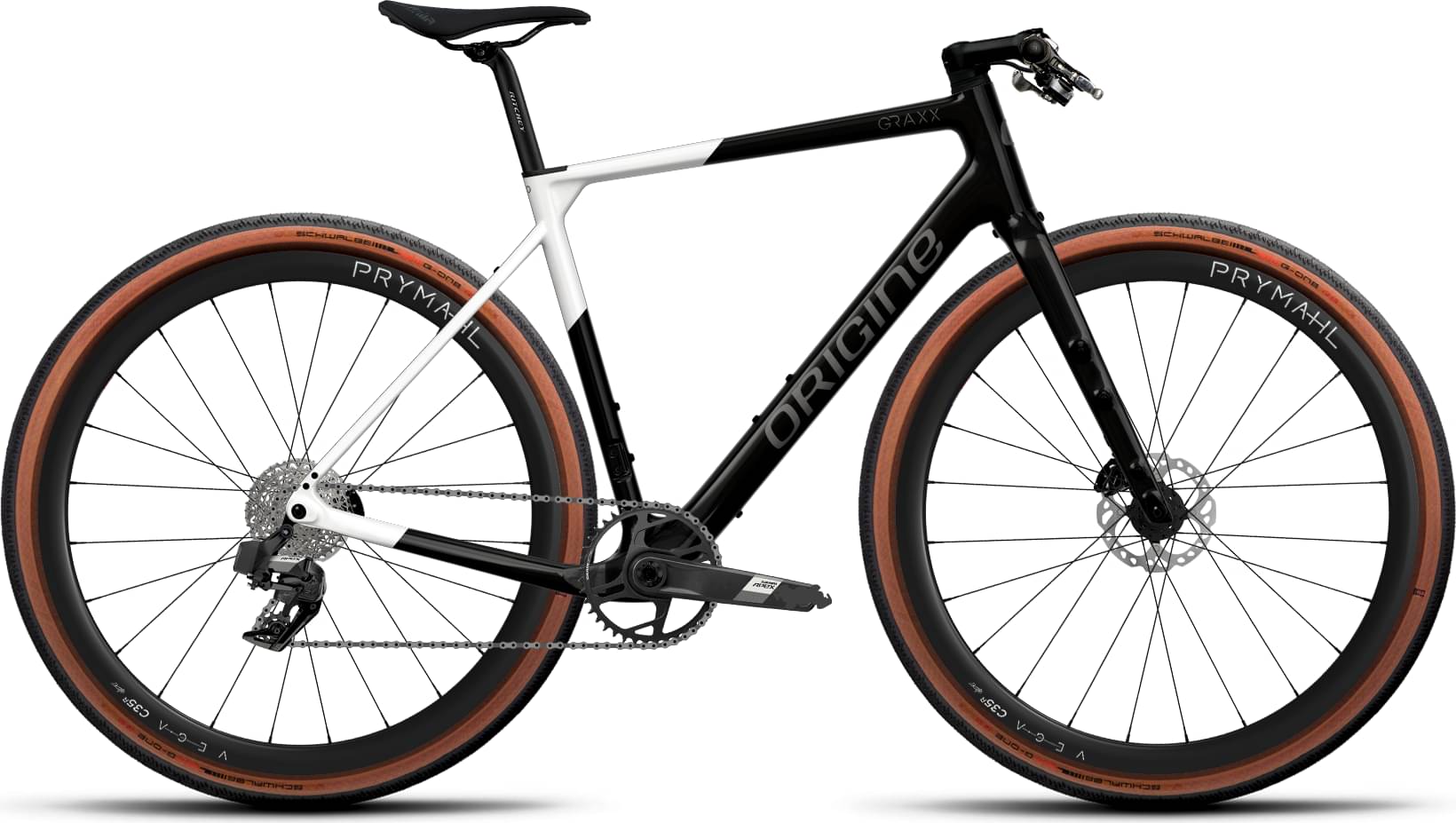

origine Graxx III GTO Flatbar C68 2023
2023 Road
Estimate price |
4,782$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Apex XPLR -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx III GTO Flatbar
Suspension Fork
OGV III in Disc 12x100
Drivetrain
Rear Derailleur
Apex XPLR eTap AXS 1x12v Disc GII
Cassette
Apex 12v AXS XPLR 11-44
Crank
Apex 12v 40 bs
Pedals
Without pedals
Wheels
Rims
Vega C35 R Wide
Tires
G-One RS Evo TLE 40 Tubeless
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
TK-278A
Handlebar
MTN 2x WCS 580
Grips
Truegrip X WCS Locking
Seat
Saddle
Novus Boost Evo
Seatpost
1B WCS 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 604 mm | 617 mm | 626 mm | 642 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 65 mm | 61 mm | 61 mm |
| Stack | 571 mm | 592 mm | 618 mm | 637 mm |
| Reach | 385.11 mm | 394.35 mm | 401.75 mm | 411.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1030 mm | 1043 mm | 1052 mm | 1068 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm | 186 cm |
| Rider Max Height | 171 cm | 179 cm | 189 cm | 200 cm |
Model Overview
Graxx III GTO Flatbar C68 completes the Origine Graxx model. 63 bikes variations carry this model name so far. You can easily view all of the Origine Graxx bikes models from 2023, here.
Model range prices
The most economical model, the Origine Graxx III GTO Flatbar R25 2023 has a starting price of 2302$. Origine Graxx III GTR Explore C89 2023 on the other hand is the most expensive at 7529$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 4427$. Comparing this to the average Gravel bike price, we see that the price is 79.81% higher.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Graxx III GTO Flatbar C68 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Graxx III GTO Flatbar C68 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 200 cm (5.18 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
