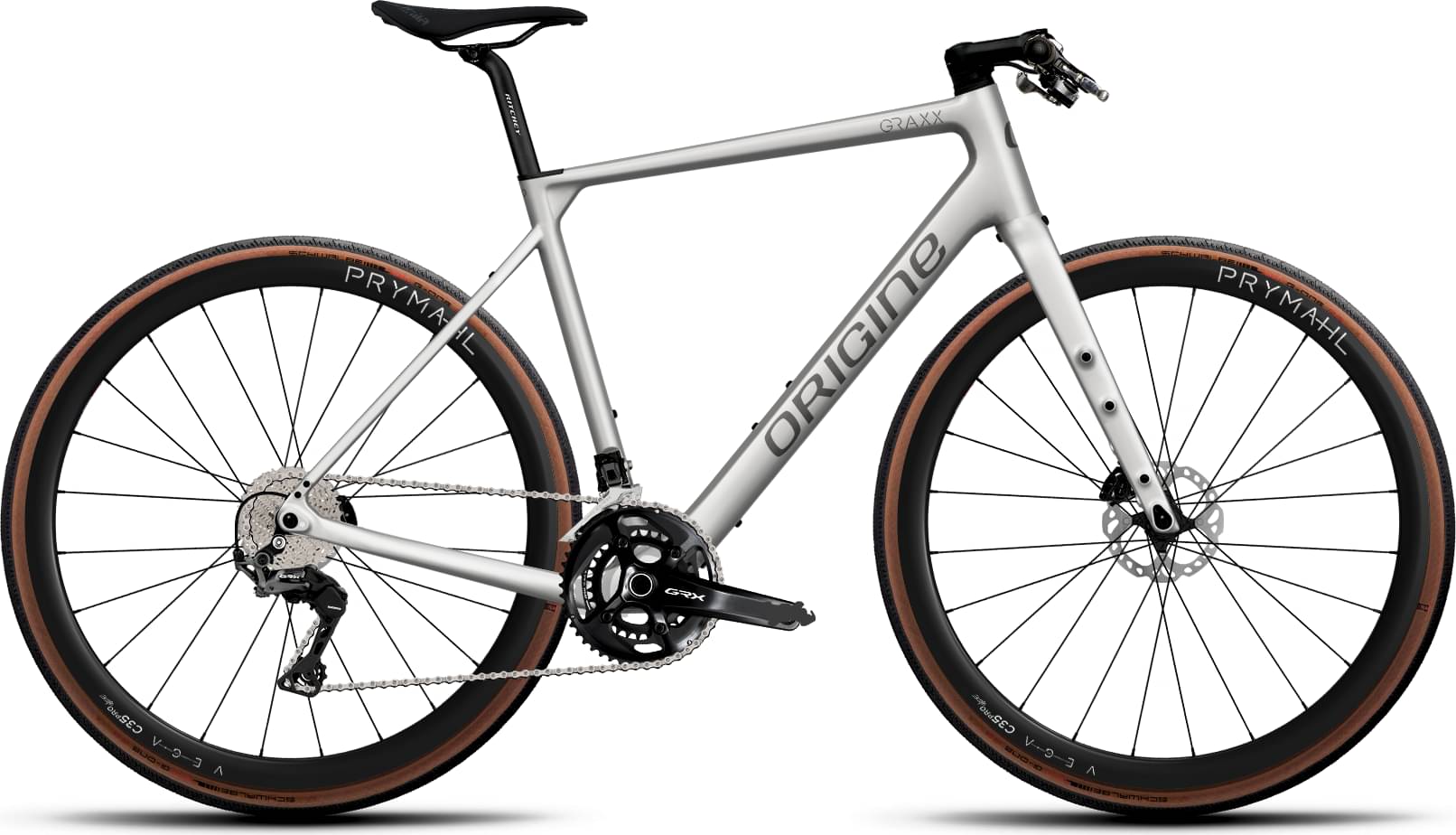

origine Graxx III GTO Flatbar R69 2023
2023 Road
Estimate price |
4,803$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx III GTO Flatbar
Suspension Fork
OGV III in Disc 12x100
Drivetrain
Rear Derailleur
GRX 800 2x11s Flatbar
Cassette
Ultegra R8000 11-32
Crank
GRX 810 48/31 BS
Pedals
Without pedals
Wheels
Rims
Vega C35 Pro Wide
Tires
G-One RS Evo TLE 35 Tubeless
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
TK-278A
Handlebar
MTN 2x WCS 580
Grips
Truegrip X WCS Locking
Seat
Saddle
Novus Boost Evo
Seatpost
1B WCS Carbon 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 604 mm | 617 mm | 626 mm | 642 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 65 mm | 61 mm | 61 mm |
| Stack | 571 mm | 592 mm | 618 mm | 637 mm |
| Reach | 385.11 mm | 394.35 mm | 401.75 mm | 411.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1030 mm | 1043 mm | 1052 mm | 1068 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm | 186 cm |
| Rider Max Height | 171 cm | 179 cm | 189 cm | 200 cm |
About this model
Graxx III GTO Flatbar R69 is an Origine Graxx model. Origine released 63 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Origine Graxx III GTO Flatbar R25 2023 has a starting price of 2302$. Origine Graxx III GTR Explore C89 2023 on the other hand is the most expensive at 7529$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 4447$. Comparing the average cost of a Gravel bike to this one, you will see that Graxx III GTO Flatbar R69 price is 80.63% higher.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Graxx III GTO Flatbar R69 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Origine Graxx III GTO Flatbar R69 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 200 cm (5.18 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
